In a rapidly evolving workplace, providing flexibility to customers who work in an increasingly visual environment is key. With UTEPO hybrid dock station, you can deploy a single solution that meets the varied needs of people working from home, the office, or at shared desk setups. UPD3303-PDD-PQ65 is a PoE++ to USB-C Docking Station, which is fully compatible with USB Type-C and Type-A laptops and mobile devices. Combining with PoE features (support 90W PoE++ input), it transmits both network and power via a single cable, reducing wiring and offer a safe low voltage by building a small desktop digital base station. And it makes the desktop neater, internet connection and charging easier.
The docking station enriches the Ethernet port to extra two quick-charge USB-C ports (one port supports a gigabit network) and one USB-A port, thus, you can charge your devices when using them, meanwhile, enjoying a stable and high interference-resistant wired network connection, which makes it ideal for entertainment, video conference, home office, smart education, etc.

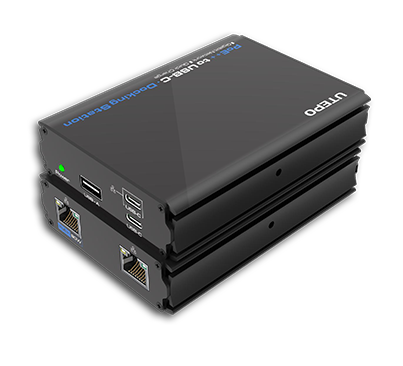

UTEPO PoE++ to USB-C Docking Station
Port Description
Equipped with 1*Gigabit RJ-45 port (90W PoE++ input), 1*Gigabit RJ-45 port (Output), 2*USB-C ports, 1*USB-A port. It can connect to multiple network devices such as mobile phones, computers and tablets at the same time, plug and play.

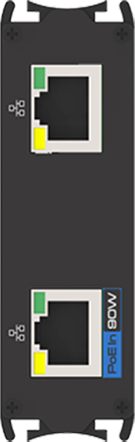

1*Gigabit RJ-45 port
Network output
1*Gigabit
RJ-45 port
90W PoE++ input

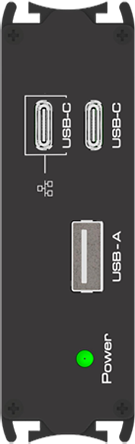

1*USB-C port
Support quick charge
1*USB-C port
Support Gigabit network
& quick charge
1*USB-A 2.0 port
Support quick charge

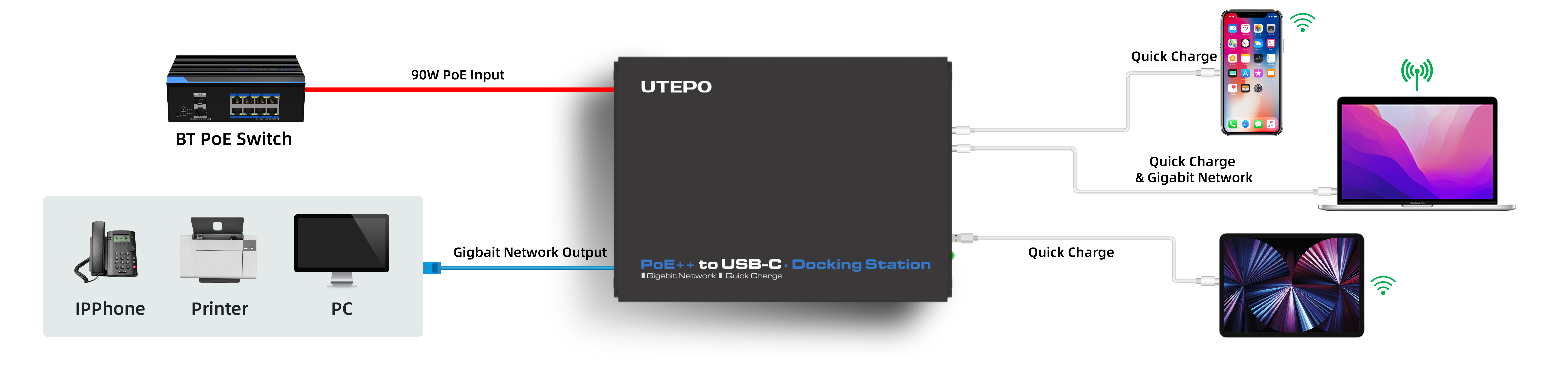

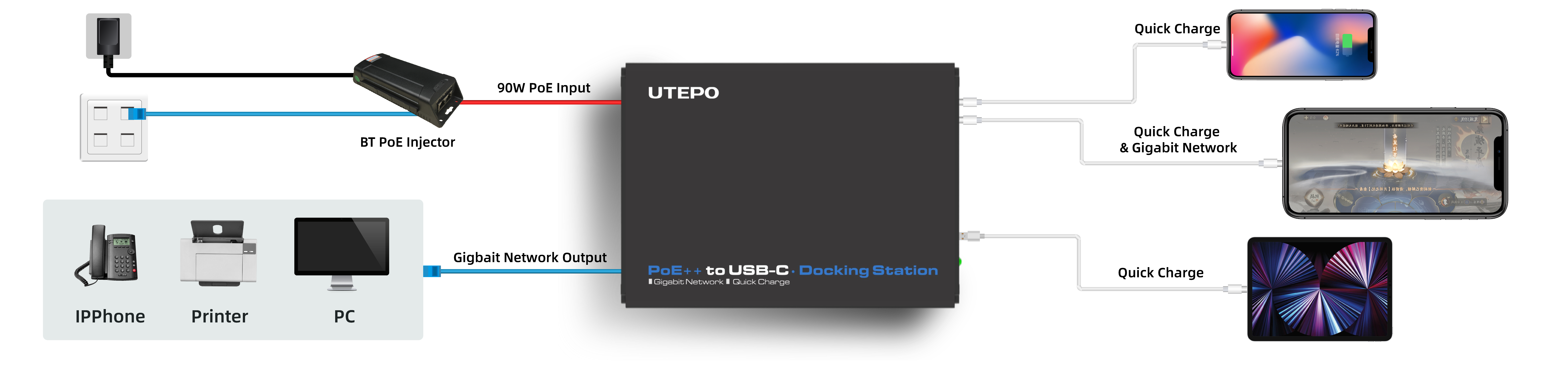

How to Use UTEPO PoE++ to USB-C Docking Station
Powered by BT PoE Injector
Powered by BT PoE Switch
* The UTEPO PoE++ to USB-C Docking Station must be used with BT PoE injectors or BT PoE switches.
* Without PoE++ input, UTEPO PoE++ to USB-C Docking Station cannot provide charging function, but can provide network transmission function of network port to USB-C port.
Technical Advantages
Integrated the latest PoE technology, it can provide low-carbon, secure, stable and reliable power supply for multiple smart devices at the same time without additional equipment. It also can be controlled and managed by specific devices, such as managed PoE switches. In addition, UTEPO PoE++ to USB-C Docking Station is compatible with USB PD3.0 PPS, QC3.0 and other protocols, providing users with a convenient and efficient charging experience.
Application

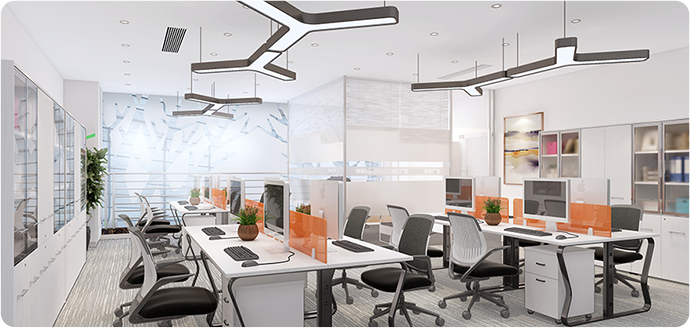

Office
Catering
Live Stream
Gaming
Dimension

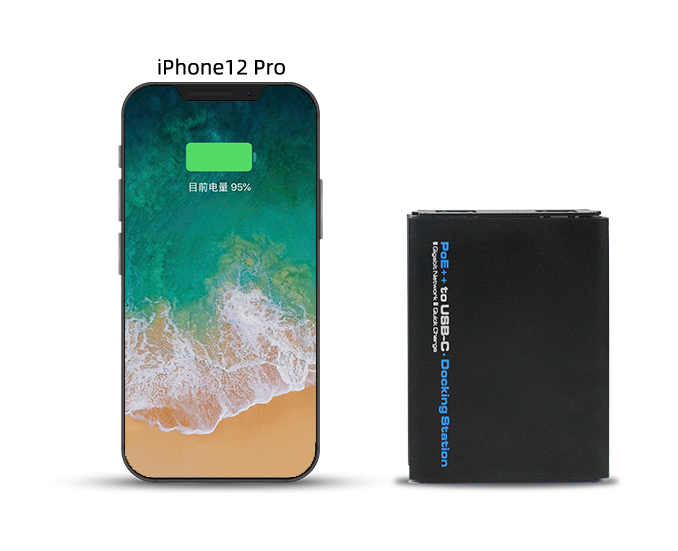

Height: 114mm Width: 82mm Depth: 25mm
Specification
UTEPO PoE++ to USB-C Docking Station
UPD3303-PDD-PQ65
Provide rich interfaces
Input port: 1*10/100/1000Mbps PoE++ RJ-45 port (Cat5e or above)
Output port: 1*10/100/1000Mbps RJ-45 port (Cat5e or above)
1*USB-C (Fast charging + 10/100/1000Mbps network)
1*USB-C (Fast charging)
1*USB-A (Fast charging)
Compatible with IEEE 802.3bt
Compatible with standard fast charging protocols USB PD3.0 PPS, QC3.0, etc.
Total charging power: 65W
