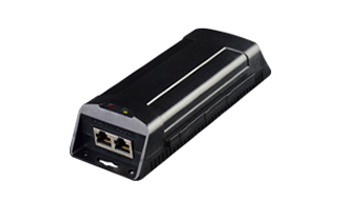

This is a single-port PoE injector with one Ethernet port, one PoE output port, and one AC input power port. It supports end-span PoE and the output power consumption is up to 60W; It features:10/100M/1000Mbps network,100m transmission distance,6KV lightning protection, industrial-level chip, and patent alert. it's an excellent choice for power supply and network transmission on PTZ cameras, all-in-one PC, digital display system.
|
Item |
Description |
|
|
Interface |
Input Voltage |
AC100V~AC240V |
|
Data Input |
1×RJ45 |
|
|
PoE output |
1×RJ45 |
|
|
PoE |
PoE Power Method |
End-span / Mid-span |
|
PoE Power Output |
DC 54V/60 watts |
|
|
Output Ripple |
＜5% |
|
|
Power Pin Assignment |
Pair1:1/2(+),3/6(-) Pair2:4/5(-),7/8(+) |
|
|
Ethernet Port |
Communication Port |
1×RJ45 Input |
|
Transmission Rate |
10/100/1000Mbps |
|
|
Transmission Medium |
Cat5/5e/6 Cable |
|
|
Distance |
100m (Max.) |
|
|
Status |
Power LED |
1 (Red) |
|
PoE LED |
1 (Orange) |
|
|
Protection |
Surge |
PoE Power: 1kV(Differential Mode), 2kV(Common Mode)1.2/50us，8/20us |
|
Ethernet: 2kV(Differential Mode), 6kV(Common Mode)10/7000us |
||
|
ESD |
1a Contact Discharge Level 3 |
|
|
1b Air Discharge Level 3 |
||
|
Per: IEC61000-4-2 |
||
|
Environment |
Working Temperature |
-10℃~55℃ |
|
Storage Temperature |
-40℃~85℃ |
|
|
Humidity(Non-condensing) |
0~90% |
|
|
Mechanics |
Dimension(LxWxH) |
160mm×64mm×60mm |
|
Material |
ABS Plastics |
|
|
Color |
Black |
|
|
Weight |
200g |
|
.jpg "UTEPO, poe injector")
.jpg "poe injector")
|
Designation |
Quantity |
|
PoE Injector |
1pc |
|
AC Power Cable |
1pc |
|
Power Buckle |
1pc |
|
User Manual |
1pc |
