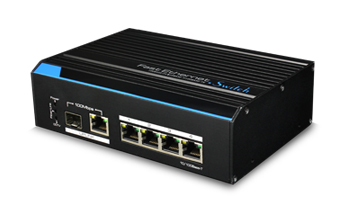

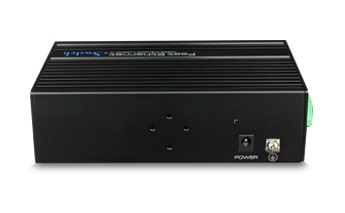

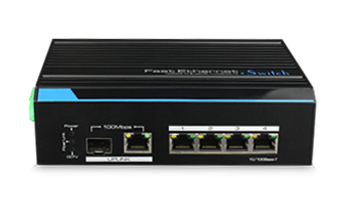

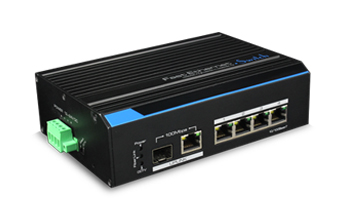

 Industrial 4 Ports Fast Ethernet Switch

Industrial 4 Ports Fast Ethernet Switch

UTP7204E-A1
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video

The un-managed industrial ethernet switch provides one uplink ethernet port and one uplink optical port (100Mbps),four 100Mbps downlink ethernet ports. This product is designed for high definition IP camera network access, which supports one key CCTV model, can achieve VLAN, restrain the Network storm, protect the information security, prevent the virus spread and Ethernet attack; it also integrates optical interface to achieve the perfect performance which blend with fiber optical transceivers and network switches, to solve the problem of long-distance transmission. The product could be used in network security video surveillance, network project etc.

Provide four10/100Mbps ethernet ports and one uplink ethernet port and one uplink optical port (100Mbps) ;

and uplink optical port reserves SFP port for users to select SFP fiber modules of different performance to solve

long distance transmission issue;

Ethernet port can reach maximum transmission distance up to 150m, breaking the 100m limit;

One key CCTV ; 1~4 downlink ports can only communicate with uplink ports; the furthest transmission distance

could reach 250m;

Redundant power design, support Hot Backup Power;

Industrial products, fan-free heat folds metal design;

Excellent circuit for isolation protection, Anti-thunder ability up to 6KV;

Fast installation , easy operation, convenient for wall-hung, din rail and desktop installation.




Model

UTP7204E-A1

Downstream Ports

4* 10/100Base-TX

Uplink Ports

1*100Mbps SFP Port and 1*10/100Base-TX

Network Standard

IEEE802.3 IEEE802.3uEEE802.3 X

Switch Capacity

1.5Gbps

Throughput

0.9Mpps

Switch Processing Scheme

Store and Forward

Memory Buffer

512k

MAC Table

2K

Lightning protection

6KV    ExecuteIEC61000-4-5

ESD

6KV     Contact discharge

8KV       Air discharge

ExecuteIEC61000-4-2

Power Supply

DC 12V~24V

Power Dissipation

5W

Work temperature

-40~75

Storage temperature

-40~85

Humidity(Non-condensin)

5%-95%

DimensionL×W×H

159mm×110mm×46mm

Weight

530g

Regulator

CEFCCROHS



Designation

Quantity

UTP7204E-A1

1

Power  Adapter

1

Hanger

2

Guide hangers

1

User Manual

1
