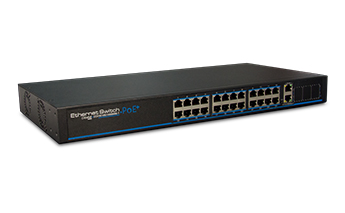

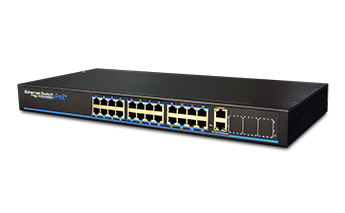

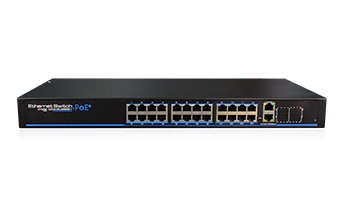

 24 Ports PoE Fast Managed Ethernet Switch

24 Ports PoE Fast Managed Ethernet Switch

UTP3-SW24-TP420
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video

This item is a 24-port managed PoE Ethernet switch, which provides 24*100Mbps downlink PoE Ethernet ports, supports IEEE802.3 af/at and 2*1000Mbps uplink Ethernet ports. It supports Layer 2 network management and PoE management


Model Number

UTP3-SW24-TP420

Downstream Ports

24* 10/100BASE-TX( PoE)

Uplink Ports

2*10/100/1000BASE-T

Network Standard

IEEE802.3 IEEE802.3uIEEE802.3abIEEE802.3X IEEE 802.1Q    IEEE 802.1p   IEEE 802.3ad IEEE 802.1DIEEE 802.1X

Switch Capacity

8.8Gbps

Throughput

6.5Mpps

Switch Processing Scheme

Store and Forward

Memory Buffer

12M

MAC Table

16K

PoE Standard

802.3af/at

PsE  Type

End-span

Power Pin Assignment

1/2(+)3/6(-)

PoE Power Output

54V DC , 30 watts max

PoE Budge

390 watts max

Lightning protection

6KV    ExecuteIEC61000-4-5

ESD

6KV     Contact discharge

8KV       Air discharge

ExecuteIEC61000-4-2

Power Supply

100~240V AC50/60Hz

Power Dissipation

420W(Including PoE)

Work temperature

-10~55

Storage temperature

-40~85

Humidity(Non-condensin)

5%-95%

DimensionL×W×H

442mm×207mm×44.5mm

Weight

2.69kg

Regulator

CEFCCROHS

Layer 2 Software Features

Port Management

Support port enabling and disabling

Support port speed settings

Support port full-duplex mode

Support IEEE802.3x flow control

Support port name modification

VLAN

Support of 4K VLAN

supports 802.1Q VLAN protocol

Support VLAN based on port

Quality of Service

Support QoS Congestion Management

Support 8 priority queues

Queue scheduling: SP, WRR, SP+WRR

Support 802.1p CoS/DSCP priority

Multicast Management

Support SNMPV1 / V2 / V3 protocols

Support IGMP Snooping

POE management

Support Total Power Control

Support PoE On Off

Support single-port 30W outputOutput port and priority

Security Features

Supports IP, MAC, port, VLAN binding combinations

Support MAC address auto-learning, aging and filtration

Support port isolation, port speed limit

Support RSTP

Support 5 groups of link aggregation

Support 802.1X

System Management

Web-based GUI and CLI management

Support FTP / TFTP / HTTP load upgrade

Support traffic statistics

Support MAC address table query

Support IP address, DNS server modifications

Support user name and password modification

Support for history, log management

Support System Configuration Backup

Support to recover the default factory settings on reboot




Designation

Quantity

UTP3-SW24-TP420

1

AC Power Line

1

Mounting brackets

1

User Manual

1
