 PoE Ethernet Extender

PoE Ethernet Extender

UTP3-VEPOC01
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video

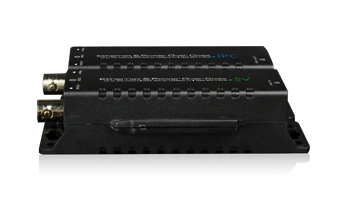

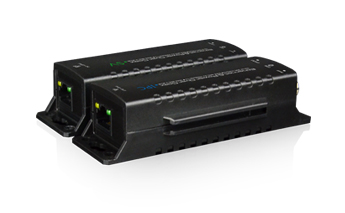

The product is an Ethernet extender which can transfer Ethernet signal and power by  Ethernet cable or  coaxial cable. It consists of SV and IPC Pieces. This product is specially designed to meet  the power supply in the long-distance HD IP transmission and  accord with IEEE 802.3af and IEEE 802.3at standard.  This device can transfer the Ethernet signal and power up to 300m through the coaxial cable, But network latency is less than 20us.The structure designing of built-in splicing slot on both sides and  magnetic attraction as well as hanger on the bottom enables multiple installation methods of splicing,  adsorption , and wall-mounting.So it is a cost-effective choice for the HD network surveillance system, transmission and application of the IOT, as well as upgrading and renovating  projects.


Model

UTP3-VEPOC01

Network port

1* 10/100Base-TX

Coaxial Port

1*BNC

Transmission Media

RG 59 or above coaxial cable & Cat5e/6

Transmission distance

Ethernet cable:0~100m

Coaxial cable0-300m(Recommend)

Network standard

IEEE802.3 IEEE802.3u

Delay

20us

PoE Standard

802.3af/at(PSE/PD)

PsE  Type

End-span and Mid-span

Power Pin Assignment

1/2(+),3/6(-) 4/5(-),7/8(+)

PoE Power Output

30W

Lightning protection

2KV    ExecuteIEC61000-4-5

ESD

6KV     Contact discharge

8KV       Air discharge

ExecuteIEC61000-4-2

Power Supply

PoE

Power Dissipation

2W

Work temperature

-10~55

Storage temperature

-40~85

Humidity(Non-condensin)

5%-95%

DimensionL×W×H

113mm×45.5mm×29mm

Weight

50g

EMC/Safety

CEFCCROHS



Designation

Quantity

UTP3-VEPOC01 (IPC Unit Device )

1

UTP3-VEPOC01 (SV Unit Device )

1

User Manual

1
