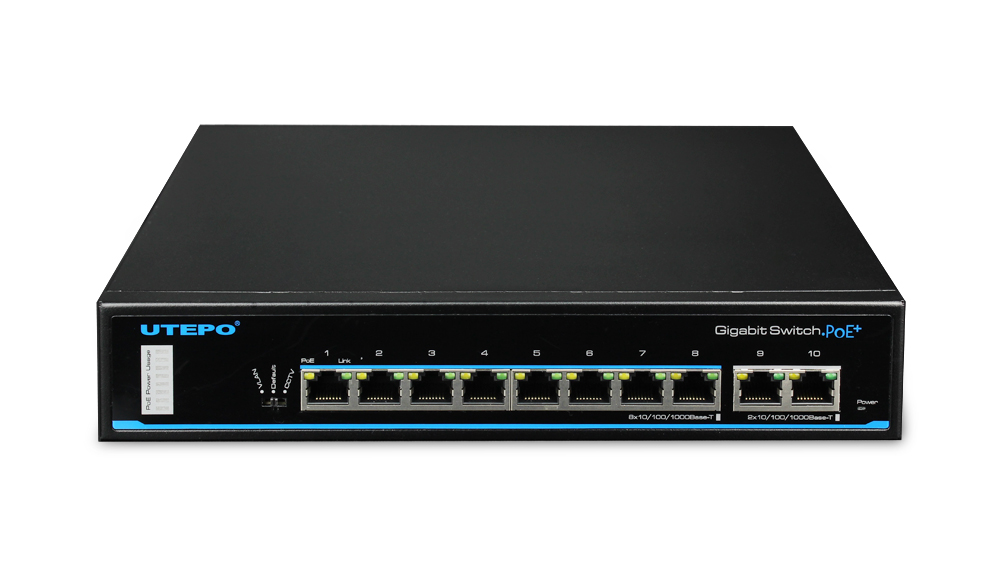

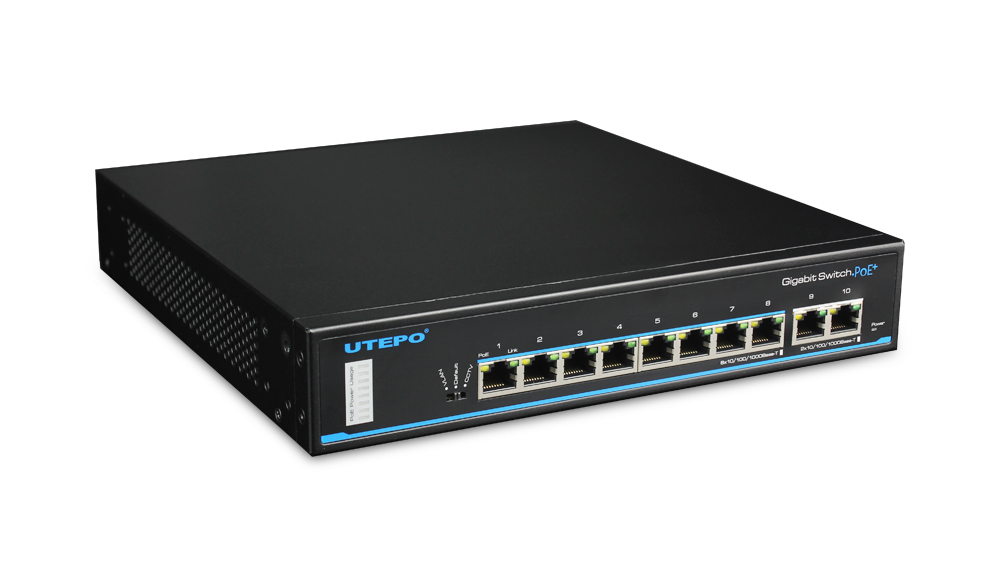

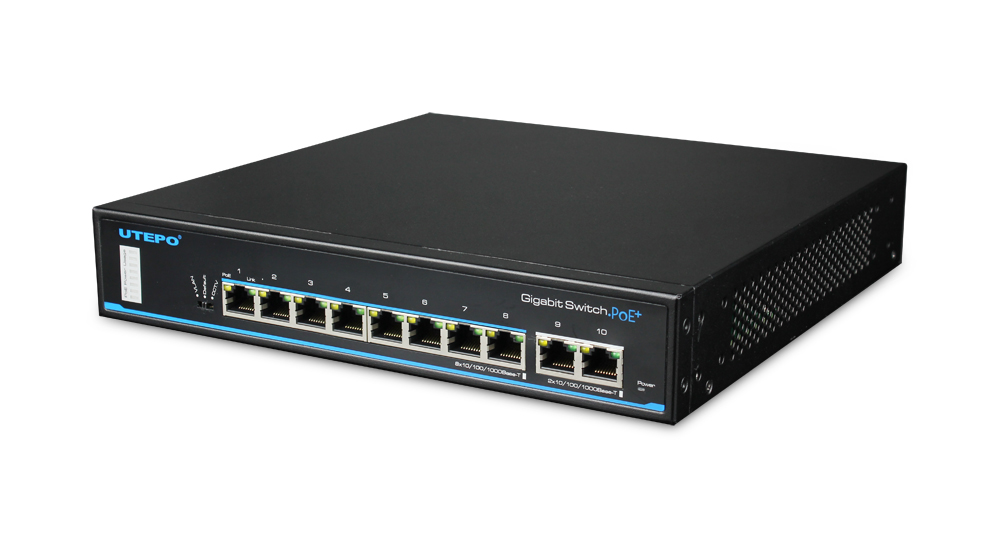

 8 Ports Gigabit PoE Ethernet Switch

8 Ports Gigabit PoE Ethernet Switch

UTP3-GSW0802T-POE
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video

8 Ports Gigabit PoE Ethernet Switch is an unmanaged Ethernet switch designed for Gigabit Ethernet access and PoE applications. It provides eight Gigabit downlink ports, and two Gigabit uplink Ethernet port. The eight downlink ports support 802.3af/at standard and feature Max 30W PoE power output of single port, Max 135W of whole machine. Support three kinds of work mode (Default, VLAN, CCTV), and supports 8 LED digital tube to display machine PoE power usage. It can be widely used in security surveillance, hotels, schools, SMB engineering and other occasions.

Model

UTP3-GSW0802T-POE

Downlink Ports

8* 10/100/1000Base-T (PoE)

Uplink Ports

2x 10/100/1000Base-T Ethernet Ports

Network Standard

IEEE802.3 IEEE802.3uIEEE802.3abEEE802.3 X

Switch Capacity

20Gbps

Throughput

14Mpps

Switch Processing Scheme

Store and Forward

Memory Buffer

1M

MAC Table

4K

PoE Standard

802.3af/at(PSE)

PsE  Type

End-span

Power Pin Assignment

1/2(+)3/6(-)

PoE Power Output

54V DC , 30 watts max

PoE Budge

135 watts max

PoE  power display

Support 8 LED digital tube to display machine PoE power usage

One-key Smart

Default: All ports are free to communicate

VLAN: The downs ports are isolated from each other

CCTV: Optimize flow control for port isolation

Lightning protection

6KV Execute: IEC61000-4-5

ESD

6KV     Contact discharge

8KV       Air discharge

ExecuteIEC61000-4-2

Power Supply

AC 110V~240V

Power Dissipation

10W

Work temperature

-10~45

Storage temperature

-40~85

Humidity(Non-condensin)

5%-95%

DimensionL×W×H

245mm×245mm×44mm

Weight

1Kg

Regulator

CEFCCROHS

Item

Name

Quantity

Unit

1

UTP3-GSW0802T-POE

1

pc

2

AC Power Cable

1

pc

3

Accessory

1

pc

4

User manual

1

pc
