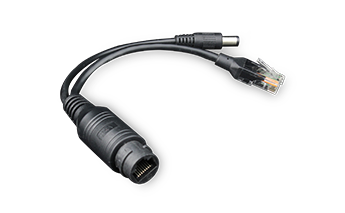

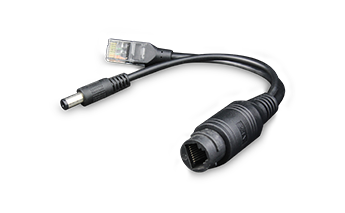

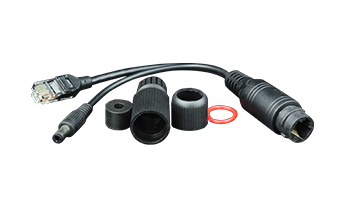

PoE Splitter is compliant with IEEE802.3af standard, which can split data and power from PoE signal. It perfect matches camera enclosure and can split Ethernet and power from ethernet cable for these device which can not support PoE. It can work with standard PoE Switch or PSE device, compatible with mid-span and end-span, output 12V/1A power by DC terminal, It is widely used in security surveillance and network project.
Advantage
√ 1*100Mbps PoE powered port,1*DC2.1 powered male, and 1*RJ45 port
√ Transmission distance up to 100 meters
√ Plug and play without management
|
Item |
Description |
|
|
PoE |
Protocol |
IEEE802.3af |
|
Input |
DC 24V-36V |
|
|
Output |
DC 12V, ≤13W |
|
|
Ethernet |
Port |
1×RJ45 |
|
Transmission Speed |
10/100Mbps |
|
|
Transmission Medium |
Cat5/5e/6 Standard Network Cable |
|
|
Status |
LED Indicator |
Green |
|
Mechanical |
Dimension (L) |
216mm |
|
Material |
Plastic |
|
|
Designation |
Quantity |
|
24V to 12V PoE SPLITTER |
1pcs/Bag |
