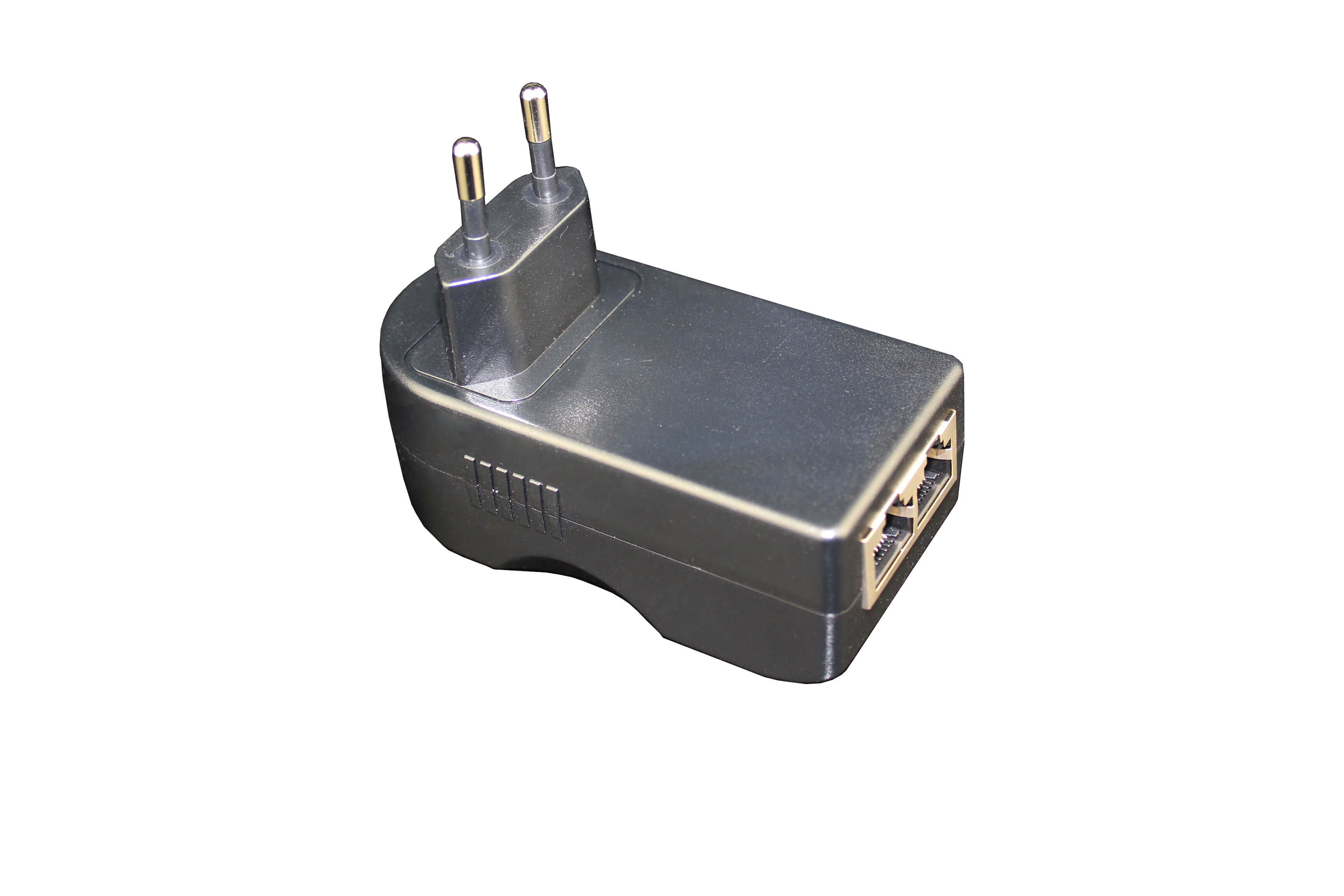

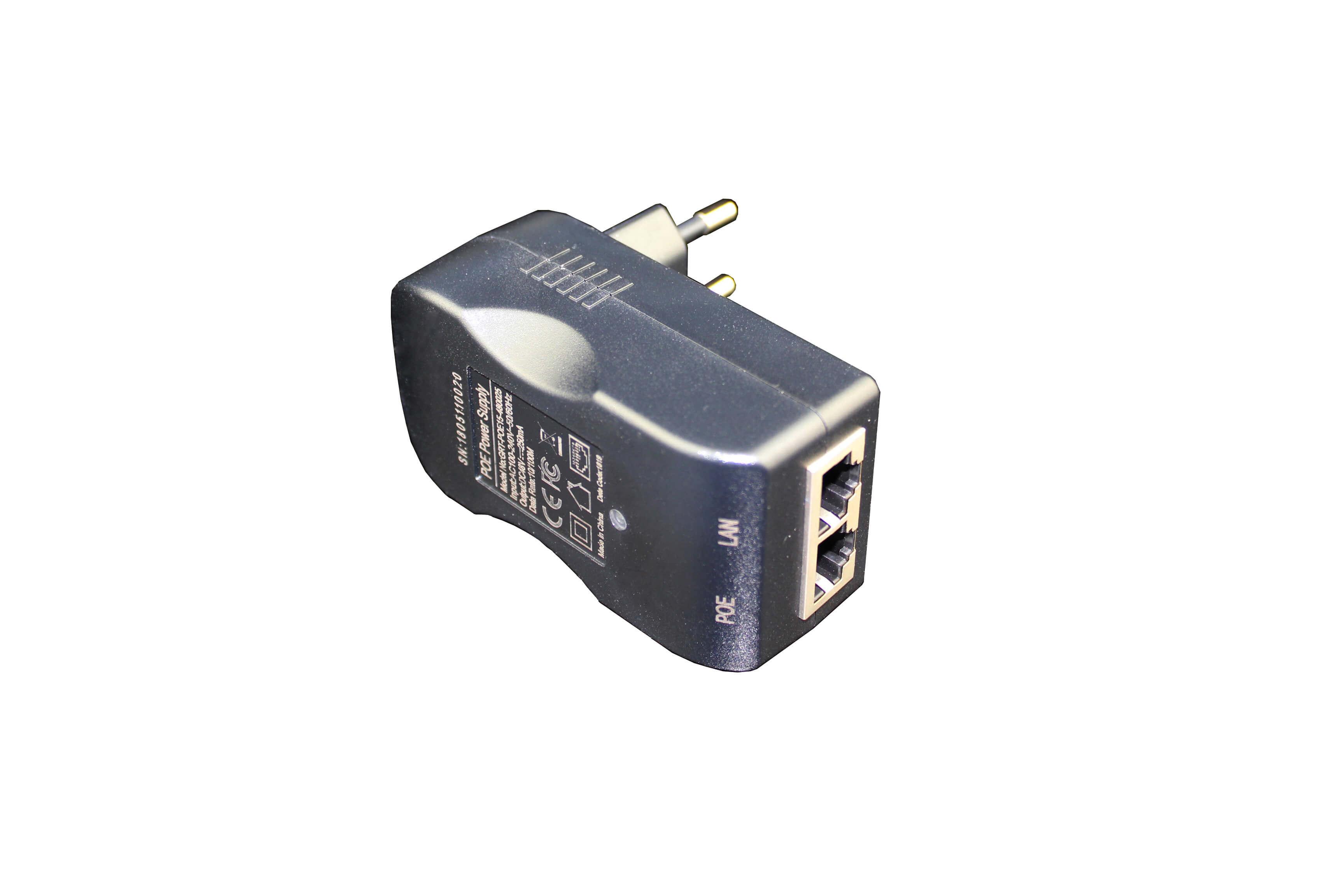

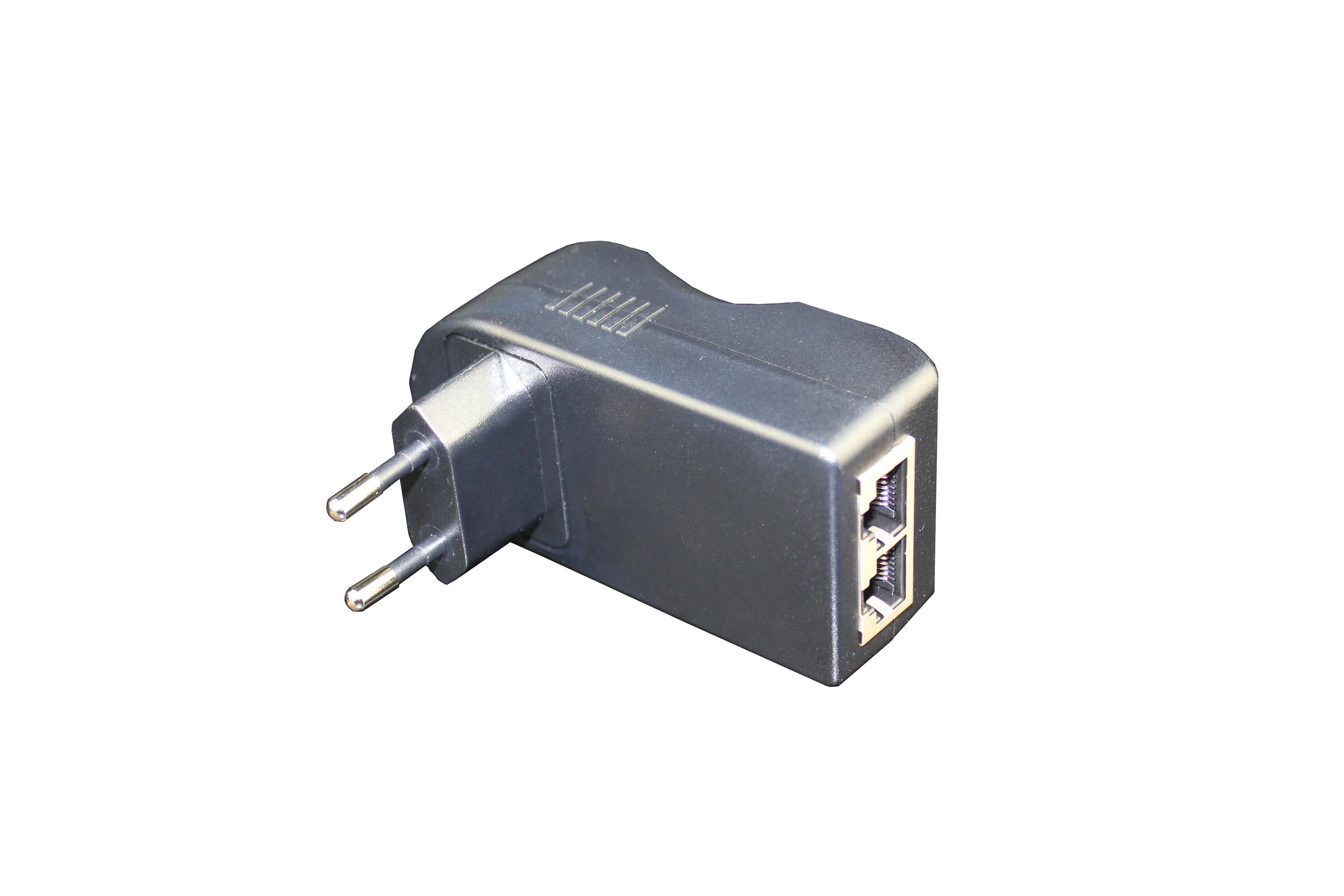

PI-48V Single-port PoE injector is designed for indoor use, it could keep operation under voltage input of 100-240VAC. And it is connected to the network terminal equipment through Cat.5 or above cables. Providing 1*PoE input port + 1*PoE output port, it could supply data and power to routers, switches, wireless AP, IP telephones, industrial network terminals and IP Cameras etc. In addition, it solves the problem of supplying power to remote places, improves system reliability and simplifies the installation of project.
ADVANTAGES
• Provide 48V/12W PoE power.
• Protection against over input voltage, over output voltage & over output current.
• Transmission distance is up to 100 meters.
• Wall-mounted design, easy to installation, plug and play.
|
Item |
Description |
|
|
Interface |
Input Voltage |
AC100V-AC240V |
|
Data Input |
1*RJ45 |
|
|
PoE Output |
1*RJ45 |
|
|
PoE |
Output Voltage |
DC48V |
|
Output Current |
250mA |
|
|
Network Interface |
Ethernet Interface |
1*RJ45 |
|
Transmission Rate |
10/100Mbps |
|
|
Transmission Media |
Cat5/5e/6 |
|
|
Transmission Distance |
100m (Max) |
|
|
LED Indicator |
Power Indicator |
Green |
|
PoE Indicator |
Yellow |
|
|
Operation Environment |
Operating Temperature |
0℃~40℃ |
|
Storage Temperature |
-40℃~70℃ |
|
|
Operating Humidity |
5~90% |
|
|
Storage Humidity |
5~95% |
|
|
Mechanics |
Dimension(L*W*H) |
90*46*34mm |
|
Material |
ABS |
|
|
Color |
Black |
|
|
Designation |
Quantity |
|
48V PoE Injector |
1pc |
