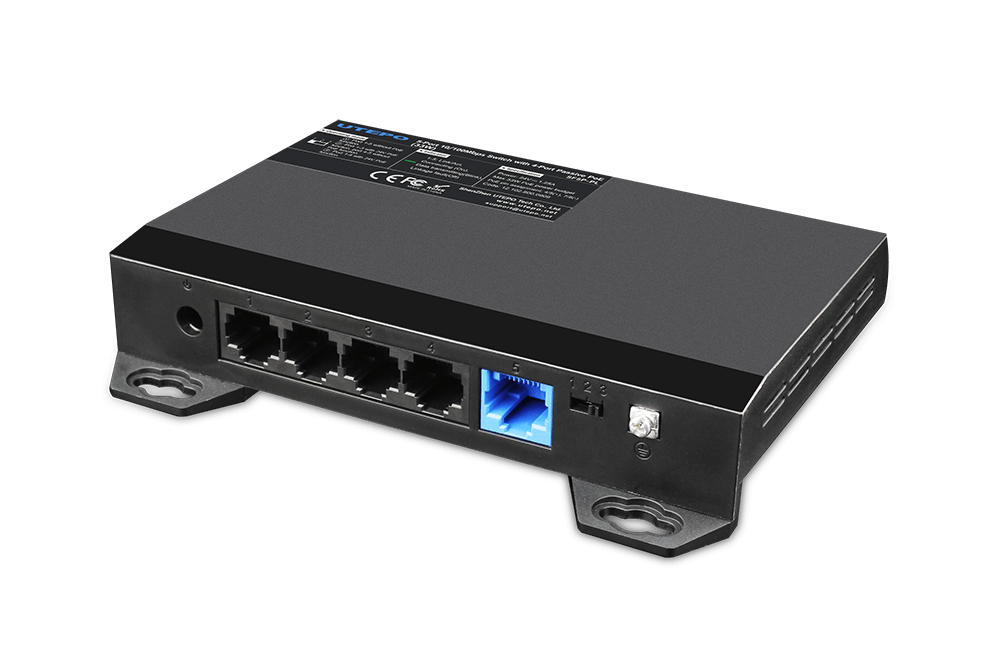

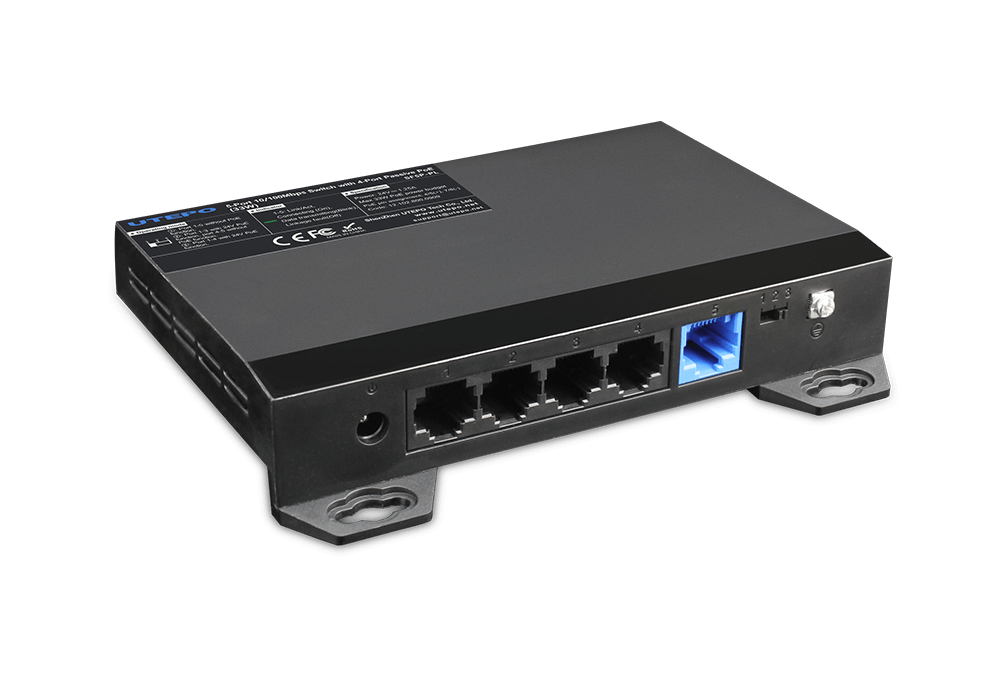

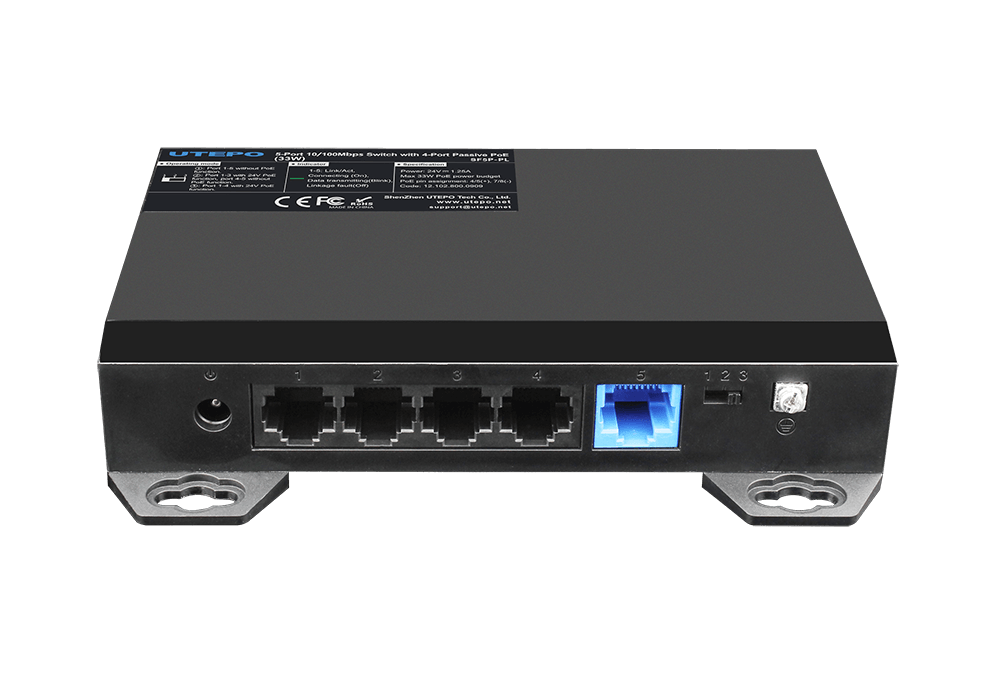

 5-Port 10/100Mbps Switch with 4-Port PoE (37W)

5-Port 10/100Mbps Switch with 4-Port PoE (37W)

SF5P-L
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video

SF5P-L, 5-Port 100M Unmanaged PoE Switch, provides 4*10/100Base-TX Ethernet Ports (PoE) + 1*10/100Base-TX Uplink Ethernet Port. The Max PoE power of single port is 30W, the total PoE budget is up to 37W. The UTEPO SF5P-L supports 3 working modes (Mode 2: Port 1-3 are isolated respectively, but can communicate with Port 4-5. Mode 3: Port 1-4, 10M, with long transmission distance of 250 meters.) And it is widely used in security video monitoring and network engineering etc.

4*10/100Base-TX Ethernet Ports (PoE) + 1*10/100Base-TX Uplink Ethernet Port.

IEEE802.3af/at. Max PoE power of single port is 30W. Total PoE power budget is up to 37W.

Support 3 working modes. Mode 2: Port 1-3 are isolated respectively, but can communicate with Port 4-5. Mode 3: Port 1-4, 10M, with long transmission distance of 250 meters.

Support 6KV surge immunity, 8KV ESD immunity and anti-interference function.

Plug and play, no more configuration needed.

Model

SF5P-L

Downlink Port

4*10/100Base-TX Ethernet Ports (PoE)

Uplink Port

1*10/100Base-T Ethernet Port

Network Standard

IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3af/at

Switch Fabric

1Gbps

Packet Forwarding Rate

0.74Mpps

Interface Buffer

448 Kbits

MAC Address

1K

Working Mode

Mode 1: All port can be communicated freely.

Mode 2: Port 1-3 are isolated respectively, but can communicate with Port 4-5.

Mode 3: Port 1-4, 10M, with long transmission distance of 250 meters.

PoE Standard

802.3af/at(PSE)

PoE Power PinAssignment

1/2(+), 3/6(-)

PoE Power Output

PoE power output for single port ≤30W (52V DC); Total PoE power budget ≤37W

Surge Immunity

6KV, IEC61000-4-5

ESD Immunity

Contact discharge 6KV, air discharge 8KV. IEC61000-4-2

Input Power

DC 52V0.7ma

Operating Temperature

0℃~40℃

Storage Temperature

-40℃~85℃

Operating Humidity

5%-95% (Non-condensing)

Dimension (L*W*H)

140*104*28mm

Certification

CE, FCC, RoHS



ITEM

QTY

Ethernet Switch

1 pc

Power Adaptor

1 pc

User Manual

1 pc
