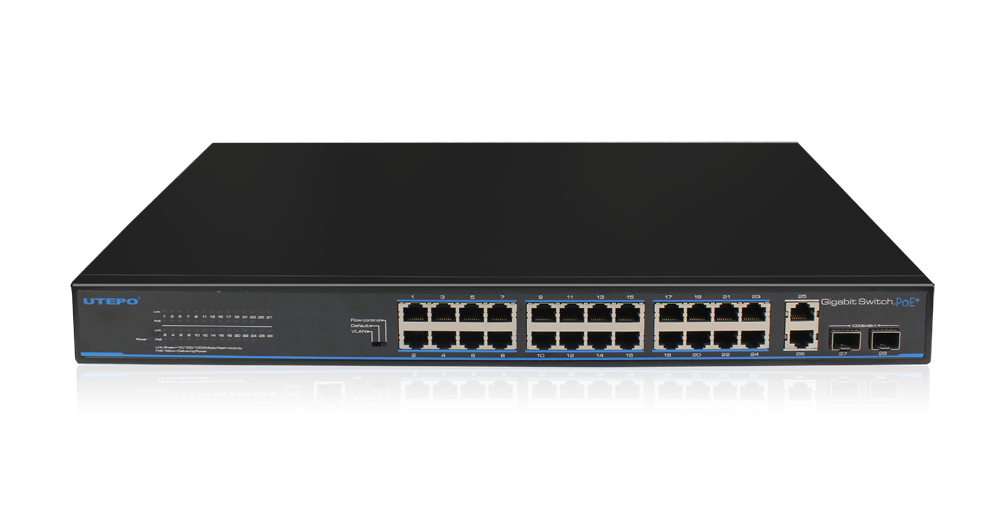

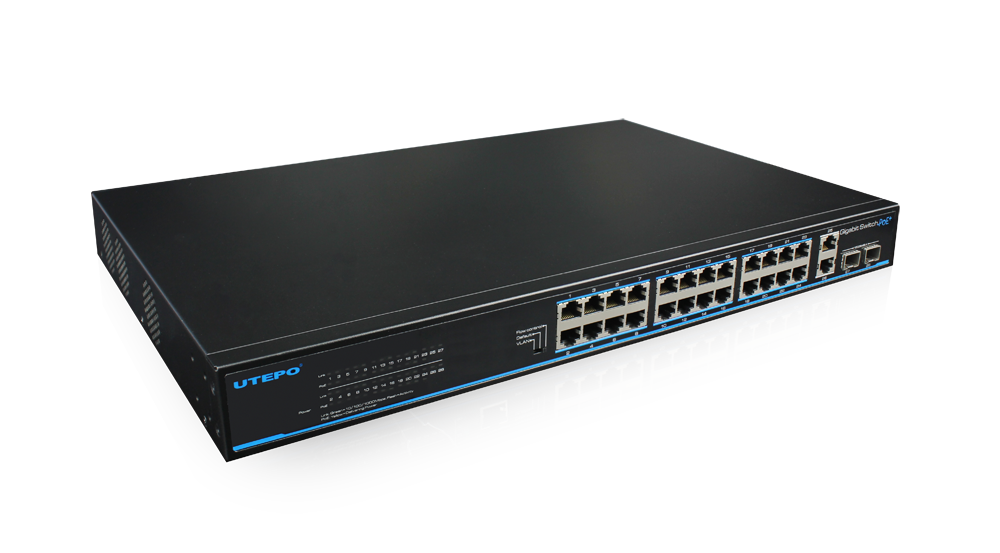

 24 Ports Gigabit PoE Switch

24 Ports Gigabit PoE Switch

UTP3-GSW2404TS-P420
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video

The 24 ports Gigabit PoE switch is an PoE switch along with 24 * 10/100/1000Base-T downlink PoE ports and 2 * 1000Base-T uplink Ethernet ports featuring 30-watt 802.3at PoE+ as well as 2 additional Gigabit port. The total PoE power budget is up to 400 watts. The device can be widely used in video security monitoring systems, network projects, etc.

Provide 16/24 x 10/100/1000Mbps downlink PoE Ethernet ports, 2x gigabit uplink Ethernet ports and 2x gigabit Fiber port;

Downlink Ethernet ports support PoE+, each port supports max. 30W output;

Accord with IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3 af/at standard;

8K MAC address,4Mb cache;

Quick installation, easy operation, convenient for wall-mounted、desktop and rack installations.

Model

UTP3-GSW1604TS-P200

UTP3-GSW2404TS-P200

UTP3-GSW204TS-P420

Downstream
Ports

16* 10/100/1000Base-T(16 Ports PoE)

24* 10/100/1000Base-T(24 Ports PoE)

Uplink Ports

2*10/100/1000Base-T and 2*1000Base-X(SFP)

Network Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X

Switch Capacity

40/56/56Gbps

Throughput

28/42/42Mpps

Switch Processing Scheme

Store and Forward

Memory Buffer

4M

MAC Table

8K

PoE Standard

802.3af/at(PSE)

PsE  Type

End-span

Power Pin Assignment

1/2(+),3/6(-)

PoE Power Output

54V DC, 30 watts max

PoE Budge

170 watts max

400 watts max

Operating mode

Default:All ports can communicate with each other

VLAN:  1. Downlink ports only communicate with uplink ports;

2. Restrain network storm under 2Mbps

Flow control:Switch flow control function is turned off, this mode is suitable for video surveillance transmission

Lightning protection

6KV Execute:IEC61000-4-5

ESD

6KV Contact discharge

8KV Air discharge

Execute: IEC61000-4-2

Power Supply

100~240V AC;50/60Hz

Power Dissipation

<200W(Including PoE)

<420W(Including PoE)

Work temperature

0℃~40℃

Storage temperature

-40℃~85℃

Humidity(Non-condensin)

5%-95%

Dimension(L×W×H)

442mm×285mm×44.5mm

Weight

3kg

Regulator

CE, FCC, ROHS

Designation

Quantity

UTP3-GSW2404TS-P420

1

AC Power Line

1

Mounting brackets

1

User Manual

1
