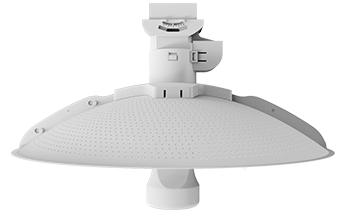

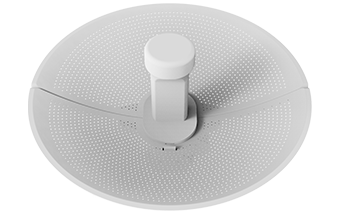

The CP5-1200 is a 5.8GHz long distance wireless transmission devices with up to 867Mbps throughput capacity, of which the transmission distance is up to 20km at a stable wireless coverage to ensure the perfect using experience of clients. Equipped with IP67 protection enclosure, featuring with anti-surge, mould proof & antiseptic, it ensures the stable operation in the harsh environment.
Advantage
√ 5GHz operating frequency band ensures less wireless interference.
√ Wireless speed up to 867Mbps, up to 20km wireless transmission distance.
√ Four operating modes, including access point, client, WDS access point, WDS client.
√ IP67 enclosure design.
√ Utrans technology optimizes data transmission.
|
Model |
CP5-1200 |
|
Main Chip |
IPQ4028 |
|
Wireless Technology |
5.8G: 1200Mbps, 802.11a/n/ac |
|
Operating Frequency |
5180~5320MHz，5745~5825MHz（Support extend of 4920~6100MHz） |
|
Antenna |
23dBi directional antenna |
|
Horizontal angle: 11 degree, vertical angle: 11 degree. |
|
|
Output Power |
27dBm |
|
Receiving Sensitivity |
-96dBm@6Mbps，-85dBm@MCS0 |
|
Transmission Rate |
11n: 300Mbps |
|
11ac: 867Mbps |
|
|
Power |
802.3 at 48V PoE+ |
|
Interface |
1*10/100/1000 Mbps auto-sensing RJ45 ports |
|
Operation Temperature |
-40℃ ~ 65℃ |
|
Storage Temperature |
-40℃ ~ 80℃ |
|
Operation Humidity |
5%~95%RH Non-condensing |
|
Dimension |
Φ372mm×241mm |
|
Weight |
0.9kg |
|
Networking Mode |
Routing / Bridge |
|
Wireless Mode |
Access point, client, WDS access point, WDS client. |
|
Security Mechanism |
IP/MAC address filtering, hidden network name |
|
Network Protocol |
TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP |
|
ACK Timing |
Support (automatically adapt to changes in transmission distance) |
|
System |
NTP, Syslog, SNMP, AC |
|
Configuration Management |
Support web configuration, AC remote configuration and SNMP management |
|
Update |
Support firmware web update |
|
Default IP: 192.168.1.36 |
|
|
Username/Password: root/admin |
|
|
Flexible Bandwidth Configuration |
10M/20M/40M/80MHz |
|
Designation |
Quantity |
|
CPE |
1 |
|
POE Power Supply |
1 |
|
Mounting Kits |
1 |
|
Cable |
1 |
|
User Manual |
1 |
