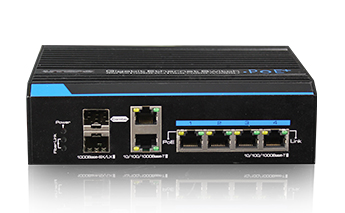

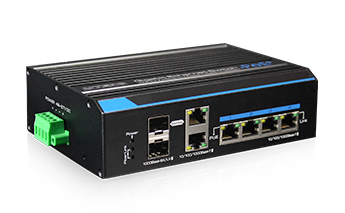

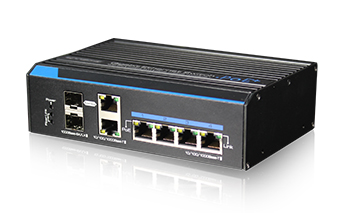

4 ports Gigabit Ethernet PoE/HPOE switch is an unmanaged PoE Ethernet switch, which provides 2 optical, 2 copper uplink ports and 4 Gigabit downlink PoE ports, where in 1 optical and 1 Ethernet ports are Combo ports. It has 1st port 60W HPoE,3 ports 30W standard PoE,use Microsemi PSE solution,the 1st HPoE port can support PTZ camera. It could be widely used in security network video surveillance, network engineering and other occasions.
ADVANTAGES
• Standard: IEEE802.3 ,IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3 af/at.
• Provide 2 optical and 2 copper uplink ports, wherein 1 optical port and 1 Ethernet port are Combo ports.
• Provide 4*10/100/1000 Mbps adaptive downlink PoE ports, port 1≤60W, 4-wire microsemi solution; port 2 to 4≤30W, 2-wire microsemi solution.
• Redundant power design, support power hot backup. Standard DC port and green terminal port, support power adapter with different connectors and power.
• Fanless wavy metal shell with heat dissipation design.
• Fast installation and easy operation, convenient for wall, din rail and desktop installation.
.jpg "4 ports poe switch")
|
Items |
UTP7204GE-HPOE(MS60) |
|
|
Power |
Power supply |
power adapter |
|
Voltage range |
DC48V~57V |
|
|
Consumption |
≤5W Self-consumption |
|
|
Network Port Parameters |
Ethernet port |
SFP optical port: 1000Mbps |
|
Copper port: 10/100/1000Mbps |
||
|
Transmission distance |
Copper port: 100m |
|
|
SFP optical port: depend on the optical module transmission performance |
||
|
Transmission medium |
Cat5e/6 standard network cable |
|
|
PoE agreement |
IEEE802.3af, IEEE802.3at agreement |
|
|
PoE ports |
Port 1≤60W, 4-wire microsemi solution |
|
|
Port 2 to 4≤30W, 2-wire microsemi solution |
||
|
Network Exchange specification |
Network standard |
IEEE802.3 ,IEEE802.3u ,IEEE802.3ab ,IEEE802.3z |
|
Switch capacity |
14Gbps |
|
|
Package forwarding |
10.4Mpps |
|
|
Switch architecture |
Store and forward |
|
|
Package data buffer |
1M |
|
|
MAC address table |
8K |
|
|
Status Indicator |
Power indicator |
1 indicate power（Red） |
|
Optical port LED indicator |
2 Fiber Link Green lights indicate fiber working status |
|
|
Uplink Ethernet port LED indicator |
RJ45 indicates network working status |
|
|
Downlink Ethernet port LED indicator |
1～4 ports with green LEDs indicate network status, yellow LEDs indicates PoE |
|
|
Protection Level |
Surge protection |
6KV, Standard:IEC61000-4-5 |
|
ESD |
Grade 4 (8KV/15KV), Standard: IEC61000-4-2 |
|
|
Environmental |
Working temperature |
-40℃~75℃ |
|
Storage temperature |
-40℃~85℃ |
|
|
Humidity (non-condensing) |
0~95% |
|
|
Mechanical |
Dimension (L*W*H) |
163mm*110mm*46.5mm |
|
Material |
Aluminum |
|
|
Color |
Black |
|
|
Weight |
530g |
|
|
MTBF |
200000 Hour |
|
.png "60W 4 ports industrial poe switch")
.png "4 ports industrial poe switch")
|
Designation |
Quantity |
|
UTP7204GE-HPOE(MS60) |
1 |
|
Power Adapter |
1 |
|
Hanger |
2 |
|
Din Rails Hanger |
1 |
|
User Manual |
1 |
