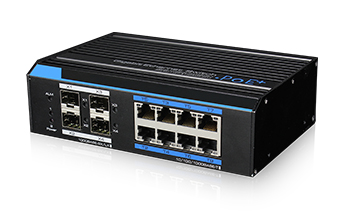

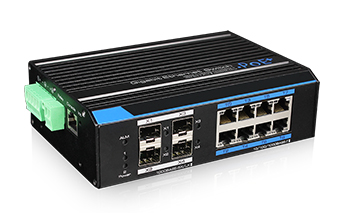

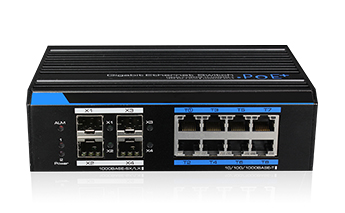

UTP7308GE-POE is 8 Ports Industrial Full Gigabit PoE Managed Switch. Provide 8* 10/100/1000Base-T RJ45 PoE ports(Microsemi PoE solution,1 port 60W,7 ports 30W), 4 * 1000BASE-X SFP ports(Uplinks). The switch provides up to 4Mbit cache, Support 4K high-definition video transmission. Besides, the 8 downlink PoE ports support IEEE802.3af/at standard. It support Web-based network management, support VLAN, QoS, RSTP, SNMP etc. network function; Working temperature 40℃～75℃, strong level of protection from lightning, anti-interference. It fully satisfies the needs of security video surveillance project.
ADVANTAGES
• Provide 8*10/100/1000Base-T RJ45 ports(PoE), 4*1000BASE-X SFP ports(Uplinks).
• Buffer reaches 4Mbit, Support 4K high-definition video transmission.
• Microsemi PoE solution: 1 port 60W HPoE，7 ports 30W PoE.
• Support Web-based network management, support VLAN, QoS, RSTP, SNMP etc. network function.
• Support One-key CCTV/LOCK/ONLINE/RING
• Support fast ring ,support 30 pcs switches Max. in a cascade system ,Self-healing in 20ms Min.
• Support relay alarm for power off, network broken, PoE off.
• 6KV surge immunity, 8KV ESD protection and anti-interference ability.
• -40℃～75℃ working temperature.
|
Model |
UTP7308GE-POE(MS60) |
|
Downlink Ports |
8*10/100/1000Base-T PoE RJ45 ports |
|
Uplink Ports |
4*1000Base-X SFP slots |
|
Console Port |
1*RJ45-RS232 serial port(115200,8,N,1) |
|
Init Key |
Short press:Restart; |
|
>5s restore factory settings |
|
|
Standard and Protocols |
IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1p, IEEE 802.1x IEC61000-4-5 IEC61000-4-2 IEC61000-4-4 |
|
Switching Capacity |
24Gbps |
|
Packet Forwarding Rate |
18Mpps |
|
Forwarding Modes |
Store and Forward |
|
Packet Buffer |
4Mbit |
|
MAC Address Table |
8K |
|
Jumbo Frame |
10K bytes |
|
PoE Standard |
802.3af/at |
|
PoE Power Method |
End-span |
|
PoE Line Pair |
1/2(+)，3/6(-) |
|
PoE Output Power |
Microsemi PSE solution:Port T1 60W HPoE，Port T2~T8 are standard PoE(30W) |
|
Alarm Signal Output by Relay |
Support relay alarm for power off, ports network link-off , ports PoE off（Set by Web Software） |
|
Surge Immunity |
6KV Per: IEC61000-4-5 |
|
ESD Immunity |
ESD Level 4 Per: IEC61000-4-2 |
|
EFT Level 4 Per: IEC61000-4-4 |
|
|
Input Voltage |
48~57V DC |
|
Power Consumption |
Self consumption＜30W |
|
Operating Temperature |
-40℃~75℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Operating Humidity |
5%-95%（No- condensation） |
|
Dimension(LxWxH) |
159mm×110mm×46.5mm |
|
Weight |
750g |
|
MTBF |
330000 Hour |
|
Certification |
CE, FCC, ROHS |
|
Software Parameter |
|
|
Port Management |
Support Port Enable/Disable; |
|
Support Port Rate Settings; |
|
|
Support Port Full-duplex Mode; |
|
|
Support IEEE802.3x Flow Control; |
|
|
Support Port Name Change; |
|
|
VLAN |
Support 4K VLAN |
|
Support 802.1Q Protocol-Based VLAN; |
|
|
Support Port-Based VLAN; |
|
|
QoS |
Support QoS; |
|
Support 8-Level Priority management for switching; |
|
|
Support WRR; |
|
|
Support 802.1P and DSCP Priority; |
|
|
Multicast Management |
Support SNMP V1/V2/V3 Protocol; |
|
Support IGMP Snooping; |
|
|
POE Management |
Support Total Power Consumption Control; |
|
Support PoE ON/OFF; |
|
|
Support Single Port 60W max. Power Change and Port Output Priority; |
|
|
Alarm Signal Output by Relay |
Support relay alarm for power off, ports network link-off , ports PoE off |
|
Security |
Support IP, MAC, Port, VLAN Combination and Binding; |
|
Support MAC address auto-learning, aging& filter; |
|
|
Support Port Isolation, Port Speed-Limited; |
|
|
Support RSTP; |
|
|
Support Fast-Ring; |
|
|
Support 5 groups of 8-Port trunk; |
|
|
Support RADIUS Authentication& 802.1X Authentication; |
|
|
System Management & Maintenance |
Support WEB Management, CLR Settings and telnet Settings; |
|
Support CLR Settings; |
|
|
Support FTP/TFTP/HTTP Web Upgrading; |
|
|
Support Flow Calculate; |
|
|
Support MAC address Form Search; |
|
|
Support IP Address, DNS Server Change |
|
|
Support Username& Password Change; |
|
|
Support History Record, Journal management; |
|
|
Support System settings Backup; |
|
.png "60W poe switch")
.png "industrial poe switch")
|
Designation |
Quantity |
|
UTP7308GE-POE(MS60) |
1 |
|
Accessory |
1 |
|
User Manual |
1 |
