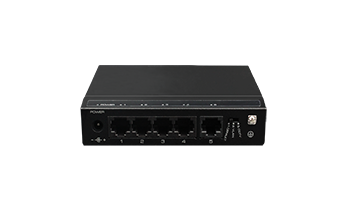

5 Ports 10/100Mbps Unmanaged PoE Switch

SF5P-HM, unmanaged PoE switch, provides 4*10/100Base-TX PoE ports + 1*10/100Base-TX uplink port. Max PoE power output for single port is 30W, the total PoE power budget is 60W. Equipped with function of three operating modes(Default, VLAN, CCTV), the switch supports PoE watchdog under VLAN and CCTV, and it improves the online rate of cameras.

ADVANTAGES

• Provide 4*10/100Base-TX PoE ports + 1*10/100Base-TX uplink port.

• IEEE802.3af/at, with PoE power budget of 60W.

• Three operating modes (Default, VLAN, CCTV).

• Supports PoE watchdog under VLAN and CCTV mode. It improves the online rate of cameras.

• Support 6KV surge immunity, 8KV ESD protection.

• Support desktop and wall mount installation.

• Plug and play, no need more configuration.

UTEPO

The UTEPO Security-exclusive PoE switches are born for small and medium-sized HD IP surveillance projects. With PoE function, the switches could supply power along with data for AP, IP camera and IP phone. Except for the proven advantages of PoE, including safe power, simple installation, and flexible deployment, the UTEPO switches are equipped with three operating modes (Default, VLAN, CCTV), as well as PoE watchdog under VLAN and CCTV, which improves the alive rate of cameras while with less manual management and maintenance.

Key Feature

PoE Watchdog

Detect PoE Camera when it is frozen, and reboot it automatically.

6KV Surge Protection

With 6KV surge protection on both port and power supply, it prevents the switches from damage caused by indirect lightning.

Three Operating Modes

Default: All port can be communicated freely.

VLAN: The Downlink ports are isolated respectively, but can communicate with Uplink Ports. Support PoE Watchdog.

CCTV: The bandwidth of Downlink ports is limited to 10M, but with long transmission distance of 250 meters. Support PoE watchdog.

Outstanding Power Supply

The downstream ports support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output for single port and 60/60/93/110/135/225W for the total PoE budget.

Application

As shown in the picture, the 5/6/9 ports PoE switches can be used to connect to the powered devices (IP camera, AP and IP phone) via cables which is very convenient and cost-effective for places like boutique, small shop, coffee house and warehouse etc. And the 10/18/26 ports PoE switches can be used in small or medium sized office and restaurant to connect some extra desktops or laptops. In addition, they are suitable for SMB or entry-level enterprise solution which demands stable, surveillance, IP phone, IP camera or wireless applications.

Model	SF5P-HM
Downstream Ports	4*10/100Base-TX PoE
Uplink Ports	1*10/100Base-T RJ45
Standard	IEEE802.3, IEEE802.3u, IEEE802.3X
Switching Capacity	1Gbps
Packet Forwarding Rate	0.75Mpps
Forwarding Modes	Store and Forward
Packet Buffer	448 kbits
MAC Table	1K
Three Working Modes	Default: All port can be communicated freely.
	VLAN: Port 1-4 are isolated respectively, but can communicate with uplink port, support PoE Watchdog
	CCTV: Port 1-4, 10M, with long transmission distance of 250 meters, support PoE watchdog
PoE Standard	802.3af/at(PSE)
PoE Power Supply Type	End-span
PoE Pin Assignment	1/2(+), 3/6(-)
PoE Output Power	Max PoE power output for single port is 30W (DC52V)
PoE Output Power	Total PoE power budget is 60W
Surge Immunity	Common mode 6KV, Execute: IEC61000-4-5
ESD Protection	6KV Contact discharge
	8KV Air discharge
	Execute: IEC61000-4-2
Input Voltage	DC 52V 1.2A
Power Consumption	＜63W
Operating Temperature	-10℃~50℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%~95%(Non-condensing)
Dimension (LWH)	1229225mm
Weight	343g
Certification	CE, FCC, ROHS

Designation	Quantity
PoE Switch	1
Power Adapter	1
User Manual	1
