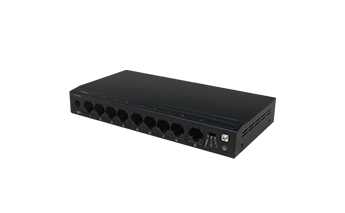

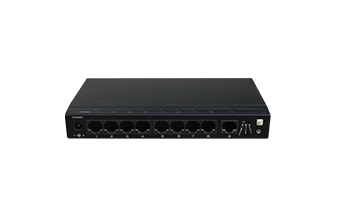

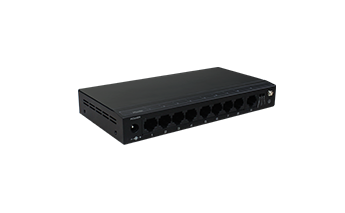

9 Ports 10/100Mbps Unmanaged PoE Switch

SF9P-HM, unmanaged PoE switch, provides 8*10/100Base-TX PoE ports + 1*10/100Base-TX uplink ports. Max PoE power output for single port is 30W, the total PoE power budget is 93W. Equipped with function of three operating modes(Default, VLAN, CCTV), the switch supports PoE watchdog under VLAN and CCTV, and it improves the online rate of cameras.

ADVANTAGES

• Provide 8*10/100Base-TX PoE ports + 1*10/100Base-TX uplink port.

• IEEE802.3af/at, with PoE power budget of 93W.

• Three operating modes (Default, VLAN, CCTV).

• Supports PoE watchdog under VLAN and CCTV mode. It improves the online rate of cameras.

• Support 6KV surge immunity, 8KV ESD protection.

• Support desktop and wall mount installation.

• Plug and play, no need more configuration.

UTEPO

The UTEPO Security-exclusive PoE switches are born for small and medium-sized HD IP surveillance projects. With PoE function, the switches could supply power along with data for AP, IP camera and IP phone. Except for the proven advantages of PoE, including safe power, simple installation, and flexible deployment, the UTEPO switches are equipped with three operating modes (Default, VLAN, CCTV), as well as PoE watchdog under VLAN and CCTV, which improves the alive rate of cameras while with less manual management and maintenance.

Key Feature

PoE Watchdog

Detect PoE Camera when it is frozen, and reboot it automatically.

6KV Surge Protection

With 6KV surge protection on both port and power supply, it prevents the switches from damage caused by indirect lightning.

Three Operating Modes

Default: All port can be communicated freely.

VLAN: The Downlink ports are isolated respectively, but can communicate with Uplink Ports. Support PoE Watchdog.

CCTV: The bandwidth of Downlink ports is limited to 10M, but with long transmission distance of 250 meters. Support PoE watchdog.

Outstanding Power Supply

The downstream ports support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output for single port and 60/60/93/110/135/225W for the total PoE budget.

Application

As shown in the picture, the 5/6/9 ports PoE switches can be used to connect to the powered devices (IP camera, AP and IP phone) via cables which is very convenient and cost-effective for places like boutique, small shop, coffee house and warehouse etc. And the 10/18/26 ports PoE switches can be used in small or medium sized office and restaurant to connect some extra desktops or laptops. In addition, they are suitable for SMB or entry-level enterprise solution which demands stable, surveillance, IP phone, IP camera or wireless applications.

Model	SF9P-HM
Downstream Ports	8*10/100Base-TX PoE
Uplink Ports	1*10/100Base-TX RJ45
Standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3X
Switching Capacity	1.8Gbps
Packet Forwarding Rate	1.30Mpps
Forwarding Modes	Store and Forward
Packet Buffer	768kbits
MAC Table	2k
Three working Modes	Default:All port can be communicated freely.
	VLAN: Port 1-8 are isolated respectively, but can communicate with Port 9, support PoE Watchdog
	CCTV: The transmission distance can be extended to 250 meter, while link speed of downlink ports 1~8 will be limited to 10Mbps(Uplink ports keep 100Mbps). Support PoE watchdog.
PoE Standard	802.3af/at(PSE)
PoE Power Supply	End-span
Power Pin Assignment	1/2(+)，3/6(-)
PoE Power Output	Max PoE power output for single port is 30W (DC52V)
PoE Power Output	Total PoE power budget is 93W
Surge Immunity	Common mode 6KV, Execute: IEC61000-4-5
ESD Protection	6KV Contact discharge
	8KV Air discharge
	Execute: IEC61000-4-2
Power Supply	DC 52V 1.85A
Power Consumption	＜96W
Operating Temperature	-10℃~50℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%~95%(Non-condensing)
Dimension(WDH)	1809225mm
Weight	500g
Certification	CE, FCC, ROHS

Designation	Quantity
PoE Switch	1
Power Adapter	1
User Manual	1

Datasheet SF9P-HM User Manual SF9P-HM

5 Ports 10/100Mbps Unmanaged PoE Switch (Off Production)

4*FE PoE + 8*FE IEEE 802.3af/at Support PoE watchdog Three operating modes 6kV surge immunity

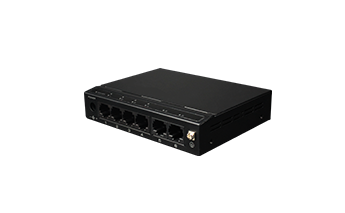

6 Ports 10/100Mbps Unmanaged PoE Switch (Off Production)

4*FE PoE + 2*FE IEEE 802.3af/at Support PoE watchdog Three operating modes 6kV surge immunity

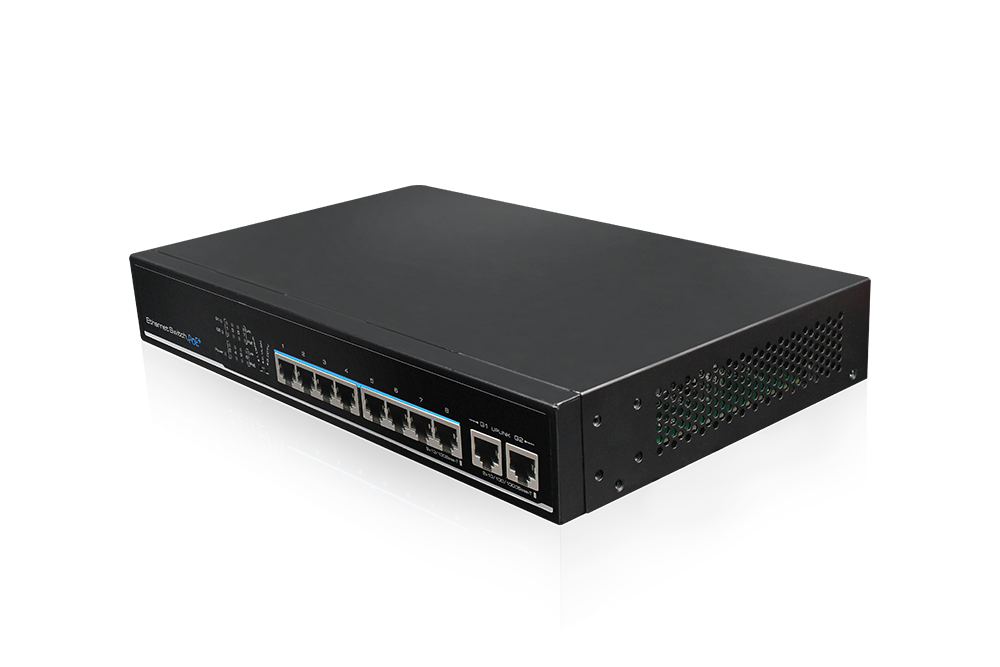

8 Ports 100Mbps PoE Switch (2 Gigabit Uplink) (Off Production)
