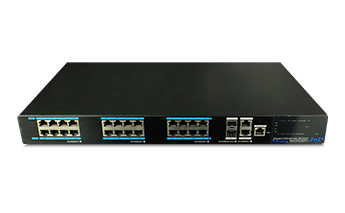

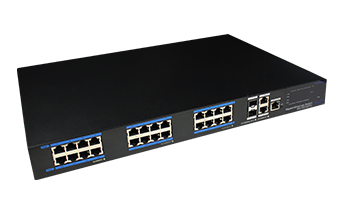

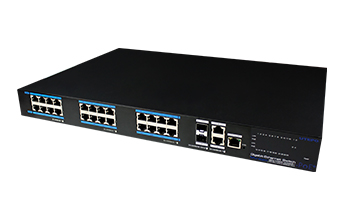

The 24 ports PoE full Gigabit managed Ethernet switch, which provide 24* PoE Gigabit downlink Ethernet ports , 2* Gigabit uplink optical fiber ports and 2* Gigabit uplink Ethernet ports. The Products support IEEE 802.3 af/at ,support Web layer-2 network management and PoE management. Products are widely used in security surveillance, network engineering projects and so on.
|
Model |
UTP7524GE-POE-A1 |
|
Downstream Ports |
24* 10/100/1000Base-T (PoE) |
|
Uplink Ports |
2*1000Mbps SFP Port and 2*10/100/1000Base-T |
|
Network Standard |
IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X |
|
Switching Capacity |
56Gbps |
|
Packet Forwarding Rate |
42Mpps |
|
Forwarding Modes |
Store and Forward |
|
Packet Buffer |
12M |
|
MAC Address Table |
16K |
|
PoE Standard |
802.3af/at(PSE) |
|
PoE Power Method |
End-span |
|
PoE Line Pair |
1/2(+)，3/6(-) |
|
PoE Output Power |
54V DC , 30 watts max |
|
PoE Budget |
390 watts max |
|
Surge Immunity |
6KV Execute：IEC61000-4-5 |
|
ESD Immunity |
6KV Contact discharge |
|
8KV Air discharge |
|
|
Execute：IEC61000-4-2 |
|
|
Input Voltage |
100~240V AC；50/60Hz |
|
Power Consumption |
＜420W(Including PoE) |
|
Operating Temperature |
-10-50℃ |
|
Storage temperature |
-40-85℃ |
|
Humidity(Non-condensing) |
5%-95% |
|
Dimension（L×W×H） |
442mm×305mm×44.5mm |
|
Weight |
4.35kg |
|
Certification |
CE, FCC, ROHS |
|
Port Management |
Support port enabling and disabling |
|
Support port speed settings |
|
|
Support port full-duplex mode |
|
|
Support IEEE802.3x flow control |
|
|
Support port name modification |
|
|
VLAN |
Support of 4K VLAN |
|
supports 802.1Q VLAN protocol |
|
|
Support VLAN based on port |
|
|
Quality of Service |
Support QoS Congestion Management |
|
Support 8 priority queues |
|
|
Queue scheduling: SP, WRR, SP+WRR |
|
|
Support 802.1p CoS/DSCP priority |
|
|
Multicast Management |
Support SNMPV1 / V2 / V3 protocols |
|
Support IGMP Snooping |
|
|
POE management |
Support Total Power Control |
|
Support PoE On Off |
|
|
Support single-port 30W output，Output port and priority |
|
|
Security Features |
Supports IP, MAC, port, VLAN binding combinations |
|
Support MAC address auto-learning, aging and filtration |
|
|
Support port isolation, port speed limit |
|
|
Support RSTP |
|
|
Support 5 groups of link aggregation |
|
|
Support 802.1X |
|
|
System Management |
Web-based GUI and CLI management |
|
Support FTP / TFTP / HTTP load upgrade |
|
|
Support traffic statistics |
|
|
Support MAC address table query |
|
|
Support IP address, DNS server modifications |
|
|
Support user name and password modification |
|
|
Support for history, log management |
|
|
Support System Configuration Backup |
|
|
Support to recover the default factory settings on reboot |
|
Designation |
Quantity |
|
UTP7524GE-POE-A1 |
1 |
|
AC Power Line |
1 |
|
Mounting brackets |
1 |
|
User Manual |
1 |
