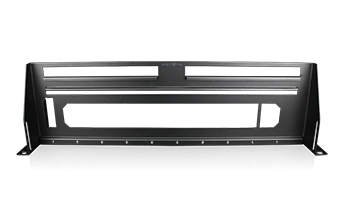

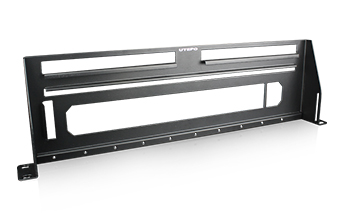

MIT rack is a 1U/19 inches designed for the management and the centralized power supply. 4/8 ports Ethernet switch, PoE surge protector, PoE repeater, Ethernet extender series, HD Analog UTP Transceiver and HD Analog Video & Power UTP Transceiver can be fixed in a rack and work together with integrated power supply system of 54V, 60W/120W power adapter. It features centralized management and simple cabling.
ADVANTAGES
• Standard: Accord with19-inch MIT rack standard, adopt 1U height design
• Special Function: Compatible with PoE surge protector, PoE repeater, Ethernet extender series. HD video twisted-pair convertor, HD video& power twisted-pair convertor series. 4-port, 8-port switch series products
• Major Function: Max. 10pcs cards operate simultaneously
• Structure: Precise mold manufacturing, with elegant appearance
|
Item |
Description |
|
|
Function |
Installation Quantity(Max.) |
10pcs(Extender series, Twisted-pair converter series); 2pcs(4-port, 8-port switch series) |
|
Installation Standard |
19-inch Standard Rack |
|
|
Height |
1U |
|
|
Structure & Feature |
Weight Carried |
>15kg |
|
Compatible Products |
4-port, 8-port switch series; PoE surge protector, PoE repeater, Ethernet extender series; HD video twisted-pair converter, HD video& power twisted-pair converter series products. |
|
|
Mechanics |
Dimension(LxWxH) |
485mm x 137mm x 44mm |
|
Shell |
SGCC |
|
|
Color |
Black |
|
|
Net Weight |
552g |
|
.jpg "1U rack")
.jpg "1U Rack")
|
Designation |
Quantity |
|
MIT Rack |
1 |
|
User Manual |
1 |
|
1 to 8 Power Splitter Cable |
1 |
