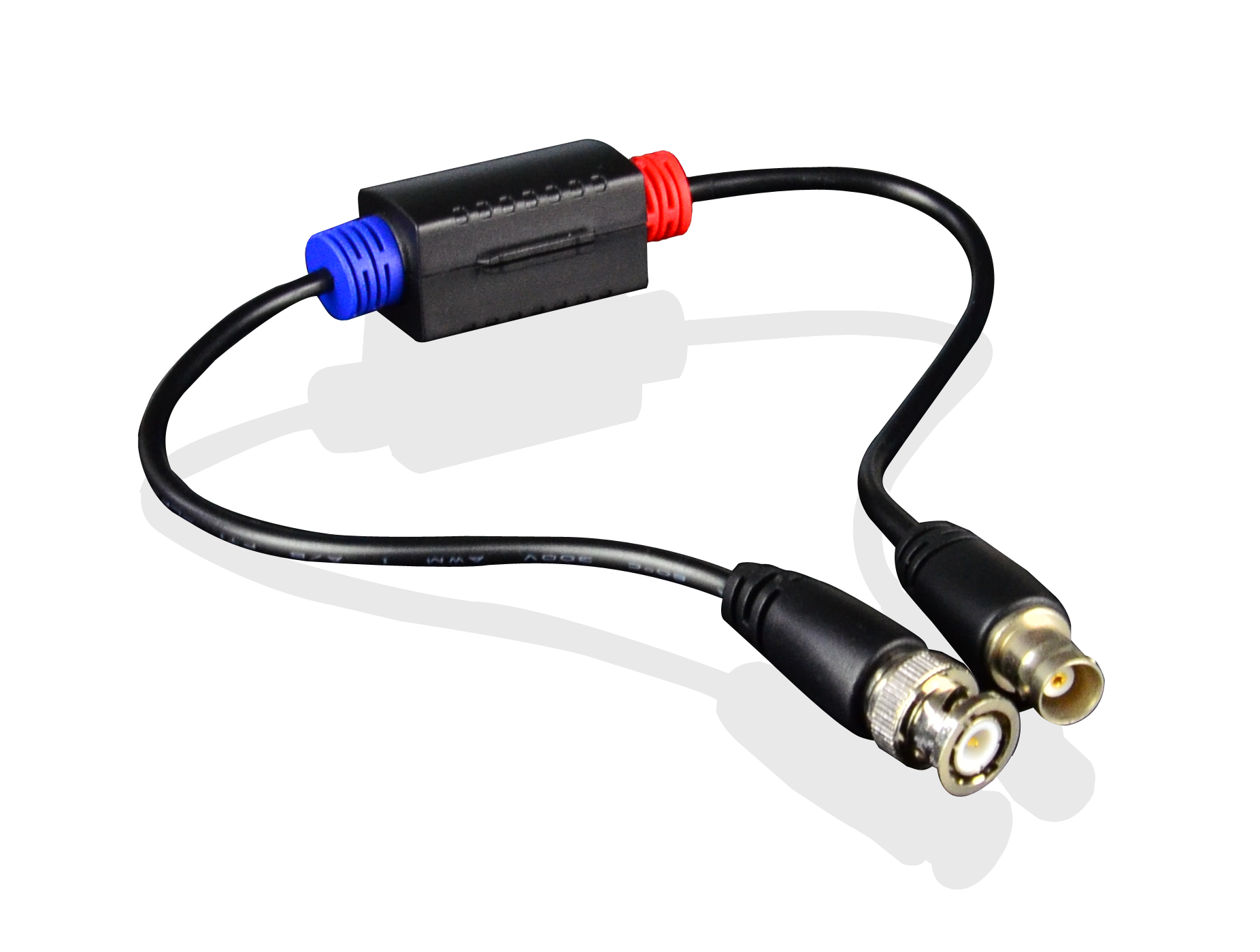

HD-Video Anti-Interference Device is a passive high-efficient and high-reliable ground loop isolator for HDCVI/HDTVI/AHD/Analog video signal over coaxial cable. Its magnetic isolation technology adoption can effectively solve the interference issues caused by different ground potential during the  transmission, which improve the video anti-interference capability and effectively eliminate the splitting and scrolling pictures. The device embedded lightning protection system improves the stability. It is widely used in various complicated security surveillance projects.

Advantage

√ Passive, no power required

√ Eliminate Video distortion caused by ground loops ciruit

√ Eliminate issues as image tearing, cross-talk, rolling and so on

√ Fully compatible with HDCVI, HDTVI, AHD, Analog Video signals

√ Built-in 800v insulated voltage

√ Excellent anti-interference capability, superior lighting-protection, ESD and EFT capability

√ Support unibody, with small volume

Items

Description

Function Properties

Insertion Loss

0.5dB

Frequency Response

5Hz-70MHz

Input Impedance

75Ω

Output Impedance

75Ω

Isolation Voltage

800V(Minimum

Isolation Resistance

100M Ohms

Protection

Surge

Level3 Per IEC61000-4-5

ESD

Contact Discharge: 6KV Air Discharge: 8KV Per IEC61000-4-2

Environment

Operation Temperature

-10℃~55℃

Storage Temperature

-40℃~85℃

Humidity (Non-condensing)

0~95%

Mechanical

DimensionsL×W×H

41mmX24.5mmX21.6mm

Material

ABS Plastics

Color

Black

Weight

51g

41mm X24.5mm X21.6mm

ground loop isolator


ground loop isolator

Designation

Quantity

HD-Video Anti-Interference Device

1pcs

User Manual

1pcs
