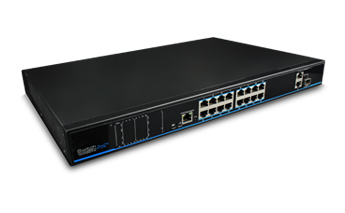

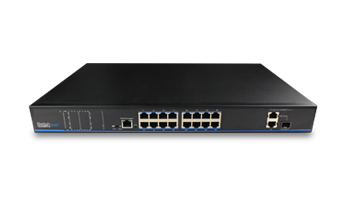

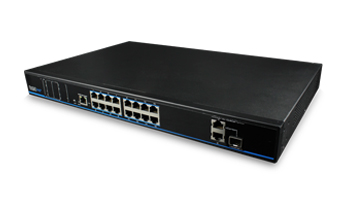

 16-port PoE Switch

16-port PoE Switch

UTP1-SW16-TP300
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download

The 16 ports PoE switch is an unmanaged PoE Ethernet switch along with 16 * 10/100Base-TX downlink PoE ports and 2 * 10/100/1000Base-T uplink Ethernet ports featuring 30-watt 802.3at PoE+ as well as 1 additional Gigabit Combo port. The total PoE power budget is up to 270 watts. It supports web-based PoE management and real-time PoE output LED display.The device can be widely used in video security monitoring systems, network projects, etc.


√ Provide 16 24x 100Mbps downlink PoE Ethernet ports, 2x gigabit uplink Ethernet ports and 1x gigabit Fiber port;

√ Downlink Ethernet ports support PoE+, each port supports max. 30W output;

√ Support power consumption indication( LED indicates power output status);

Support manage PoE on/off and power consumption setting via Web;

√ Accord with IEEE802. 3、IEEE802. 3u、IEEE802. 3ab、IEEE802. 3 af/ at standard;

√ 4K MAC address,2. 75Mb cache;

√ Quick installation, easy operation, convenient for wall-mounted、desktop and rack installations.




Model

UTP1-SW16-TP300

Downstream Ports

16* 10/100Base-TX( PoE)

Uplink Ports

2*10/100/1000Base-T and 1*1000Base-X/SFP( Combo)

Network Standard

IEEE802.3 IEEE802.3uIEEE802.3abIEEE802.3zIEEE802.3X

Switch Capacity

7.2Gbps

Throughput

5.36Mpps

Switch Processing Scheme

Store and Forward

Memory Buffer

2.75M

MAC Table

4K

PoE Standard Type

802.3af/at(PSE)    End-span

One-key CCTV mode

all the downlink ports can only comunicate with uplink ports ;retrain the network storm to 3Mbps; extend transmission distance of the downlink ports to 250m max.

Power Pin Assignment

1/2(+)3/6(-)

PoE Power Output

54V DC , 30 watts max

PoE Budge

270 watts max

PoE Management

Via Web( Default IP Address 192.168.1.200) to check, on/off and adjust each port PoE output

Lightning protection

6KV    ExecuteIEC61000-4-5

ESD

6KV     Contact discharge

8KV       Air discharge

ExecuteIEC61000-4-2

Power Supply

100~240V AC50/60Hz

Power Dissipation

300W(Including PoE)

Work Temperature

-10~50

Storage Temperature

-40~85

Humidity(Non-condensin)

5%-95%

DimensionL×W×H

442mm×207mm×44.5mm

Weight

2.69kg

Regulator

CEFCCROHS




Designation

Quantity

UTP1-SW16-TP300

1

AC Power Line

1

Mounting brackets

1

User Manual

1
