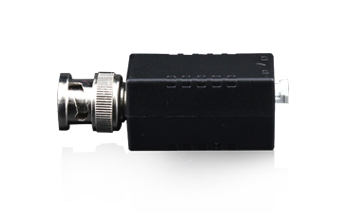

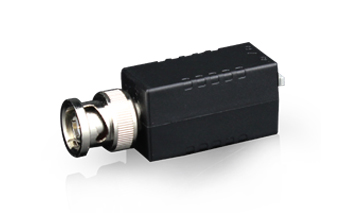

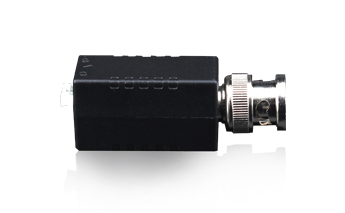

 1CH Passive HD Video Balun_HD1

1CH Passive HD Video Balun_HD1

UTP101P-HD1
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download

Transmission distance up to 500 meters with passive transmitter; Transmission distance up to 650 meters with active transmitter; Plug-and-play; Real-time and stable: Strong surge protection, ESD and lighting protection.

Passive, no power required;

Plug-and-play; Real-time and stable HDCVI/HDTVI/AHD/Analog  transmission result;

500m matches the passive transceiver; 650m matches active transceiver;

Excellent anti-interference,surge protection, ESD and lighting protection capability;

ABS (Acrylonitrile-Butadiene-Styrene) shell; built-in extended coaxial cable, convenient for intensive engineering projects;

Bayonet Nut Connector (BNC); press-fitting UTP terminal.





Item

UTP101P-HD1

Video Port

1 channel

Maximum Transmission Distance

(with passive product)

HDCVI-720P:500m;HDCVI-1080P:150m;

HDTVI-720P/1080P: 240m;

AHD-720P/960P: 500m; AHD-1080P:420m

Analog Video:600m;

Coaxial Video Port

Male BNC Port

Twisted-pair Video Port

2-channel screw push terminal

Video Compatibility

HDCVI/HDTVI/AHD, PAL/NTSC/SECAM Video

Bandwidth

075MHz

Anti-interference

>60dB

Coaxial Port Protection

2KV Per: IEC61000-4-5

Twisted-pair Port Protection

2KV(different mode) 4KV(common mode)

Per: IEC61000-4-5

ESD

Level 3,1a Contact Discharge,

Level 3,1b Air Discharge

Working Temperature

-1055

Storage Temperature

-20~70

HumidityNon-condensing

095%

Out Shell

ABS

Weight

23g



Designation

Quantity

UTP101P-HD1

2

User Manual

1
