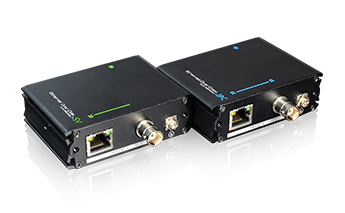

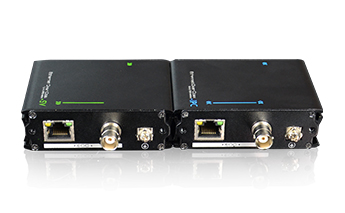

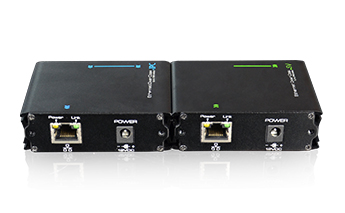

This Ethernet extender consists of one SV-Unit and one IPC-Unit. It can transfer Ethernet signal from IPC-Unit to carrier signal and extend it to SV-Unit through coaxial cable or network cable. Then it transfers carrier signal to Ethernet signal long distance Ethernet signal, security network surveillance and network transformation project where coaxial cables and ethernet cables are arranged mixed.
|
Model |
Description |
|
|
Power |
Power Supply |
Power adapter supply |
|
Voltage Range |
DC 12V |
|
|
Consumption |
＜2W |
|
|
Ethernet Port Parameter |
Ethernet Port |
EOC: 0--100Mbps Ethernet port:10/100Mbps; |
|
transmission bandwidth changes based on |
||
|
transmission distance, please refer to table 1 |
||
|
Transmission Distance |
EOC coaxial cable: 0-1200m |
|
|
EOC network cable: 0-700m |
||
|
Transmission Medium |
75-5 or above coaxial cable and Cat5e/6 cable |
|
|
Ethernet Exchange |
Ethernet standard |
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX |
|
Ethernet delay |
＜1ms |
|
|
Status |
LED Indicator |
Input/output ports: |
|
power status(RJ45 yellow) |
||
|
network signal transmission(RJ45 green); |
||
|
EOC: indicate cable connection(RJ45 yellow/green) |
||
|
Protection Level |
ESD Immunity |
1a Contact Discharge level 3 |
|
1b Air Discharge level 3 |
||
|
IEC61000-4-2 |
||
|
Surge Immunity |
IEC61000-4-5 level 3 |
|
|
Operation Environment |
Working Temperature |
0℃~55℃ |
|
Storage Temperature |
-40℃~85℃ |
|
|
Humidity(No-Condensing) |
0~95% |
|
|
Mechanical |
Dimension(L×W×H) |
63.2mm×82mm×25mm |
|
Material |
Aluminum |
|
|
Color |
Black |
|
|
Weight |
IPC:134g; SV:134g |
|
.jpg "UTEPO, ethernet extender")
|
Designation |
Quantity |
|
Ethernet Extender |
1 |
|
MIT Hanger |
2 |
|
Power Adapter |
1 |
|
User Manual |
1 |
