Full Gigabit Managed Modular Ethernet Switch
Home Products IP Transmission Ethernet Switch Layer 2 Managed Switch
 Full Gigabit Managed Modular Ethernet Switch(Off Production)

Full Gigabit Managed Modular Ethernet Switch(Off Production)

UTP7524GE-MX
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

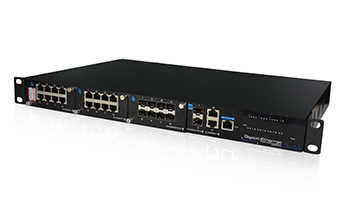

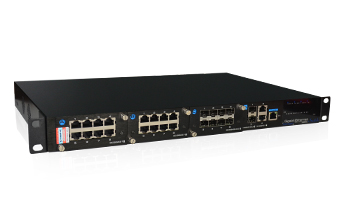

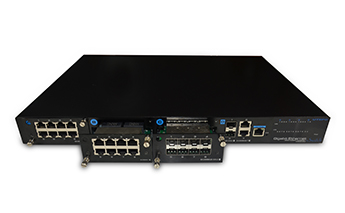

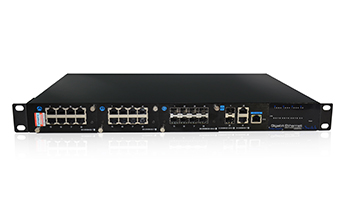

UTP7524GE-MX is 24+4 Ports full Gigabit layer 2 managed modular Ethernet switch. 1-24 downlink ports support Ethernet or optical fiber ports optional (8 ports Gigabit Ethernet & 8 ports Gigabit SFP modules). It is widely used in security surveillance, network engineering projects and so on.



Model

UTP7524GE-MX

Downstream Ports

24 full Gigabit Ethernet or optical fiber ports

Uplink Ports

2*1000Mbps SFP Port and 2*10/100/1000Base-T

Network Standard

IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X,  IEEE 802.1Q    IEEE 802.1p   IEEE 802.3ad ,  IEEE 802.1D, IEEE 802.1X

Switching Capacity

56Gbps

Packet Forwarding Rate

42Mpps

Forwarding Modes

Store and Forward

Packet Buffer

12M

MAC Address Table

16K

Surge Immunity

6KV    Execute: IEC61000-4-5

ESD Immunity

6KV     Contact discharge

8KV       Air discharge

Execute: IEC61000-4-2

Input Voltage

100~240V AC, 50/60Hz

Power Consumption

60W

Operating Temperature

-10℃-50℃

Storage temperature

-40℃-85℃

Humidity(Non-condensing)

5%-95%

DimensionL×W×H

442mm×305mm×44.5mm

Weight

4.35kg

Certification

CE, FCC, ROHS

Software Features

Port Management

Support port enabling and disabling

Support port speed settings

Support port full-duplex mode

Support IEEE802.3x flow control

Support port name modification

VLAN

Support of 4K VLAN

supports 802.1Q VLAN protocol

Support VLAN based on port

QoS

Support QoS Congestion Management

Support 8 priority queues

Queue scheduling: SP, WRR, SP+WRR

Support 802.1p CoS/DSCP priority

Multicast Management

Support SNMPV1 / V2 / V3 protocols

Support IGMP Snooping

Security Features

Supports IP, MAC, port, VLAN binding combinations

Support MAC address auto-learning, aging and filtration

Support port isolation, port speed limit

Support RSTP

Support 5 groups of link aggregation

Support 802.1X

System Management

Web-based GUI and CLI management

Support FTP / TFTP / HTTP load upgrade

Support traffic statistics

Support MAC address table query

Support IP address, DNS server modifications

Support user name and password modification

Support for history, log management

Support System Configuration Backup

Support to recover the default factory settings on reboot

managed switch
24 ports switch

Designation

Quantity

UTP7524GE-MX

1

AC Power Line

1

Mounting brackets

1

User Manual

1
