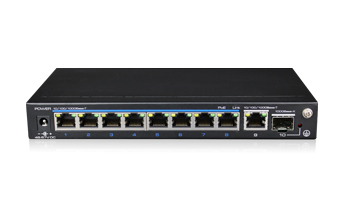

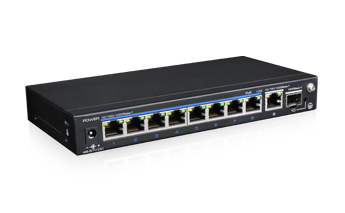

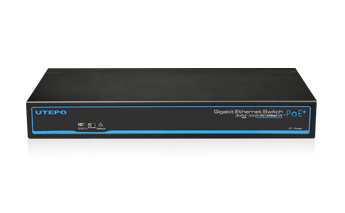

 8 Ports Full Gigabit PoE Ethernet Switch

8 Ports Full Gigabit PoE Ethernet Switch

UTP3-GSW0802-TSP120
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download

8 Ports Full Gigabit PoE Ethernet Switch is an unmanaged Ethernet switch designed for Gigabit Ethernet access and PoE applications. It provides eight Gigabit downlink ports, one Gigabit uplink Ethernet port, and one Gigabit optical SFP module slot. The eight downlink ports support 802.3af/at standard and feature Max. 30W PoE power output of single port, Max. 120W of whole machine. The device supports one-key VLAN which isolates the communication between downlink and uplink ports. It can be widely used in security surveillance, hotels, schools, SMB engineering and other occasions.


Model

UTP3-GSW0802-TSP120

Downstream Ports

8* 10/100/1000Base-T (PoE)

Uplink Ports

1x 10/100/1000Base-T Ethernet Ports & 1x 1000Base-X SFP Port

Network Standard

IEEE802.3 IEEE802.3uIEEE802.3abIEEE802.3ZEEE802.3 X

Switch Capacity

20Gbps

Throughput

14Mpps

Switch Processing Scheme

Store and Forward

Memory Buffer

1M

MAC Table

4K

PoE Standard

802.3af/at(PSE)

PSE  Type

End-span

Power Pin Assignment

1/2(+)3/6(-)

PoE Power Output

54V DC , 30 watts max

PoE Budge

120 watts max

Lightning protection

6KV    ExecuteIEC61000-4-5

ESD

6KV     Contact discharge

8KV       Air discharge

ExecuteIEC61000-4-2

Power Supply

DC 48V~57V

Power Dissipation

5W

Work temperature

-10~45

Storage temperature

-40~85

Humidity(Non-condensing)

5%-95%

DimensionL×W×H

200mm×101.8mm×27mm

Weight

500g

Regulator

CEFCCROHS



Designation

Quantity

UTP3-GSW0802-TP120

1

Power  Adapter

1

Accessory

1

User Manual

1
