 4CH Passive HD Video UTP Transceiver

4CH Passive HD Video UTP Transceiver

UTP104P-HD
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download

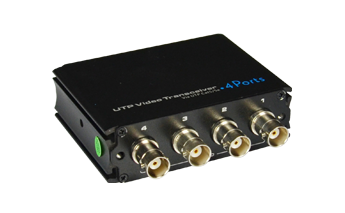

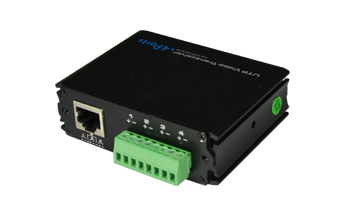

The 4ch passive HD (non-amplified) video UTP transceiver allows transmission of real-time and high-performance color or monochrome (B/W) CCTV video or HDCVI/AHD/HDTVI HD video over UTP cable, perfect for multi-point surveillance.


Passive,no need of power supply;

√HDCVI HDTVI AHD CVBS 4 in 1 Compatible design; Real-time transmission, no delay;

√Recommendation transmission distance as below:

1) HDCVI1080p: 100m ; HDCVI 720P: 370m( passive to passive);

2)HDTVI 720P/1080p: 200m ( passive to passive);

3) AHD-L/M 720p/960P: 330m; AHD-H 1080P: 330m(passive to passive);

4)Analog video: 500m ( passive to passive);

√RJ-45 or green terminal block to be chosen to connect UTP cable;

√Protection: Strong surge protection, ESD and lighting protection;

√Structure: delicate design, support MIT structure, easy operation.





Item

Parameter

Function

Transmission Channel

4 channels

Video Connector

4 channels

Transmission Distance

Please refer to table 1

Video
Transmission
Performance
and Connector

Coaxial Video Connector

Female BNC Connector

UTP Cable Video Connector

Female RJ45 Connector
8 channel screw push terminal

Compatible Video Format

HDCVI HDTVI AHD CVBS

Signal Transmission Width

0~70MHz

Interference Rejection

>60dB

Anti-interference

>60dB

Protection

Coaxial Video Connector Surge

2KV perIEC61000-4-5

UTP Cable Communication
Connector Surge Protection

2KV(different mode) per:IEC61000-4-5

ESD

1a contact discharge level 3
1b air discharge level 3
per
IEC61000-4-2

Operation
Environment

Operation Temperature

0~55

Storage Temperature

-40~85

Humidity

0~95%

Physical
Properties

Dimension(L*W*H)

85mm×82mm×25mm Include connector length)

Shell

Aluminum

Color

Color Black

N.W.

154g


Table 1:

Signal Source

HDCVI
(720P)

HDCVI
(1080P)

HDTVI
(720P/1080P)

AHD-L/M
(720P/960P)

AHD-H
(1080P)

Analog
Video

Recommended Distance

370m

100m

200m

330m

330m

500m

Item

Quantity

4CH Passive HD Video UTP Transceiver

1

Accessories(ears, screws, pads)

1

Installation Manual

1
