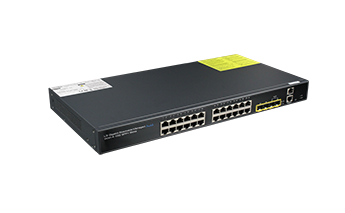

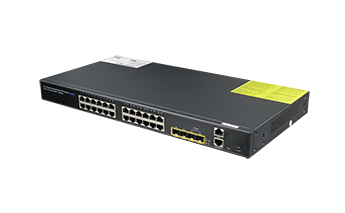

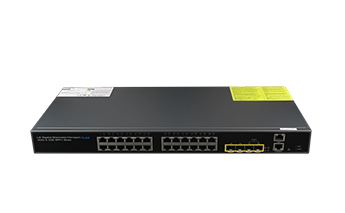

 24 Ports Gigabit Stackable L3 Managed Switch (4*10G Uplink Ports)

24 Ports Gigabit Stackable L3 Managed Switch (4*10G Uplink Ports)

UTP7724GE-L3
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video

Gigabit Stackable L3 Core Switch with 10G ports is equipped with the new generation of high-performance hardware and self-developed software platform. Providing 24*Gigabit Downlink ports and 4*10G Uplink ports (2 stackable ports), the switches are featuring with layer 3 management, IPv6/4, excellent security mechanism, ACL/QoS, and rich VLAN function. In addition, these core switches are easy to be managed and maintained, and widely used in the core layer or aggregation layer in the surveillance networking of enterprise and industrial area etc.


Feature

Strong Business Process Capability

l Support RIP (Routing Information Protocol) and OSPF (Open Shortest Path First), solving the routing problem of large and medium complex networks after subnet subdivision and simplify network configuration.

l Support static route, administrators can manually configure router numbers to realize the communication between network segments in a simple, efficient and reliable way.

l Support DHCP server, assigning IP address for host.

l Support DHCP relay, it can obtain IP address through different ports or switches in different subnets, and reduce the numbers of DHCP server.

l Support proxy ARP to realize the communication between the hosts of different physical networks in the same network segment.

l Support 802.1Q-based VLAN, MAC-based VLAN, VLAN & Private VLAN, administrators can flexibly assign VLAN.

l Support GVRP to realize the function of dynamic distribution, register and propagation for VLAN. And it reduces manual configuration to ensure correct configuration.

l Support VLAN-VPN, through this function, the switch would encapsulate two Layers of VLAN tag on private network messages before getting them through the public network.

l Support QoS of Port-based, 802.1P-based and DSCP-based, with EQU & WRR etc. scheduling for priority queues.

l Support ACL, configuring matching rules, processing operations and time permissions to filter packets to provide security access control policy.

l Support IGMP V2/V3 Snooping & MLD Snooping, meeting the access requirement of multi-terminal for HD video surveillance and video conference.


Excellent Security Mechanism

l Support IP+MAC+VLAN+port binding.

l Support ARP protection against ARP spoofing & ARP flooding.

l Support IP Source Guard, protecting the system from MAC spoofing, IP spoofing and counterfeiting IP/MAC address.

l Support DoS protection against Land Attack, Scan SYNFIN, Xmascan & Ping Flooding etc.

l Support 802.1X authentication. It can control the authorization status of the port according to result of authentication.

l Support Port Security, it would stop learning when the learning number reached the maximum. And it prevents MAC address attack and controls network traffic of port.

l Support DHCP Snooping, which effectively puts an end to setting up DHCP server privately, and ensures the validity of DHCP server.


Multiple Reliable Protection

l Stacking technology, connect with stack member via 10G port, simplifies management and improves reliability of system.

l Support Spanning Tree Protocol - IEEE 802.1D Classic Spanning Tree Protocol (STP)- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP).

l Support static aggregation and dynamic aggregation, effectively increasing link bandwidth, and realizing load balancing & link backup, and improving link reliability.

l Support redundant power supply to ensure continuous operation.


Simple Maintenance

l Support WEB Management, CLI Command (Console, Telnet) & SNMP (V1/V2/V3) etc.

l Support encryption of HTTPS, SSL V3, TLSV1, SSHV1/V2.

l Support RMON, Syslog, convenient for network optimization and transformation.

l Support LLDP. It is convenient for administrators to check and judge the communication status of the link through the network management system.

l Support CPU monitoring, memory monitoring, PING, Tracert, cable inspection.

UTP7724GE-L3

UTP7748GE-L3

Port

10/100/1000M BASE-T RJ45 ports

24

48

100/1000M BASE-X ports

N/A

N/A

100/1000M Combo ports

N/A

N/A

10G SFP+ uplink ports

2

2

10G stack link ports

2

2

GE out-of-band management ports

1

1

console RJ45 ports

1

1

Performance

Flash memory

64MB

64MB

DDRIII capacity

512MB

512MB

switching capacity

256Gbps

352Gbps

MAC address table size

16K

16K

Jumbo frames

9KB

9KB

auto-negotiation

YES

YES

auto-MDI/MDIX

YES

YES

Power Supply

input range1 PWOER Inside

100-240VAC
50-60Hz

100-240VAC
50-60Hz

Max system power consumption(W)

21W

45W

Smart fan controller(energy efficiency)

Fanless

1 Smart Fans

SFP power control(energy efficiency)

Yes

Yes

Redundancy Power

N/A

N/A

Dying gasp

Yes

Yes

Physical
Specification

Rack Space

19"

19"

Dimension (W x D x H) cm

44 x 28 x 4.4

44 x 33 x 4.4

Environment

Operating Temperature

0 to 50

0 to 50

Storage Temperature

-40 to 70

-40 to 70

Operating Humidity
(non-condensing)

10% to 90%

10% to 90%

Storage Humidity
(non-condensing)

10% to 90%

10% to 90%

Environmental Regulation
Compliance: WEEE

Yes

Yes

Environmental Regulation
Compliance: RoHS

Yes

Yes

Certification

FCC Class A

Yes

Yes

CE

Yes

Yes

Layer 2

Tri-speed (10/100/1000BASE-T) copper interfaces

 Auto-negotiation for port speed and duplex mode

 Auto MDI/MDI-X

SFP+ fiber interface

 1GBASE-X/10GBASE-R

Transceivers

 current/rx-power/temperature/tx-power

 voltage/high-low alarm and warning

 Digital Diagnostic Monitoring (DDM)

Flow Control

 IEEE 802.3x for full duplex mode

 Back-Pressure for half duplex mode

Jumbo frames

 9 KB

Broadcast/Multicast/Unknown Unicast Storm Control

Link aggregation

 Static link aggregation

 802.3ad with LACP

 Unicast/Multicast load balance over trunk port

Spanning Tree Protocol

 IEEE 802.1D Spanning Tree Protocol (STP)

 IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

 IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

 ERPS

 BPDU  Guard

 BPDU filtering

 BPDU transparent

 Loopback detection

VLANs

Supports 4K VLAN

 Port-based VLAN

 IEEE 802.1Q VLAN

 GVRP (256 VLAN)

 IEEE 802.1v Protocol-based VLAN

 IP Subnet-based VLAN

 MAC-based VLAN

 Voice VLAN

 Traffic Segmentation

 QinQ

IGMP Snooping

 IGMP Proxy reporting

 IGMP v1/v2/v3 snooping

 IGMP Filtering

 IGMP Throttling

 IGMP Immediate Leave

 IGMP Querier

 IGMP mrouter-forward mode

 IGMP router-port-expire-time

 IGMP tcn-flood

 IGMP tcn-query-solicit

 IGMP unregistered-data-flood

MVR

 5 multicast VLANs

 Port mirroring

 Remote port mirror (RSPAN)

Stacking Links

 L2/L3 supported

 VLAN membership supported

 trunking supported

 IPMC supported

 Non-Spanning Tree Loopback detection

 Port security

 Dynamic Arp Inspection

 CFM

 OAM

 UDLD

Layer 3

OSPF

 Unicast Routing

 Static Unicast Routes

 RIP v1/v2

 Multicast Routing

 IGMPv1/v2/v3

 ARP limit, ARP proxy, ARP filter, ARP inspection

 DHCP server

QoS

 Scheduling for priority queues

 WRR Priority Scheduling

 Strict Pritory Scheduling

 Hybrid(DRR/WRR + Strict)

 COS

 DiffServ

 Number of Priority Queues

 8 queues/port

 DSCP

 TCP/UDP Port Base

Security

 AAA

 Radius client

 Tacasc+ client

 802.1X

 Local/radius Authentication

 Port-based Authentication

 Mac-based Authentication

 HTTPS and SSL(v3)

 SSH V2.0

 DHCP Snooping

 Option 82

 IP Source guard

 DoS Protection

ACL

 L2/L3/L4

 Ingress

 Egress

 Statistics

 Global ACL

 IPv4/IPv6/MAC/ARP ACL

IPv6

 IPv4/IPv6 Dual Protocol Stack

 IPv6 Address Type

Unicast

Multicast

 ICMPv6

 IPv6 Neighbor Discovery

 IPv6 Neighbor Discovery Snooping

 Manual Configuration

 IPv6 DHCP client

 IPv6 DHCP Snooping

 MVR over IPv6

 SNMP over IPv6

 HTTP over IPv6

 SSH over IPv6

 Telnet over IPv6

Management

 Switch Management

 Web management

 CLI via console port or Telnet

 SNMP v1, v2c, v3

 IP clustering

 32 members

 Firmware

 Firmware upgrade via HTTP

 Configuration

 Dual images

 Multiple configuration files

 Configuration file upload/download via TFTP/HTTP/FTP server

 Firmware auto upgrade

 RMON

 Groups 1, 2, 3 and 9

 MIB II

 DHCP/BOOTP

 Client

 Relay

 DHCP dynamic provision option 66,67

 DNS client

 Syslog

 System monitor

 LLDP

 Ping/ Traceroute

 SNTP/NTP

 SMTP

 SFLOW

ITEM

QTY

Stackable Switch

1pc

Power Cable

1pc

Grounding Cable

1pc

Serial Port Cable

1pc

Mounting Kits

1set

Fast Installation Guide

1pc
