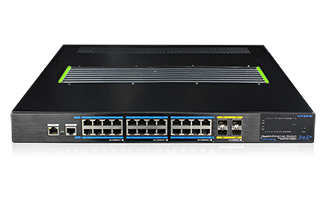

 High-Power fanless PoE switch(24 ports gigabit 4*10G uplink L3-managed)

High-Power fanless PoE switch(24 ports gigabit 4*10G uplink L3-managed)

UTP7624GE-POE-P
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

The High-power fanless PoE switch(24 ports gigabit 4*10G uplink L3-managed), which provides 24*10/100/1000 RJ45 ports, 4* 1000/10G SFP+ slots. It supports fanless high-power PoE output(350W). It supports  layer-2/3 network management and PoE management . The Products are widely used in security surveillance, network engineering projects, especially in low noise surround such as hotel, office, hospital.


ADVANTAGES

• No noise switch, no heat dissipation fan.

• 350W high-power PoE output.

• Abundant ports:24 GE PoE+4*10G(SFP+).

• Support L2/L3 Web management and PoE management.

• Support One-key CCTV/LOCK/ONLINE/RING.

• Support PoE indicator LED.

• Support high-speed data forwarding, very suitable for large flow of video data forwarding in security surveillance.

• Support fast ring , Self-healing in 20ms Min.

• Quick Installation, convenient for wall/desk/rack installation.


UTEPO, Layer 3 managed switch

Item

UTP7624GE-POE-P

Copper Ports

24* 10/100/1000Base-T  PoE RJ45(Auto-MDI/MDI-X)

SFP Ports

4*1000/10G Base-X SFP(Mini-GBIC)

Console Port

1*RJ45-R232 serial port(115200, 8, N, 1)

OOB Port

1*10/100Base-TX RJ45(only used to Web management)

default IP: 192.168.2.200 name: admin password: admin)

Init button

Short press: on/off PoE indicator

>5s restore factory settings

PoE indicator

Green: PoE output power 0%70%

Yellow: PoE output power70%80%

Red: PoE output power 80%100%

Network Standard

IEEE802.3,  IEEE802.3u,  IEEE802.3ab,  IEEE802.3Z,  IEEE802.3X,  IEEE802.1Q,  IEEE802.1p,  IEEE802.3ad,  IEEE802.1D,  IEEE802.1X

Switching Capacity

128Gbps / non-blocking

Packet Forwarding Rate

95.2Mpps

Forwarding Modes

Store and Forward

Packet Buffer

12Mbit

MAC Address Table

16K MAC address table with auto learning function

Jumbo Frame

10K bytes

PoE Standard

802.3af/at(PSE)

PoE Power Method

End-span

PoE Line Pair

1/2(+), 3/6(-)

PoE Output Power

54V DC,  30 watts max

PoE Budget

350 watts max

Surge Immunity

6KV  Execute: IEC61000-4-5

ESD Immunity

6KV Contact discharge

8KV Air discharge

Execute: IEC61000-4-2

Input Voltage

100~240VAC 50/60Hz, Auto-sensing

Power Consumption

380W(Including PoE)

Operating Temperature

-10-50

Storage temperature

-40-85

Humidity

5%-95%(Non-condensing)

DimensionL×W×H

442mm×320mm×44.5mm

Weight

6.5kg

Certification

CE, FCC, ROHS

Software Features

Quality of Service

Support COS classification base on 802.1p

support QoS base on DSCP

Support 8 priority queues

Queue scheduling:  SP,  WRR,  SP+WRR

Support 802.1p CoS/DSCP priority

Multicast Management

Support SNMPV1 / V2 / V3 protocols

Support IGMP Snooping

support MLD-snooping

POE management

Support Total Power Control

Support PoE On Off

Support single-port 30W output, Output port and priority

Security Features

Supports IP,  MAC,  port,  VLAN binding combinations

Support MAC address auto-learning,  aging and filtration

Support port isolation,  port speed limit

Support STP \ RSTP \MSTP, Fast-Ring

Support 5 groups of link aggregation

support LLDP , Smart-Link , DLDP

Support 802.1X

ACL

support base on source-MAC, target-MAC, protocal-classify, source-IP, target-IP, L4 ports-number

support time-range management

System Management

Web-based GUI and CLI management

Support FTP / TFTP / HTTP load upgrade

Support traffic statistics

Support MAC address table query

Support IP address,  DNS server modifications

Support user name and password modification

Support for history,  log management

Support System Configuration Backup

Support to recover the default factory settings on reboot

L3 Management

support IPV4 static route setup

support RIP V1/2 on IPV4

support OSPF V1/V2

Support static ARP Add, delete, burn-in time sutup/check

Support static NDAdd, delete, burn-in time sutup/check

Support VRRP V1/2/3 virtual redundant route protocol

Support group-broadcasting PIM, IGMP V1/V2/V3, MLD(IPV4)

Support DHCP client, server

Support relay repeater, DHCP snooping

Support duplex transfer check mechanism

layer 3 managed poe switch

Designation

Quantity

UTP7624GE-POE-P

1

AC Power Line

1

Mounting brackets

1

User Manual

1
