 4 ports industrial full-gigabit PoE switch(60W HPoE powered)

4 ports industrial full-gigabit PoE switch(60W HPoE powered)

UTP7204GE-PD
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video

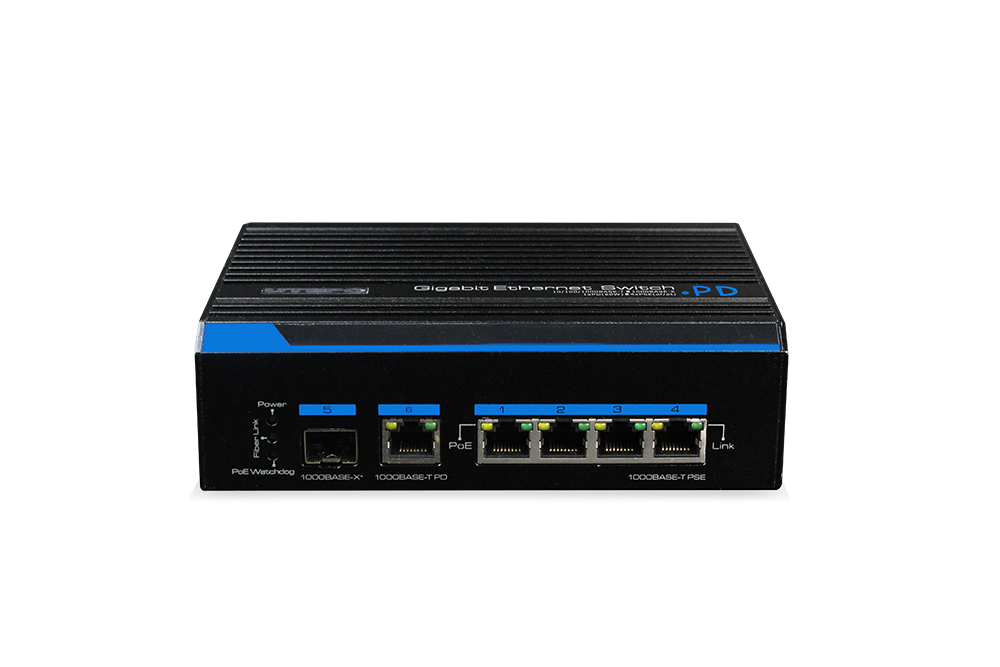

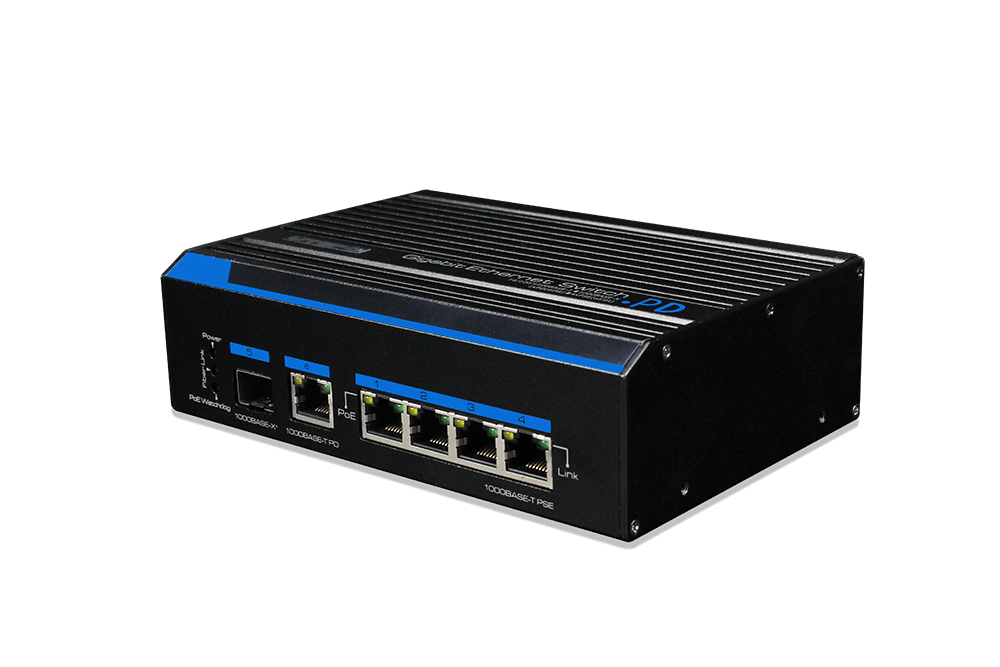

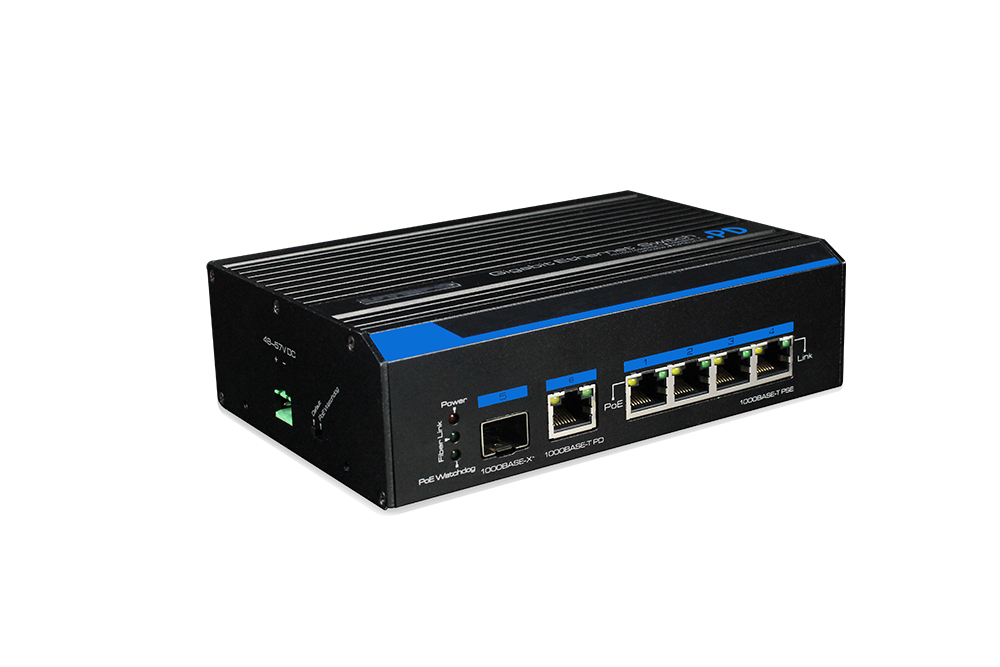

It is an industrial full-gigabit PoE switch, the switch provides 1*10/100/1000Base-T PoE in port(60W PoE input), 4*10/100/1000Base-T PoE out ports (30W PoE output, support IEEE802.3af/at) and 1*1000Base-X SFP port. It supports PoE watchdog (Detect POE device when it is frozen, reboot automatically). It supports  -40 to +75°C working temperature, 6KV surge protection,8KV/15KV ESD protection. It could be widely used in security network video surveillance, network engineering and other occasions.


Advantages

Provide 1*10/100/1000Base-T PoE Input Port(60W PoE input).

Provide 4*10/100/1000Base-T PoE out Ports(30W PoE output, support IEEE802.3af/at).

Provide a 1000Base-X SFP port.

Support PoE watchdog(Detect POE device when it is frozen, reboot automatically).

Redundant power design, support power hot backup.

Support -40 to +75°C working temperature.

Support 6KV surge protection,8KV/15KV ESD protection.


Model

UTP7204GE-PD

Downlink Ports

4* 10/100/1000Base-T 30W PoE output RJ45(IEEE802.3af/at PSE)

Uplink Ports

1*1000Base-X SFP slot

 1*10/100/1000Base-T 60W PoE input RJ45(IEEE802.3 BT/at/at PD)

Standard and Protocols

IEEE802.3 , IEEE802.3u, IIEEE802.3ab, IEEE802.3z

IEEE802.3af/at

Switching Capacity

12Gbps

Packet Forwarding Rate

8.9Mpps

Forwarding Modes

Store and Forward

Packet Buffer

1Mbit

MAC Address Table

8K

Downlink PSE Ports(1 to 4)

IEEE 802.3af/at,end-span, single port30W

Port 6 PoE input

Compatible with af(15W), at(30W), 60W(maxim and microsemi solution)

DC Power Input

48~57V DC

PoE Budget

If PD power input, PoE output 50W;

If Power adaptor DC input, PoE output:120W max.

Surge Immunity

6KV  Execute: IEC61000-4-5

ESD Immunity

8KV Contact discharge

15KV Air discharge

Execute: IEC61000-4-2

Power Consumption

5W

Operating Temperature

-40~75

Storage temperature

-40~85

Humidity(Non-condensing)

5%-95%

DimensionL×W×H

163mm×110mm×46mm

Weight

540g

Certification

CE, FCC, ROHS

PD poe switch
industrial poe switch

Designation

Quantity

UTP7204GE-PD

1

Power Adapter

0(Buy additional)

Hanger

2

Din Rails Hanger

1

User Manual

1
