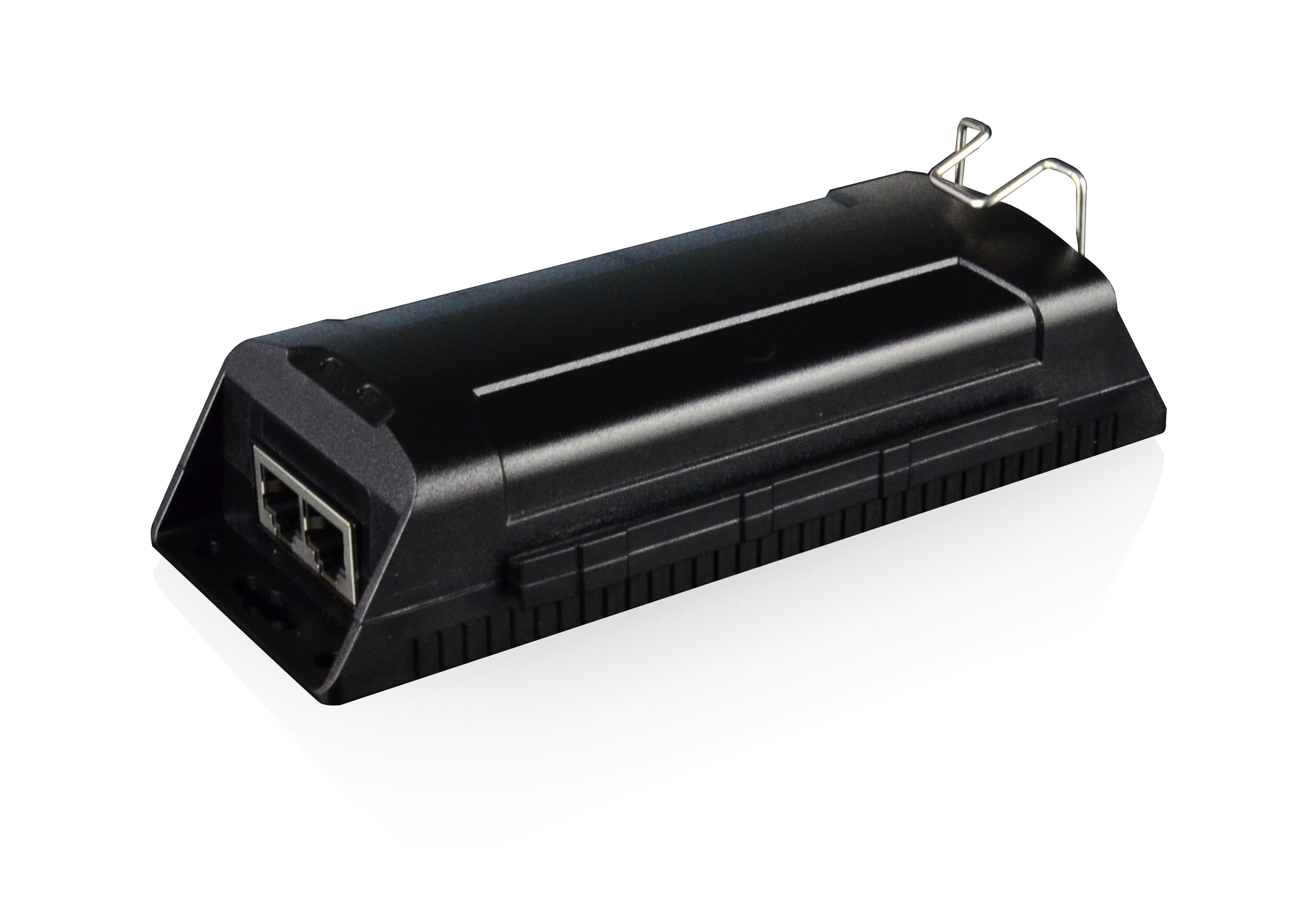

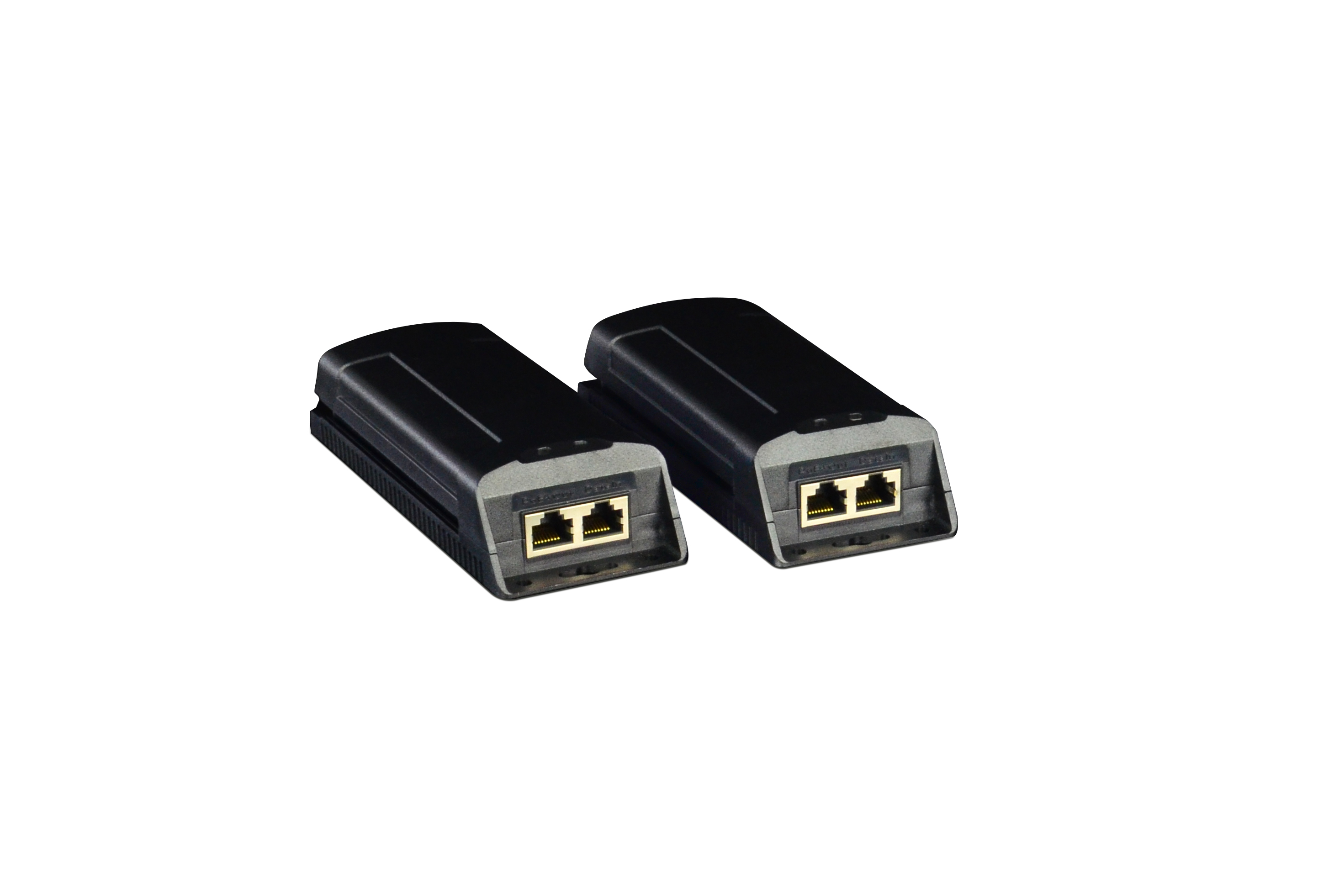

 Gigabit PoE Injector (60W Microsemi chipset)

Gigabit PoE Injector (60W Microsemi chipset)

UTP7201GE-MS60
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video

This is a single-port PoE injector  with an Ethernet port, an PoE output port and an AC input power port. It supports end-span PoE and the output power consumption is up to 60W; It features:10/100M/1000Mbps network,100m transmission distance,6KV lightning protection, Microsemi 60W PSE chipset, and patent alert. it's an excellent choice for power supply and network transmission on PTZ cameras, all-in-one PC, digital display system.


● Microsemi 60W PSE chipset; Output power consumption up to 60W;

● Ultra PoE,IEEE 802.3af/at, IEEE 802.3 10Base-T/100Base-TX/IEEE802.3ab 1000Base-T;

● Higher conversion efficiency(90%); Lower  heat radiation;

● Working Temperature: -10℃~50℃;

● 6KV lightning protection; 8KV ESD;

● No fan, no noise, dustproof;

● LEDs indicate operation status.


Item

Description

Interface

Input  Voltage

AC100V~AC240V

Data Input

1×RJ45

PoE output

1×RJ45

PoE

PoE Power Supply Type

End-span/Mid-span

PoE Power Output

DC 54V/60 watts max.
Support 15W/30W(IEEE802.3 af/at) and
60W high power PoE

Power Pin Assignment

1/2(-), 3/6(+), 4/5(+), 7/8(-)

Ethernet Port

Communication Port

1×RJ45 Input

Transmission Rate

10/100/1000Mbps

Transmission Medium

Cat5/5e/6 Cable

Distance

100m (Max.)

Status

Power LED

1 (Red)

PoE LED

≤30W green on, >30W red on

Protection

Surge Protection

PoE Power1KV(Differential Mode),2KV(Common Mode)1.2/50us8/20us
Ethernet2KV(Differential Mode),6KV(Common Mode)10/7000us

ESD

1a  Contact Discharge Level 3
1b  Air Discharge Level 3
Per: IEC61000-4-2

Environment

Working Temperature

-10℃~50℃

Storage Temperature

-40℃~85℃

Humidity(Non-condensing)

0~90%

Mechanics

Dimension(LxWxH)

160mm×64mm×60mm

Material

ABS Plastics

Color

Black

Weight

200g

Designation

Quantity

PoE Injector

1pc

AC Power Cable

1pc

Power Buckle

1pc

User Manual

1pc
