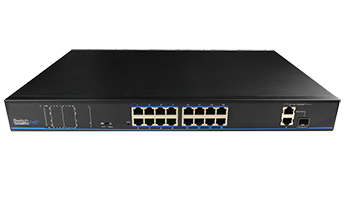

 16 Ports PoE Fast Unmanaged Ethernet Switch

16 Ports PoE Fast Unmanaged Ethernet Switch

UTP1-SW1602TS-POE
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

The 16 ports PoE switch is an unmanaged PoE Ethernet switch along with 16 * 10/100Base-TX downlink PoE ports and 2 * 10/100/1000Base-T uplink Ethernet ports featuring 30-watt 802.3at PoE+ as well as 1 additional Gigabit Combo port. The total PoE power budget is up to 200 watts. It supports real-time PoE output LED display.The device can be widely used in video security monitoring systems, network projects, etc.


Advantage

√ Provide 16*10/100Base-TX downlink PoE Ethernet ports, 2*10/100/1000Base-T uplink Ethernet ports and 1*1000Base-X/SFP.

√ Downlink Ethernet ports support PoE+, each port supports max. 30W output.

√ Support power consumption indication(LED indicates power output status).

√ Accord with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3 af/at standard.

√ 4K MAC address,2.75Mb cache.

√ Quick installation, easy operation, convenient for wall-mounted, desktop and rack installations.

Model

UTP1-SW1602TS-POE

Downstream Ports

16* 10/100Base-TX( PoE)

Uplink Ports

2*10/100/1000Base-T and 1*1000Base-X/SFP (Combo)

Network Standard

IEEE802.3 ,  IEEE802.3u,  IEEE802.3ab,  IEEE802.3z,  IEEE802.3X

Switching Capacity

7.2Gbps

Packet Forwarding Rate

5.36Mpps

Forwarding Modes

Store and Forward

Packet Buffer

2.75M

MAC Address Table

4K

PoE Standard

802.3af/at(PSE)

PoE Power Method

End-span

PoE Line Pair

1/2(+), 3/6(-)

PoE Output Power

54V DC ,  30 watts max

PoE Budget

180 watts max

CCTV Mode

1. Downlink ports only communicate with uplink ports,

2. Restrain network storm under 2Mbps,

3.Extend transmission distance to 250m,

4.Rate: 10Mbps(Downlink Ports)

Surge Immunity

6KV    Execute: IEC61000-4-5

ESD Immunity

6KV     Contact discharge

8KV       Air discharge

Execute: IEC61000-4-2

Input Voltage

100~240V AC,  50/60Hz

Power Consumption

200W(Including PoE)

Operating Temperature

-10℃~50℃

Storage Temperature

-40℃~85℃

Operating Humidity

5%-95%

DimensionL×W×H

442mm×207mm×44.5mm

Weight

2.69kg

Certification

CE,  FCC,  ROHS

UTEPO, 16 ports poe switch
UTEPO, poe switch

Designation

Quantity

UTP1-SW1602TS-POE

1

AC Power Line

1

Mounting brackets

1

User Manual

1
