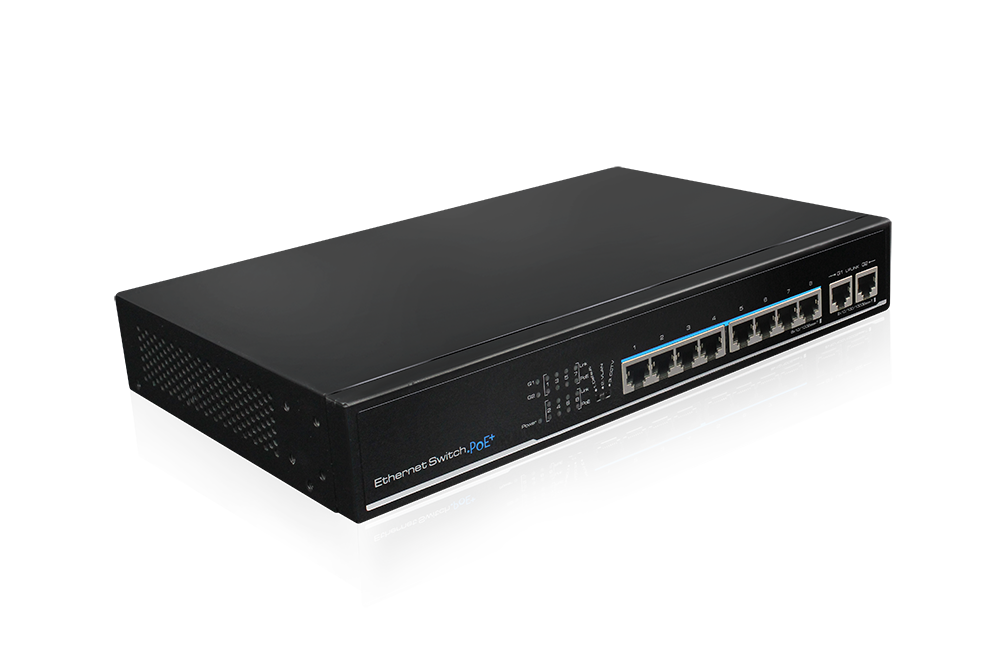

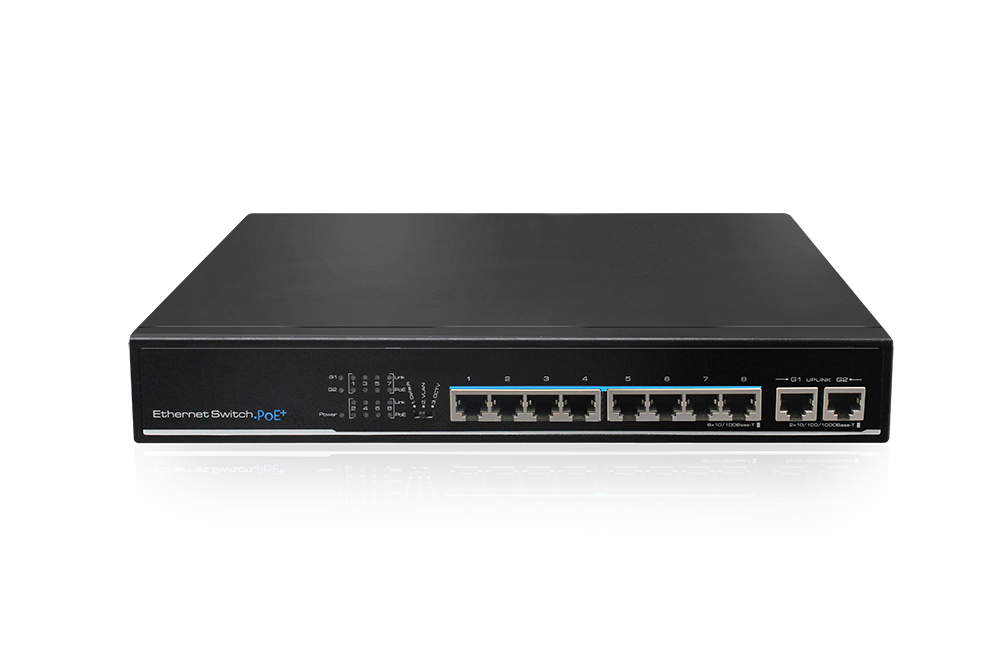

 8 Ports 100Mbps PoE Switch (2 Gigabit Uplink)

8 Ports 100Mbps PoE Switch (2 Gigabit Uplink)

SF10P-HM
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

The 8 ports PoE Ethernet Switch with 8 downlink PoE ports and double 1000Mbps uplink ports is a security surveillance Ethernet Switch which is applicated in high definition network surveillance and security system. The product fully combines the characteristics of security surveillance. Besides, the 8 downlink PoE ports support IEEE802.3af/at standard. The ESD, 6KV lightning protection and surge protection circuits improve product stability. Also the device supports one key CCTV mode which realizes VLAN function, restrains the network storm, protects the information security, prevents the virus spread and cyber attack, fully satisfies the Ethernet video security surveillance system and Ethernet projects needs.


Advantage

Main Function: Provide 8*10/100Base-T Ethernet ports(PoE) , 2*10/100/1000Base-T uplink Ethernet ports.

Compliance with standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at.

PoE Power Display: 8 ports support LED display PoE working status. whole machine reaches 110W PoE power output.

One-key Smart: Support three kinds of working modes (Default, VLAN, CCTV).

Protection: Support  6KV surge immunity, EFT testing standard.

Operation Environment: Support -10℃~50℃ wide-temperature.

UTEPO
The UTEPO Security-exclusive PoE switches are born for small and medium-sized HD IP surveillance projects. With PoE function, the switches could supply power along with data for AP, IP camera and IP phone. Except for the proven advantages of PoE, including safe power, simple installation, and flexible deployment, the UTEPO switches are equipped with three operating modes (Default, VLAN, CCTV), as well as PoE watchdog under VLAN and CCTV, which improves the alive rate of cameras while with less manual management and maintenance.
Key Feature
PoE Watchdog
Detect PoE Camera when it is frozen, and reboot it automatically.
6KV Surge Protection
With 6KV surge protection on both port and power supply, it prevents the switches from damage caused by indirect lightning.
Three Operating Modes
Default: All port can be communicated freely.
VLAN: The Downlink ports are isolated respectively, but can communicate with Uplink Ports. Support PoE Watchdog.
CCTV: The bandwidth of Downlink ports is limited to 10M, but with long transmission distance of 250 meters. Support PoE watchdog.
Outstanding Power Supply
The downstream ports support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output for single port and 60/60/93/110/135/225W for the total PoE budget.
Application
As shown in the picture, the 5/6/9 ports PoE switches can be used to connect to the powered devices (IP camera, AP and IP phone) via cables which is very convenient and cost-effective for places like boutique, small shop, coffee house and warehouse etc. And the 10/18/26 ports PoE switches can be used in small or medium sized office and restaurant to connect some extra desktops or laptops. In addition, they are suitable for SMB or entry-level enterprise solution which demands stable, surveillance, IP phone, IP camera or wireless applications.

Model

SF10P-HM

Downstream Ports

8* 10/100Base-TX (PoE)

Uplink Ports

2x 10/100/1000Base-T Ethernet Ports

Network Standard

IEEE802.3 , IEEE802.3u, IEEE802.3ab, EEE802.3x

Switching Capacity

5.6Gbps

Packet Forwarding Rate

4.0544Mpps

Forwarding Modes

Store and Forward

Packet Buffer

4M

MAC Address Table

16K

PoE Standard

802.3af/at(PSE)

PoE Power Method

End-span

PoE Line Pair

1/2(+)3/6(-)

PoE Output Power

54V DC , 30 watts max

PoE Budget

110 watts max

PoE Power Display

Support 8 LED digital tube  to display machine PoE power usage

One-key Smart

Default: All ports are free to communicate

CCTV: The further transmission distance up to 250m

VLAN: The downs ports are isolated from each other

Surge Immunity

6KV Execute:IEC61000-4-5

ESD Immunity

6KV Contact discharge

8KV  Air discharge

Execute:IEC61000-4-2

Input Voltage

AC 100V~240V

Power Consumption

120W (Include PoE)

Operating Temperature

-10℃~50℃

Storage temperature

-40℃~85℃

Humidity(Non-condensing)

5%-95%

DimensionL×W×H

294mm×180mm×44mm

Weight

1Kg

Certification

CE, FCC, ROHS

poe switch
poe switch

Designation

Quantity

SF10P-HM

1

AC Power Cable

1

User Manual

1
