 UTEPO EPFast Tool

UTEPO EPFast Tool

UTP-T2
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video

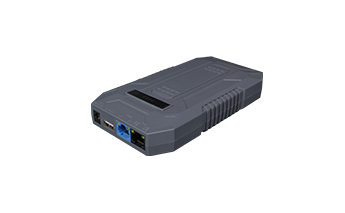

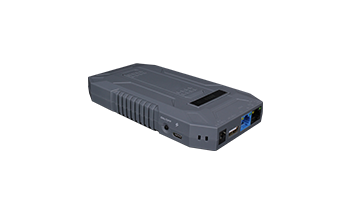

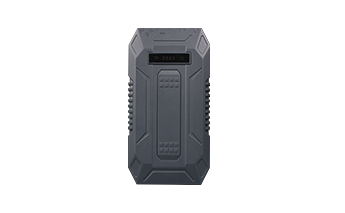

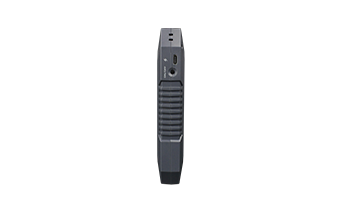

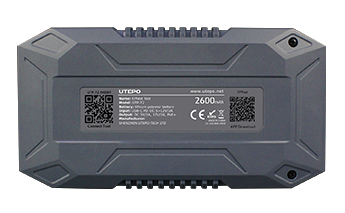

UTP-T2 EPFast Tool is a professional network engineering tool with built-in 2600mAh battery, which could supply power to devices such as cameras and mobile phones. The product supports PoE, PoE diagnosis, and powerful IPC management. After connected its WIFI, you can quickly diagnose the network, install and deploy the cameras through the mobile APP. In addition, it is the ideal tools to provide a professional, simple, visual, safe and convenient network engineering tool for the majority of engineering and network operation and maintenance personnel.

Advantage

√  Built-in battery with 2600mAh capacity

√  Support PoE power supply and diagnosis, 1*PD interface

√  1*12V/2A DC output interface

√  1*5V/2.1A USB output interface

√  1*10/100M Adaptive PoE network port

√  1 type-c charging port

√  Support IPC management

√  Support network diagnostics

UTEPO
UTP-T2 EPFast Tool is a professional network engineering tool with built-in 2600mAh battery, which could supply power to devices such as cameras and mobile phones. The product supports PoE, PoE diagnosis, and powerful IPC management. After connected its WIFI, you can quickly diagnose the network, install and deploy the cameras through the mobile APP. In addition, it is the ideal tool to provide a professional, simple, visual, safe and convenient network for the majority of engineering and network operation and maintenance personnel.
Key Feature
IPC Management
Support real-time monitoring and management, auto identification, angle adjustment, channel name configuration, & screenshot for ONVIF IP cameras. And it is compatible with the management of multi-camera management of HIKVISION, Dahua, UNV and other brands.
Power Supply and Diagnosis
The EPFast Tool supports PoE at the standard of IEEE802.3af/at and DC 12V/2A power, which is convenient for the deployment and debugging for IPC and AP. It also can detect whether the power supply is normal as well as its mode, with which you can quickly find the abnormal in PoE and PoE line sequence, and diagnose and optimize the power supply mechanism for existing terminals.
Supply both power and data for IEEE802.3af/at IP cameras.
Check if the PSE device is supplying power and its PoE line sequence.
Supply power to non-PoE IP cameras through the DC power (12V/2A).
Strong Power Supply Capacity
With the built-in 2600mAh battery, the EPFast Tool is able to supply power to IP camera, AP, mobile phone and iPad etc. With the default 12V power adapter, you can get your EPFast Tool charged in around 3 hours.
WiFi Transmission
It is recommended max 6 terminal devices to access the EPFast Tool at the same time within the distance of 30 meters. And it is compatible with Apple, Huawei and other major brand devices (mobile phone, iPad).
Network Diagnosis
It can support real-time ping and other tools to diagnose the network connection, including connectivity status, delay and packet loss of the network link, and quickly locate network faults.
APP Installation
Scan the QR code to download EPFast APP (Universal to IOS and Android)

Features

Characteristic

Model

UTP-T2

Power Output

PSE port

DC 54V/30W(max), Support IEEE802.3af/at standard

DC port

DC 12V/2A(max)

USB port

DC 5V/10W(max), Support QC2.0/QC3.0/Samsung/Huawei/MTK protocol,  Apple 2.4A standard 5V output

Power input

Charging port

USB type-C,  DC12V/1.5A Power adapter (included by default)

PD port

PoE detection

Used to detect 1236 power mode or 4578 power mode

Data access

RJ45

1*10/100Mbps Adaptive network port

WIFI

2.4G 150Mbps, 802.11b/g/n

WIFI access

Recommended <6

Battery

Category

Lithium Ion Battery

Maximum capacity

2600mAh(max)

Voltage

14.8V

Maximum charging current

1300mA

Reliability

Working temperature

-5- 50

Working humidity

10%-90% RH

Storage temperature

-40-80

Storage humidity

10%-95% RH

Physical property

Size (length * width * height)

163*85.4*28mm

Material

ABS

Weight

345g

Electrostatic level

Level 3

Certificate

CE

Battery test report

Material Safety Data Sheet(MSDS)

Maritime transport condition identification report

Air transport condition identification report

IPC management

Auto recognition

View camera

Camera screenshot

Channel name modification

Web access

IPC debugging

Ping

Support

Language

Chinese and English switching

Help

Support

EPFast tool
UTEPO, EPFast tool

Designation

Quantity

EPFast Tool

1

Manual

1

Type-c cable

1

DC power cord

1

100-240V to 12V power adapter

1

Pendant

1
