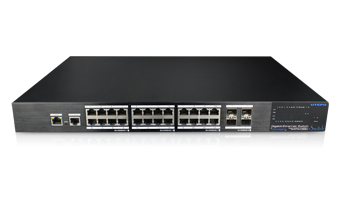

The 24 ports full Gigabit managed Ethernet switch, which provide 24* Gigabit downlink Ethernet ports, 4* Gigabit uplink optical fiber ports. The Products support Web layer-2 network management and Products are widely used in security surveillance, network engineering projects and so on.
Advantages
√ Provide 24* Gigabit downlink Ethernet ports , 4* Gigabit uplink optical fiber ports.
√ Provide web-based layer 2 network management by simple operation.
√ Support high-speed data forwarding, very suitable for large flow of video data forwarding in security surveillance.
√ Support recovery of IP address & user password by one key recovery button.
√ Quick Installation, simple operation, convenient for wall/desk/rack installation.
|
Item |
UTP7524GE-4GF |
|
Downstream Ports |
24* 10/100/1000Base-T RJ45 |
|
Uplink Ports |
4*1000Base-X SFP slot |
|
Network Standard |
IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X |
|
Switch Fabric |
56Gbps |
|
Throughput |
41.66Mpps |
|
Switch Architecture |
Store and Forward |
|
Memory Buffer |
12M |
|
MAC Table |
16K |
|
Surge protection |
6KV Execute: IEC61000-4-5 |
|
ESD |
6KV Contact discharge |
|
8KV Air discharge |
|
|
Execute: IEC61000-4-2 |
|
|
Power Supply |
100~240V AC 50/60Hz |
|
Work temperature |
-10-50℃ |
|
Storage temperature |
-40-85℃ |
|
Humidity(Non-condensing) |
0%-95% |
|
Dimension（L×W×H） |
442mm×305mm×44mm |
|
Weight |
4.35kg |
|
Regulator |
CE, FCC, ROHS |
|
Software Features |
|
|
Port Management |
Support port enabling and disabling |
|
Support port speed settings |
|
|
Support port full-duplex mode |
|
|
Support IEEE802.3x flow control |
|
|
Support port name modification |
|
|
VLAN |
Support of 4K VLAN |
|
supports 802.1Q VLAN protocol |
|
|
Support VLAN based on port |
|
|
Quality of Service |
Support QoS Congestion Management |
|
Support 8 priority queues |
|
|
Queue scheduling: SP, WRR, SP+WRR |
|
|
Support 802.1p CoS/DSCP priority |
|
|
Multicast Management |
Support SNMPV1 / V2 / V3 protocols |
|
Support IGMP Snooping |
|
|
Security Features |
Supports IP, MAC, port, VLAN binding combinations |
|
Support MAC address auto-learning, aging and filtration |
|
|
Support port isolation, port speed limit |
|
|
Support RSTP |
|
|
Support 5 groups of link aggregation |
|
|
Support 802.1X |
|
|
System Management |
Web-based GUI and CLI management |
|
Support FTP / TFTP / HTTP load upgrade |
|
|
Support traffic statistics |
|
|
Support MAC address table query |
|
|
Support IP address, DNS server modifications |
|
|
Support user name and password modification |
|
|
Support for history, log management |
|
|
Support System Configuration Backup |
|
|
Support to recover the default factory settings on reboot |
|
|
Designation |
Quantity |
|
UTP7524GE-4GF |
1 |
|
AC Power Line |
1 |
|
Mounting Brackets |
1 |
|
User Manual |
1 |
