OVERVIEW

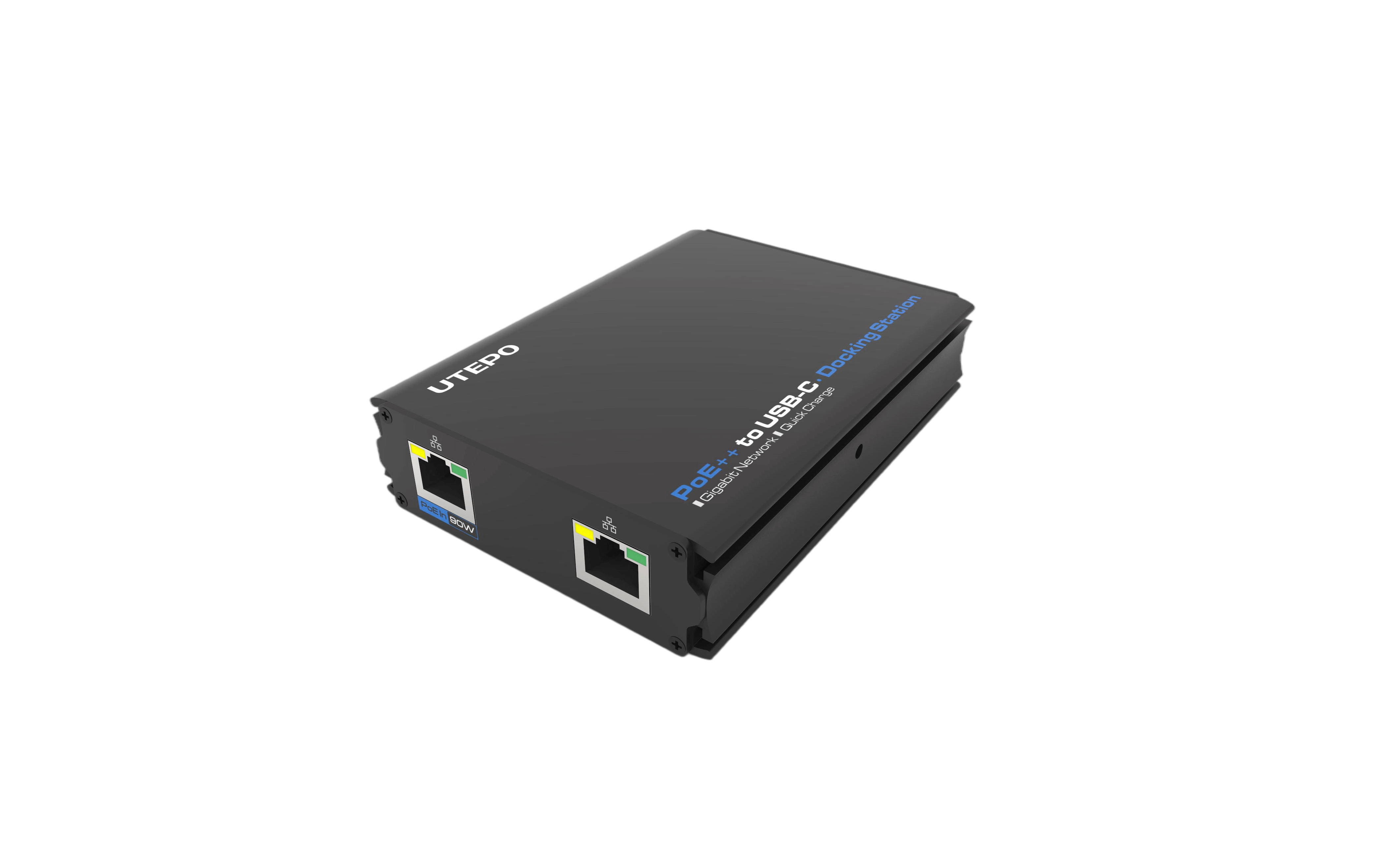

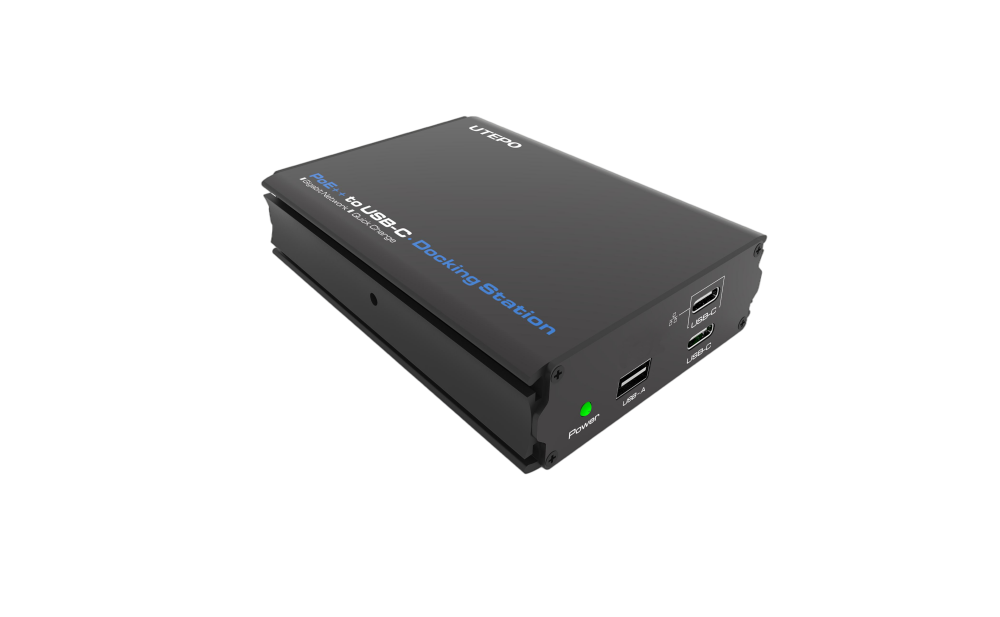

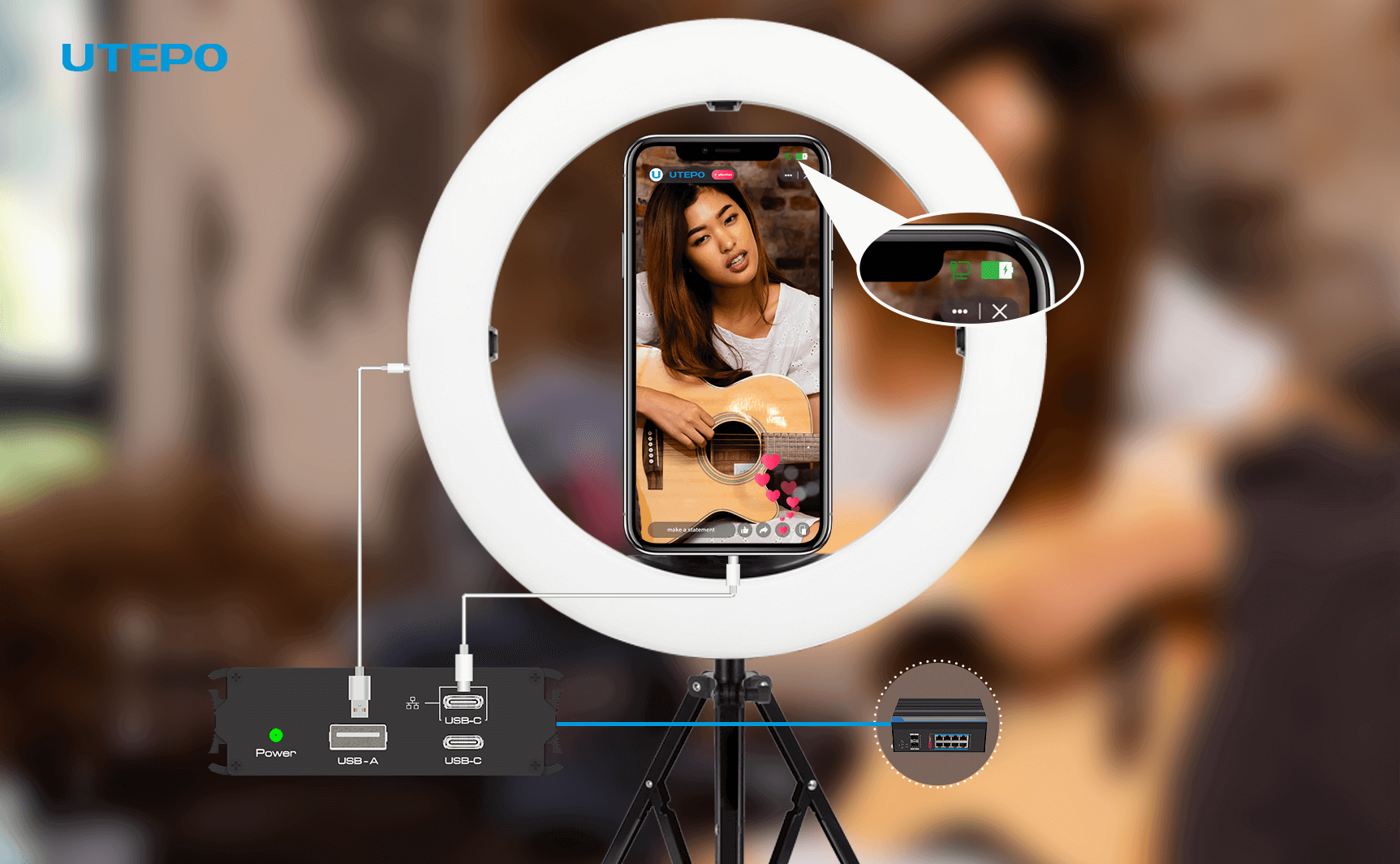

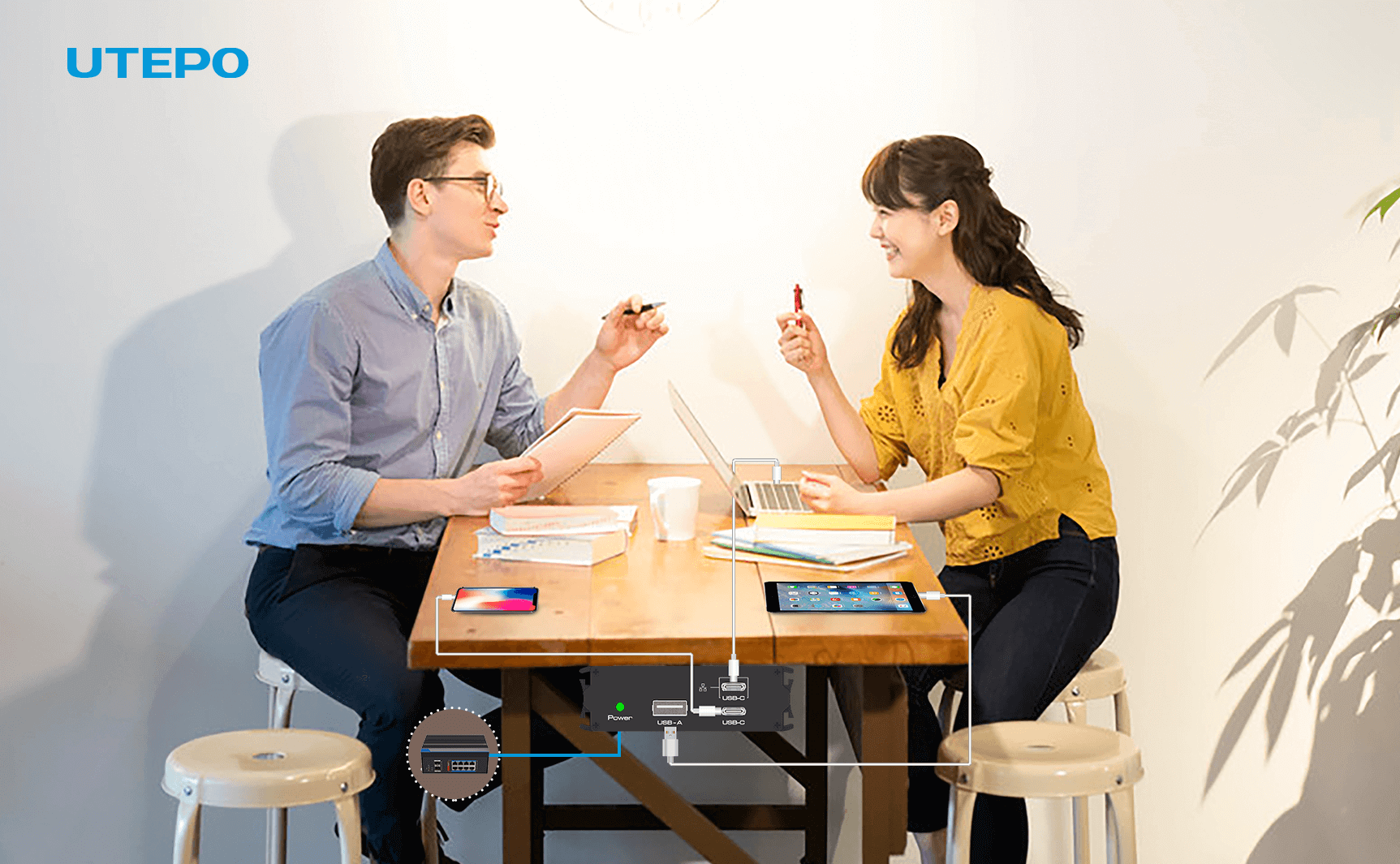

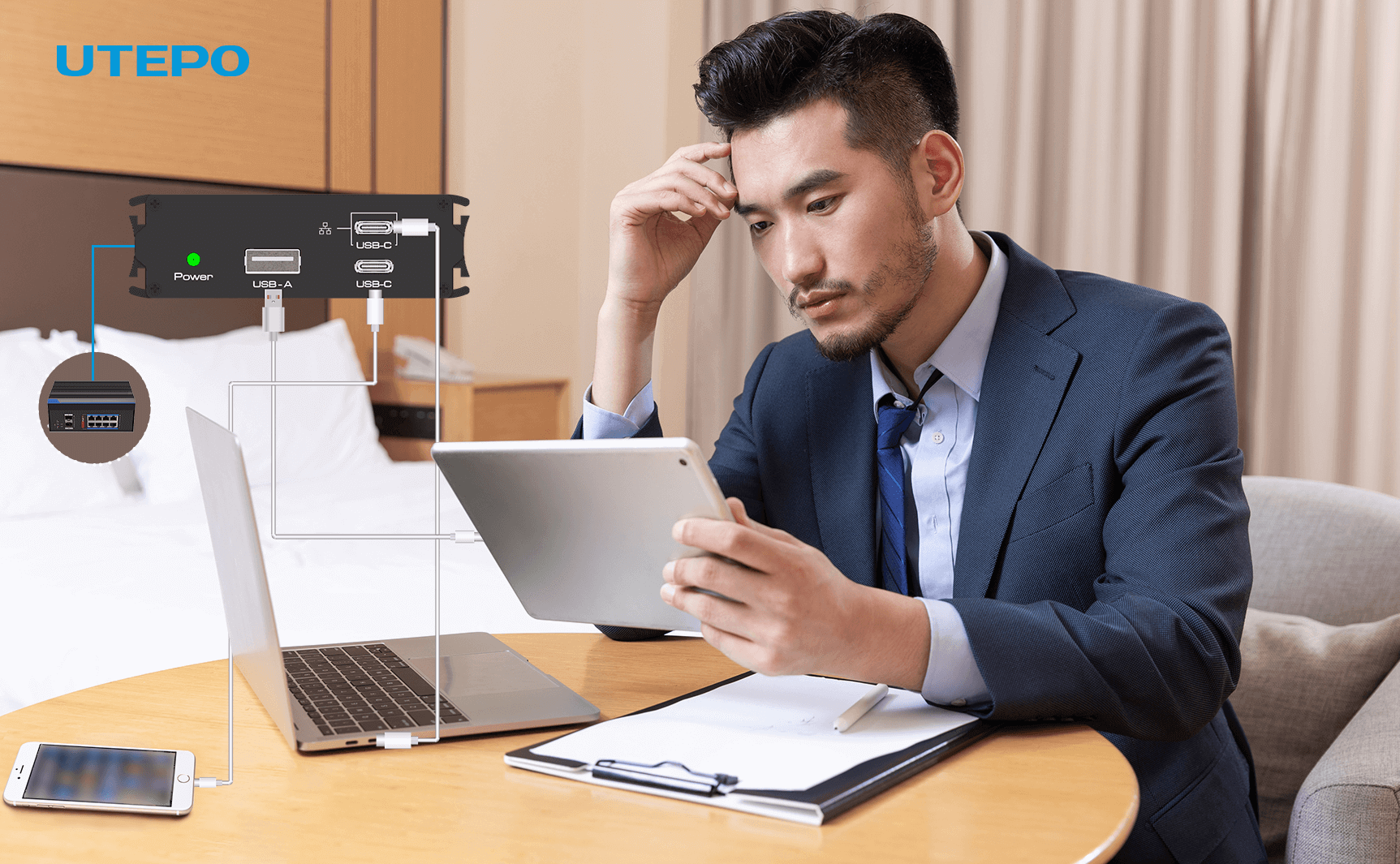

UPD3303-PDD-PQ65 is a PoE++ to USB-C Docking Station. It is different from the existing docking stations on the market and can provide you with functions beyond expectations. It is a docking station adopting PoE++ technology.
It adopts safe low-voltage input, provides Gigabit network output and quick charging through USB-C, compatible with USB-A quick charging, and expands RJ-45 Gigabit network output. It can provide your laptops and mobile devices with a safe quick-charge and Gigabit network at the same time.
FEATURES AND HIGHLIGHTS
Four-in-one for Quick-charge & Gigabit Network
• 1*USB-C: quick-charge up to 65W and Gigabit network at the same time
• 1*USB-C: quick-charge up to 20W
• 1*USB-A: quick-charge up to 18W
• 1*RJ-45: Gigabit network, transmission with lossless rate
High Efficiency & Great Compatibility
• Quick-charge
Supports 2*quick-charge USB-C ports, compatible with PD2.0/3.0, QC4.0, QC3.0/2.0
Supports 1*quick-charge USB-A port, compatible with QC3.0/2.0
Supports charging laptops and mobile devices
Total charging power budget: 65W
• Safe using with PoE++ power input
Compatible with IEEE 802.3bt
|
Items |
UPD3303-PDD-PQ65 |
||
|
Hardware Specifications |
|||
|

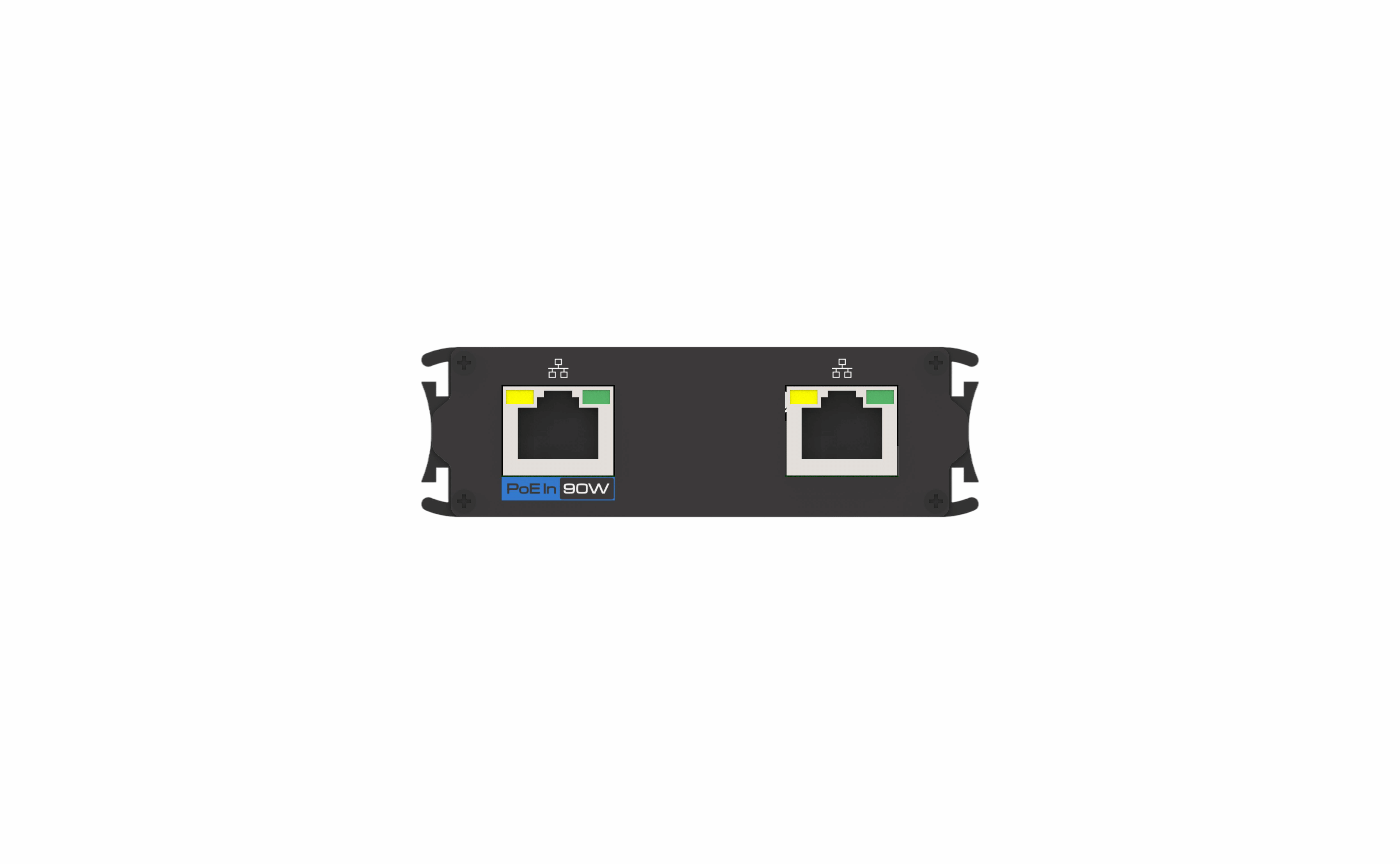

Input Port |
1* RJ-45 port: |
||
|

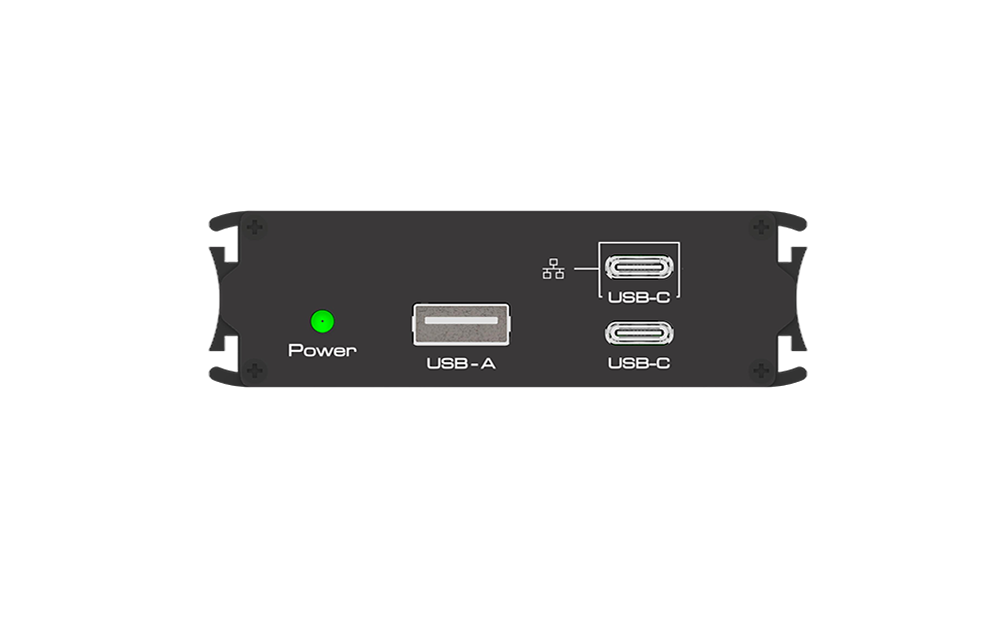

Output Port |
1* USB-C (Quick-charge + 10/100/1000Mbps network) |
||
|
Led Indicator |
1*Power Indicator (Green) |
||
|
Dimensions (mm) |
114mm*82mm*25mm |
||
|
Net Weight |
265g |
||
|
Installation |
Desktop/Hanging on the back of the desktop |
||
|
Material |
Metal shell |
||
|
Protocol |
|||
|
Protocol Supported |
USB-C (Quick-charge + Network) |
USB-C (Quick-charge) |
USB-A (Quick-charge) |
|
PD3.0 |
PD3.0, PPS, QC4.0, QC3.0/2.0 |
QC3.0/2.0 |
|
|
Power Budget |
|||
|
Single Port |
USB-C (Quick-charge + Network) |
USB-C (Quick-charge) |
USB-A (Quick-charge) |
|
65W (Max) |
20W (Max) 5V/3A, 9V/2.22A, 12V/1.67A PPS: 3.3V~11V/1.8A
|
20W (Max) 5V/3A, 9V/2A, 12V/1.5A, 20V/0.9A
|
|
|
Double Ports |
USB-C (Quick-charge + Network) + USB-C (Quick-charge)
65W in Total (Max) PPS: 3.3V~11V/1.8A |
USB-C (Quick-charge + Network) + USB-A (Quick-charge)
65W in Total (Max) |
USB-C (Quick-charge) + USB-A (Quick-charge)
15W in Total (Max) |
|
Triple Ports |
USB-C (Quick-charge + Network) + USB-C (Quick-charge) + USB-A (Quick-charge):
60W in Total (max) |
||
|
PoE |
|||
|
PoE Standard |
IEEE 802.3bt Power over Ethernet |
||
|
PoE Pin Assignment |
3/6/4/5 (+), 1/2/7/8(-) |
||
|
Input Voltage |
41.1~57V DC |
||
|
Input Voltage |
41.1~57V DC |
||
|
Input Power |
≥71.3W |
||
|
Environments |
|||
|
Operating |
Temperature: -5℃~45℃ |
||
|
Storage |
Temperature: -40℃~75℃ |
||
|
Certifications |
|||
|
Certifications |
CE, FCC |
||
|
Items |
Quantity |
|
Docking Station |
1 pc |
|
Mounting Accessory |
1 set |
|
Quick Installation Guide |
1 pc |
