OVERVIEW

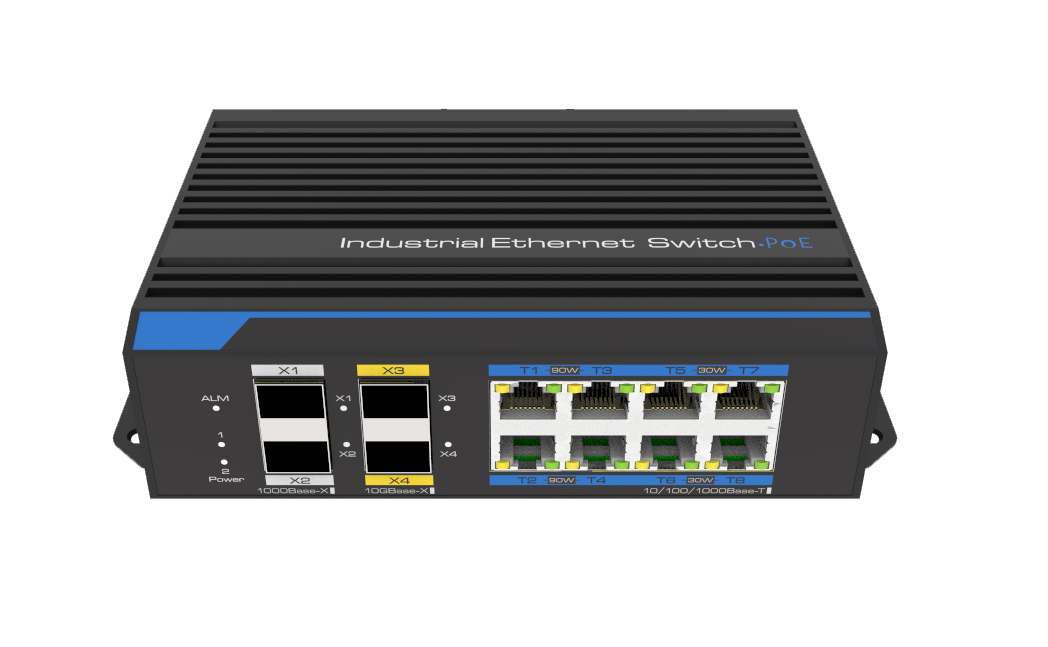

UTP7612S-PSD360 is Industrial 4-Port Gigabit PoE++ 4-Port Gigabit PoE+ 2-Port 10G SFP+ 2-Port 1G/2.5G SFP L2 Managed Ethernet Switch.
This switch provides 8 Gigabit Ethernet RJ-45 ports, 2*10G SFP+ ports and 2*1G/2.5G SFP ports. It meets IEEE 802.3af/at/bt standard. All RJ-45 ports support Power-over-Ethernet, 1~4 ports deliver up to 90W(PoE++) power per port, 5~8 ports deliver up to 30W(PoE+) power per port. The switch supports the Q-PoE (Quick PoE) technology, which enables PoE power supply immediately upon switch startup without waiting for switch system software control. The switch supports the P-PoE (Perpetual PoE) technology, which enables PoE power supply without interruption when switch is restarting and restores network quickly.
The switch has extensive L2 management functions, such as 802.1Q VLAN, 802.1p QoS, SNMP, Fast-Ring, ERPS and PoE control. It can be easily managed via a WEB GUI (http/https), CLI (telnet/ssh/console) or SNMP.
FEATURES AND HIGHLIGHTS
Abundant Interfaces
• 4*10/100/1000Base-T PoE++ RJ-45 ports
• 4*10/100/1000Base-T PoE+ RJ-45 ports
• 2*1G/2.5G or 10GBase-X SFP+ ports
• 2*1G/2.5GBase-X SFP ports
• 1*RJ-45 Console port
• 1*USB 3.0 port
• 1*RS485
Industrial Design
• Working temperature:-40~75℃
• Redundant power supply
• 6kV contact discharge, 8kV air discharge ESD protection

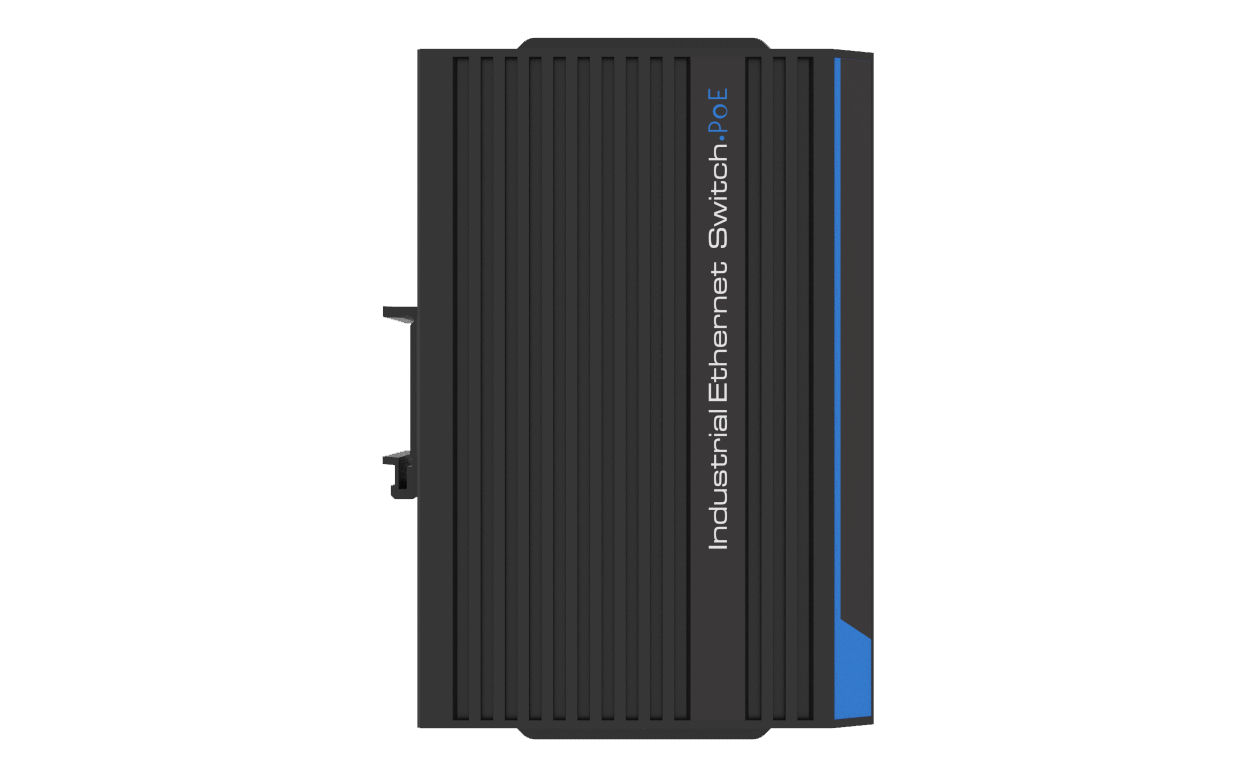

• Fan-less metal shell design
• DIN-rail/wall mounted/desktop installation
Layer 2 Management Function
• 802.1Q VLAN
• 802.1p QoS
• SNMP
• STP/RSTP/MSTP
• Fast-Ring
• ERPS
• IGMP snooping
• DMS (Dashboard management system)
UTP7612S-PSD360 provides 4 Gigabit Ethernet RJ-45 ports featuring 90-watt 802.3bt PoE++, 4 Gigabit Ethernet RJ-45 ports featuring 30-watt 802.3at PoE+, 2 10G SFP+ ports and 2 1G/2.5G SFP ports. The switch supports PoE-based technologies:
● Q-PoE (Quick PoE): enable PoE power supply immediately upon switch startup without waiting for switch system software control.
● P-PoE (Perpetual PoE): enable PoE power supply without interruption when switch is restarting and restores network quickly.
● PoE Schedule: provide PoE management and on-off schedule for PoE devices.
● Outstanding IEEE 802.3bt Solution for Industrial Environment
Complying with the IEEE 802.3bt PoE++ technology, UTP7612S-PSD360 provides 4*GE PoE++(90W) ports. and 4*GE PoE+(30W) ports. And it also provides 2*10G SFP+ ports and 2*1G/2.5G SFP ports to meet different demands.
● Convenient Auxiliary Interfaces
1*RS485: Support customization services to access various IoT devices or as a serial server. Provide Modbus conversion and can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors.
1*USB 3.0: Support local update for software, avoiding device crash caused by power failure during web upgrade.
1*Relay: Support relay alarm for power failure, cable link down, and PoE link off.
● ONVIF & Smart Topology View
UTP7612S-PSD360 provides ONVIF services for effective recognition between video surveillance and other IP-based physical security products. That is to say, the switches could automatically recognize ONVIF-supported IP cameras, network video recorders (NVRs) and other IP devices like access control systems. Then, they form a virtual topology view in the WEB GUI through LLDP, from which users can learn information about the connected devices, including IP address, device type, device name, MAC address, etc.
>>The following functions would be supported in the near future.
● RS485: UART to Ethernet.
● USB 3.0: 4G/5G Module Supported.
|
● Fanless Design |
● Redundant Power Supply |
|
Fanless and noiseless. Wave shell design ensures better natural cooling. |
Support dual DC 48~57V power supplies, one of which is used as a redundant power supply. |
|
|
|
● One-key Smart Technologies
● Abundant L2 Management Function
It supports L2 management functions, such as 802.1Q VLAN, 802.1p QoS, SNMP, STP/RSTP/MSTP, Fast-Ring, ERPS, IGMP snooping, DMS (Dashboard management system), etc.
● Support Fast Ring
Support fast ring with self-healing time in 20ms. When the main link is broken, the backup link begins to work.
● Stable for Various Environment
Industrial grade design (-40℃~+75℃), support 6kV surge immunity and 8kV ESD protection.
|
Item |
UTP7612S-PSD360 |
|
Hardware Specifications |
|
|
Ethernet Ports |
4*10/100/1000Base-T PoE++ RJ-45 |
|
4*10/100/1000Base-T PoE+ RJ-45 |
|
|
2*1G/2.5G or 10GBase-X SFP+ |
|
|
2*1G/2.5GBase-X SFP |
|
|
Management Ports |
1*RJ-45 Console |
|
1*Relay |
|
|
Serial Port |
1*RS-485 |
|
RS-485 signal: D+, D- |
|
|
Check bit: None, Even, Odd, Space, Mark |
|
|
Data bit: 5, 6, 7, 8bit |
|
|
Stop bit: 1, 1.5, 2bit |
|
|
Baud rate: 300~115200bps |
|
|
Load capacity: RS-485 port supports 32-point polling environment(128-point could be customized) |
|
|
Direction control: RS-485 adopts automatic data flow control technology |
|
|
USB Port |
USB3.0 |
|
Init Button |
Short press to restart the switch, long press >5s to initialise the system |
|
LED Indicators |
2*Power supply indicators, 1*Alarm indicator, 2*SFP+ port indicators, 2*SFP port indicators |
|
Cable |
Cat5 or better |
|
Dimensions (W*D*H) |
163mm*110.5mm*46.5mm |
|
Net Weight |
0.82kg |
|
Input Voltage |
Support redundant power supply, Power 1 (Main): 48~57V DC, Power 2 (Backup): 48~57V DC |
|
Power Consumption |
≤370W(Full load, include PoE) |
|
Installation |
DIN-rail/Desktop/Wall mounted |
|
Material |
Metal shell |
|
Switch Property |
|
|
Forwarding Modes |
Store and Forward |
|
Switching Capacity |
66Gbps/non-blocking |
|
Packet Forwarding Rate |
49.1Mpps |
|
MAC Table |
16k, supported auto learning |
|
Port Buffer |
1Mbit |
|
Jumbo Frame |
9kB |
|
PoE |
|
|
PoE Power Supply Type |
End-span |
|
PoE Standard |
IEEE 802.3af/at/bt |
|
PoE Pin Assignment |
1~4 ports: 3/6/4/5(+), 1/2/7/8(-); 5~8 ports: 1/2(+), 3/6(-) |
|
PoE Budget |
1~4 ports: 90W max for each port, 5~8 ports: 30W max for each port, 360W max for whole switch |
|
Environments |
|
|
Surge protection |
IEC61000-4-5, Power: 4kV, Data Port: 6kV |
|
ESD |
IEC61000-4-2, Level 3: Contact Discharge: 6kV, Air Discharge: 8kV |
|
Operating |
Temperature: -40°C~75°C |
|
Relative Humidity: 5%~95% (Non-condensation) |
|
|
Storage |
Temperature: -40°C~85°C |
|
Relative Humidity: 5%~95% (Non-condensation) |
|
|
Software Architecture |
|
|
System State |
|
|
System Status |
• Device Name |
|
• MAC Address |
|
|
• Firmware Version |
|
|
• Hardware Version |
|
|
• System Time |
|
|
• Update Time |
|
|
Traffic Statistics |
• Port No |
|
• Sent Frame Statistics |
|
|
• Received Frame Statistics |
|
|
MAC Address Table |
• Sort Type |
|
• MAC Address |
|
|
• VLAN ID |
|
|
• Port |
|
|
• Address Type |
|
|
Port Configuration |
|
|
Port Setting |
• Port State |
|
• Port Speed |
|
|
• Duplex Mode |
|
|
• Flow Control |
|
|
• Port Range |
|
|
Rate Limit |
• Enable and Disable |
|
• Port Range |
|
|
• Input Speed Limit |
|
|
• Output Speed Limit |
|
|
Storm Control |
• Port Range |
|
• Broadcast Storm |
|
|
• Multicast Storm |
|
|
• Unknown Unicast Storm |
|
|
Port Isolation |
• Port Range |
|
• Port Isolation |
|
|
LLDP Configuration |
• Enable and Disable |
|
• Holdtime |
|
|
• Interval Time |
|
|
• Admin Status |
|
|
• Port Range |
|
|
LLDP Neighbors |
• total entries displayed |
|
• Device |
|
|
• Mac Address |
|
|
• IPv4 Address |
|
|
• Local-port |
|
|
• Holdtime |
|
|
• Port-ID |
|
|
• Capability |
|
|
Mac Limit |
• Enable and Disable |
|
• Port Range |
|
|
• Mac Limit Num |
|
|
PoE Setting |
• Power setting |
|
• Power status |
|
|
• Port status and control |
|
|
Ethernet Switch |
|
|
Link Aggregation |
• Aggregated Load Pattern |
|
• Trunk Name |
|
|
• Aggregation Pattern |
|
|
• Port Range |
|
|
802.1Q VLAN |
• Port Range |
|
• Link Type |
|
|
• PVID |
|
|
• vlan-allowed |
|
|
• vlan-untagged |
|
|
802.1p QoS |
• Enable and Disable |
|
• QoS Scheduling |
|
|
• Priority |
|
|
DSCP QoS |
• Enable and Disable |
|
• DSCP Mark Range |
|
|
• DSCP Priority |
|
|
WRR Configuration |
• bandwidth weights |
|
IP Service |
|
|
DHCP Server |
• Enable and Disable |
|
• Client Lease Time |
|
|
• DNS Address |
|
|
• WINS Server |
|
|
• Pool Name |
|
|
• Network Interface(VID) |
|
|
• Gateway/Subnet |
|
|
• Start IP Address |
|
|
• Max Client Number |
|
|
IP Multicast |
|
|
IGMP Snooping |
• IGMP Interception Setting |
|
• IGMP Query |
|
|
• Static multicast MAC address |
|
|
• VLAN ID |
|
|
• Port Range |
|
|
Security Configuration |
|
|
802.1X Authentication |
• Global Setting |
|
• Timing Update Authentication |
|
|
• Radius Server Setting |
|
|
• Server Port Setting |
|
|
• Port Setting |
|
|
• Port Range |
|
|
Local Radius Setting |
• User login |
|
• User password |
|
|
• Radius user settings |
|
|
AAA |
• Authentication login |
|
Static Address Lock |
• Enable and Disable |
|
• MAC Address |
|
|
• VLAN ID |
|
|
• Port |
|
|
MAC Dynamic Aging |
• Aging Time |
|
Reliability |
|
|
Rapid spanning tree |
• Enable and Disable |
|
• STP Version |
|
|
• Device Priority |
|
|
• Message Sending Period |
|
|
• Message Maximum Lifetime |
|
|
• Port State Transition Delay |
|
|
• This Bridge Update Message |
|
|
• Modify Configuration |
|
|
MSTP Region Configuration |
• Enable and Disable |
|
• Region name |
|
|
• Version |
|
|
• Hello Time |
|
|
• Max.Age |
|
|
• Forward Delay |
|
|
• Max. Hops |
|
|
MSTP instance configuration |
• Instance ID |
|
• Corresponding VLANs |
|
|
• Priority |
|
|
MSTP Port Configuration |
• Path Cost |
|
• Port Priority |
|
|
• Point-to-point |
|
|
• Admin Edge |
|
|
• Auto Edge |
|
|
• Restrict Role |
|
|
• Restrict TCN |
|
|
• BPDU Filter |
|
|
• BPDU Guard |
|
|
• Root Guard |
|
|
• Port Range |
|
|
MSTP instance information |
• Instance ID |
|
• MSTP Bridge Information |
|
|
• MSTP instance information |
|
|
FastRing Protect |
• Enable and Disable |
|
• Fast Ring Network Group 1 |
|
|
• Fast Ring Network Group 2 |
|
|
Loopback Protect |
• Enable and Disable |
|
• Protect Automatic Recovery |
|
|
• Disable Loop Port Time |
|
|
• Port Range |
|
|
• Port Loop Detection |
|
|
ERPS Ring |
• Ring Number |
|
• East Interface |
|
|
• West Interface |
|
|
ERPS Instance |
• Enable and Disable |
|
• Name |
|
|
• ID |
|
|
• Ring Number |
|
|
• Level |
|
|
• RAPS VLAN |
|
|
• Owner Interface |
|
|
• Subring Blocking |
|
|
• Associated Instance |
|
|
Network Diagnosis |
|
|
ICMPv4 |
• Ping IPv4 |
|
ICMPv6 |
• Ping IPv6 |
|
Traceroute |
• Destination IP |
|
Alarm Management |
|
|
Alarm Host |
• Enable and Disable |
|
• Alarm Type |
|
|
• Power Supply |
|
|
• Port Network |
|
|
• Port PoE |
|
|
DMS |
|
|
Device List |
• Enable and Disable |
|
• Type in List |
|
|
Topology View |
• Topology View |
|
System Management |
|
|
Port Mirroring |
• Enable and Disable |
|
• Monitor Port |
|
|
• Mirror Port Range |
|
|
• Collect Data |
|
|
SNMP |
• Enable and Disable |
|
• SNMP Gateway |
|
|
• SNMP Version |
|
|
• Read-only Group Name |
|
|
• Read and Write Group Name |
|
|
• SNMP V3 setting |
|
|
Telnet |
• Enable and Disable |
|
HTTP |
• HTTP and HTTPS |
|
Time |
• Time Setting |
|
• World Time Zone |
|
|
• NTP Server |
|
|
• System Time |
|
|
• PC Time |
|
|
Syslog |
• Enable and Disable |
|
• Show Type |
|
|
• Information Processing |
|
|
Management |
• Restore Factory Value |
|
• System Reboot |
|
|
• Download Configuration File |
|
|
• Upload Configuration File |
|
|
• Choose upgrade file |
|
|
User Setting |
• Access Privilege |
|
• Username |
|
|
• Input password |
|
|
• Confirm password |
|
|
• Password type |
|
|
Timing Restart |
• Every day |
|
• Every week |
|
|
• Every month |
|
|
Manage IP Address |
• Access |
|
• Manage VLAN |
|
|
• IP Addr |
|
|
• Subnet mask |
|
|
• Default gateway |
|
|
• DNS address |
|
|
• IPv6 address |
|
|
• IPv6 default gateway |
|
|
One Key Smart |
• CCTV Mode |
|
• Device Lock |
|
|
• Fast Ring |
|
|
• Device Online |
|
|
Item |
Quantity |
|
Switch |
1 pc |
|
Accessory |
1 set |
|
Quick Installation Guide |
1 pc |
