OVERVIEW
This series of switches is enterprise-class stackable routing switch with fixed, built-in 10GbE uplink ports. It has great performance on availability, scalability, security and energy efficiency. This fully managed switch provides high switching capacity, supports wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols. Thanks to the VSF (Virtual Switch Framework), the management work for the network administrator is simplified. Multiple switches can be virtualized into one logical device, achieving the sharing of information and data tables between different switches, which provides more reliability. It delivers high-performance, hardware-based on IP routing. RIP, OSPF, and BGP provide dynamic routing by exchanging routing information with other Layer 3 switches and routers. It is ideal for aggregation or access layer for campus, enterprise, government and internet service provider networks.
FEATURES AND HIGHLIGHTS
Abundant Interfaces

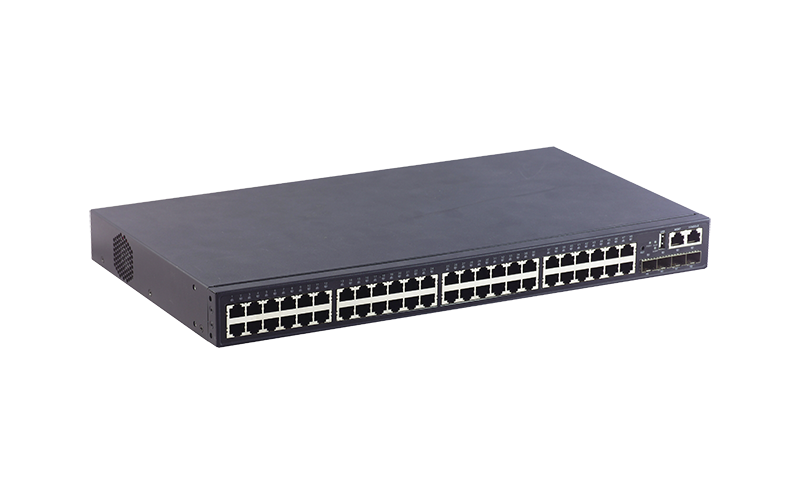

• 48*10/100/1000 Base-T RJ-45 ports
• 4*10GBase-X SFP+ ports
• 1*RJ-45 Ethernet Management port
• 1*Console port
• 1*Reset port
• 1*USB2.0 interface
Layer 3 Features
• RIPv1/v2
• OSPFv2/v3
• BGP4/BGP4+
• VRRP
• IGMP
• IPv6 Support
Layer 2 Features
• 802.1Q VLAN
• QoS
• STP/RSTP/MSTP
• ERPS
• IGMP snooping
• LACP
• LLDP
VSF (Virtual Switch Framework)
Virtual Switch Framework can virtualize multiple switches into one logical device, achieving the sharing of information and data tables between different switches.
|
Items |
UTP5652S-L3(V2) |
|
Hardware Specifications |
|
|
Downlink Port |
48*10/100/1000BASE-T RJ-45 ports |
|
Uplink Port |
4*1/10GBASE-X SFP+ |
|
Management Port |
1* RJ-45 Ethernet management port |
|
Cable |
Cat5 or better |
|
Dimensions (W*D*H) |
440mm*240mm*44mm |
|
Single Package Weight |
4.25kg |
|
Single Package Dimensions |
530mm*322mm*98mm |
|
Power Supply |
AC: 100~240VAC, 50~60Hz |
|
Power Consumption |
<50W(Full load) |
|
Material |
Metal shell |
|
Switch Property |
|
|
Forwarding Modes |
Store and Forward |
|
Switching Capacity |
320Gbps, non-blocking |
|
Packet Forwarding Rate |
131Mpps |
|
Jumbo frame |
10K |
|
MAC Table |
16K, supported auto learning |
|
ARP Table |
4K |
|
Routing Table |
1K |
|
ACL Table |
1K |
|
Environments |
|
|
Operating |
Temperature: 0℃~50℃ |
|
Storage |
Temperature: -40℃~70℃ |
|
ESD protection |
Contact Discharge: ±8kV, Air Discharge: ±15kV |
|
Surge protection |
6KV Execute IEC6100-4-5 |
|
Certificate |
|
|
Regulatory compliance |
CE FCC |
|
Software Architecture |
|
|
L1, L2 Features |
|
|
L1 Standard |
IEEE 802.3(10BASE-T), IEEE 802.3u(100BASE-TX), IEEE 802.3z(1000BASE-X), |
|
LLDP & LACP |
Port loopback detection |
|
Mirroring |
N:1 Port Mirroring |
|
Spanning Tree |
IEEE 802.1D(STP) |
|
VLAN |
802.1Q, 4K VLAN |
|
IGMP |
IGMP v1/v2/v3 Snooping and L2 Query |
|
Security |
Port Security |
|
Port Configure |
Flow Control: HOL, IEEE 802.3x |
|
L3 Features |
|
|
IP Routing |
Static Routing, RIPv1/v2, OSPFv2, BGP4, OSPFv3, BGP4+ |
|
IGMP |
IGMP v1/v2/v3, IGMP Proxy |
|
ARP |
ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit |
|
DNS |
DNS Client, DNS Relay |
|
GRE |
GRE Tunnel |
|
Advanced Configure |
|
|
IPv6 |
6to4 Tunnel, Configured Tunnel, ISATAP Tunnel, GRE Tunnel(UTP5652S-PSB-L3 doesn’t support) |
|
QoS |
8 Queues |
|
ACL |
IP ACL, MAC ACL, IP-MAC ACL, User-Defined ACL |
|
Security |
802.1x AAA |
|
DHCPv4/v6 Traffic |
DHCP Server/Client for IPv4/IPv6 |
|
Traffic Monitor |
sFlow Traffic Analysis |
|
Security Network |
CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6 |
|
Data Center Features |
VSF (Virtual Switch Framework), up to 4 stack members |
