OVERVIEW

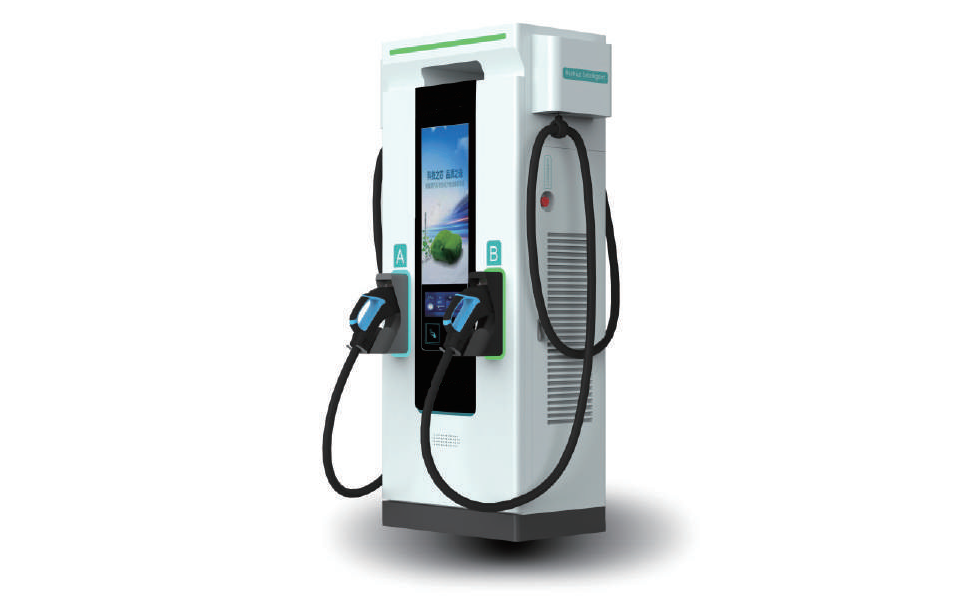

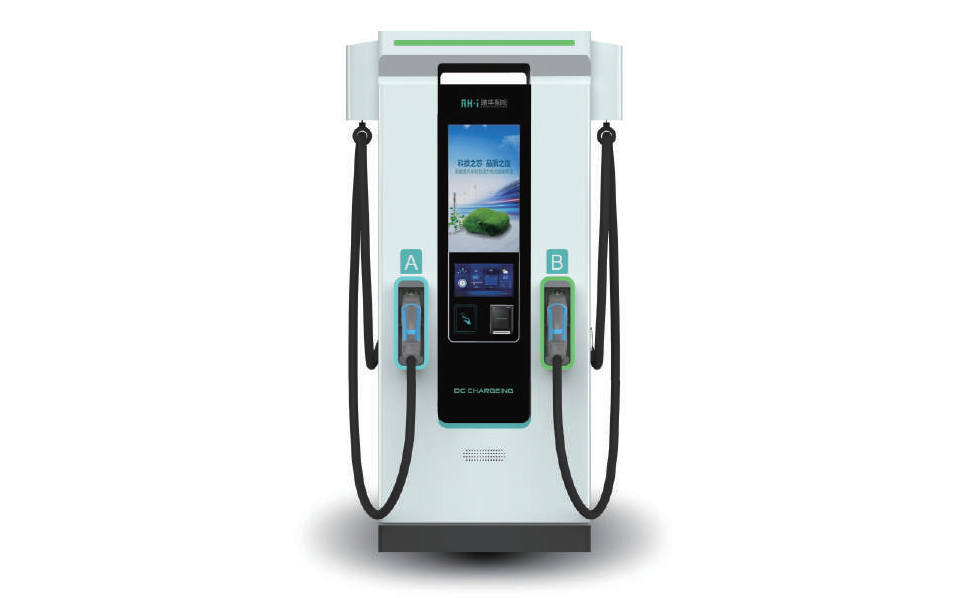

The UTEPO China & EU Standard DC EV Charger is a high-quality electric vehicle charging station designed to provide efficient and reliable charging for electric vehicles. This charger is compatible with both China and EU standard DC charging protocols, making it a versatile option for electric vehicle owners in different regions.
With a durable and weather-resistant design, this charger is suitable for both indoor and outdoor use. It features advanced safety features such as overcurrent protection, overvoltage protection, and short circuit protection to ensure a safe charging experience for both the vehicle and the user.
The UTEPO DC EV Charger is easy to use and can be installed quickly and easily by a qualified electrician. Its compact and sleek design makes it a stylish addition to any workplace, or public charging station. With fast-charging capabilities and compatibility with a wide range of electric vehicles, the UTEPO DC EV Charger is a convenient and efficient charging solution for electric vehicle owners.
FEATURES AND HIGHLIGHTS
• Modular Design for PDU
Our PDU features a pluggable modular design for fast installation and maintenance.
• Enhanced Stability
The integrated design ensures stable and reliable operation of the charger.
• HD Advertising Display
With both static and dynamic advertising features.
• Cost-effective
No need for professional installation, reducing maintenance costs and saving time.
• Customer Satisfaction
Positive feedback from numerous EV charging operators.
• Voice Broadcast Support
Manage effortlessly with voice broadcast capabilities.
Dependable Indoor & Outdoor DC EV Charger for Your Electric Vehicle Needs!
|
Parameter |
Model |
ZCDC60K-YJ-EUG |
ZCDC80K-YJ-EUG |
ZCDC120K-YJ-EUG |
ZCDC160K-YJ-EUG |
|
Input |
Power Supply |
3P+N+PE |
|||
|
Input Voltage |
380V/AC±15% |
||||
|
Input Frequency |
50/60Hz |
||||
|
Input PF |
≥0.98 |
||||
|
Total Harmonics of Input Current |
≤5% (50%~100% loading) |
||||
|
Output |
Rated Power |
60kW |
80kW |
120kW |
160kW |
|
Rated Current |
60A |
80A |
120A |
160A |
|
|
Rated Voltage |
1000V/DC |
||||
|
Voltage Range |
150~1000V/DC |
||||
|
Constant Power Output Voltage Range |
300~1000V/DC |
||||
|
Maximum Current of Each Gun |
250A |
||||
|
Current Range of Each Gun |
200A |
||||
|
Gun A Type |
GB/T |
||||
|
Gun B Type |
CCS2 |
||||
|
Cable Length |
5m |
||||
|
Maximum Efficiency |
≥95% (100% loading) |
||||
|
Steady Current Accuracy |
≤±1% |
||||
|
Steady Voltage Accuracy |
≤±0.5% |
||||
|
User Interface |
LED Indicator |
LED (Green, blue, red) |
|||
|
LCD Display |
7"or 10.1" touch LCD screen |
||||
|
Smart Mode |
POS, RFID Reader, Plug&Play, APP |
||||
|
Communication |
LAN |
Yes |
|||
|
4G |
Yes |
||||
|
China GB/T Protocol |
Certification Standard for Gun A |
GB/T 18487-2015, GB/T 27930-2015, GB/T20234-2015 |
|||
|
EU IEC Protocol |
OCCP |
OCPP1.6J |
|||
|
Certification Standard for Gun B |
IEC 61851-1:2017, IEC 61851-23:2014, EN 61851-24:2014, EN 61851-21-1:2018 |
||||
|
Safety |
Short Circuit Protection |
Yes |
|||
|
Over Load Protection |
Yes |
||||
|
Over Temperature Protection |
Yes |
||||
|
Leakage Protection |
Yes |
||||
|
Over and Under Input Voltage Protection |
Yes |
||||
|
Over and Under Output Voltage Protection |
Yes |
||||
|
Over-current Protection |
Yes |
||||
|
Certification Standard for Gun A |
GB/T 18487-2015, GB/T 27930-2015, GB/T20234-2015 |
||||
|
Certification Standard for Gun B |
IEC 61851-1:2017, IEC 61851-23:2014, EN 61851-24:2014, EN 61851-21-1:2018 |
||||
|
Environment |
Work Temperature |
-20℃~+55℃ |
|||
|
Storage Temperature |
-40℃~+85℃ |
||||
|
Relative Humidit |
≤95% Dew Free |
||||
|
Work Altitude |
≤2000m |
||||
|
Environmental Conditions |
Indoor or Outdoor |
||||
|
Others |
Cooling Method |
Fan Cooling |
|||
|
Noise |
≤65dB |
||||
|
Ingress Protection |
IP54 |
||||
|
Installation |
Floor-stand |
||||
|
Product Dimension |
1960*1040*500mm (H*W*D) |
||||
|
Net Weight |
327kg |
368kg |
|||
|
External Package |
Wooden case |
||||
