OVERVIEW

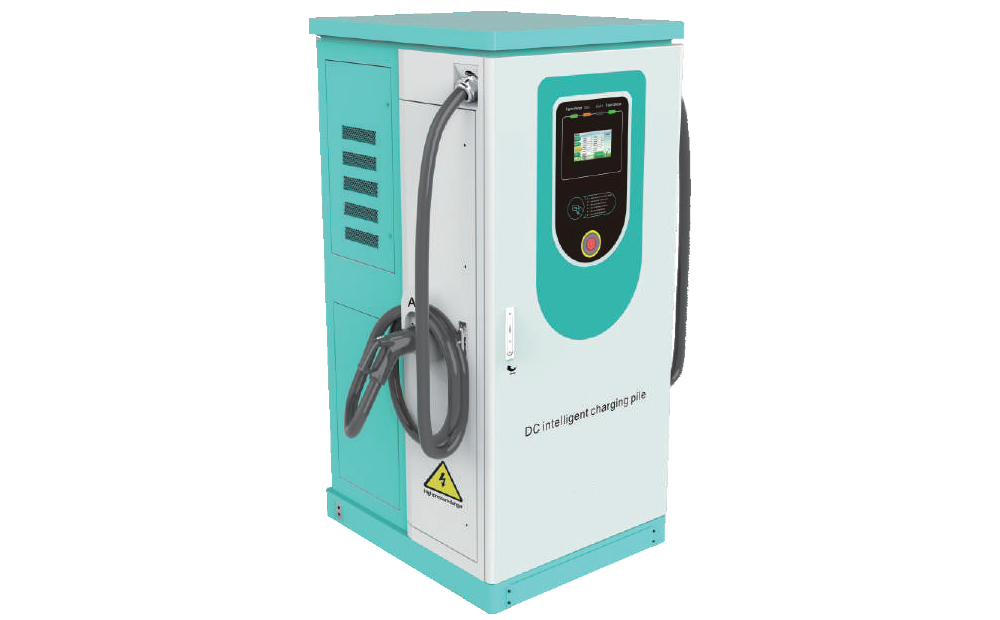

The UTEPO DC EV Charger is a reliable and efficient electric vehicle charging solution designed for residential, commercial, and public use. This charger is equipped with advanced technology to provide fast and safe charging for all electric vehicles. With a sleek and compact design, the UTEPO DC EV Charger is easy to install and operate, making it a convenient and user-friendly option for EV owners.


With a durable and weather-resistant design, this charger is suitable for both indoor and outdoor use. It features advanced safety features such as overcurrent protection, overvoltage protection, and short circuit protection to ensure a safe charging experience for both the vehicle and the user.


FEATURES AND HIGHLIGHTS

• Redesigned Integrated Charging Control Module for Easy Installation and Maintenance

- Streamlined design for simple and efficient use - Safe and stable operation for peace of mind - No need for professional installation, suitable for general staff - Production lead time reduced for faster implementation

• Improved Air Duct System for Extended Lifespan

- Independent air duct design minimizes dust impact on charging module - Enhances longevity and durability of charging module

• Quiet Operation and High Protection

- IP65 rated for high protection against dust and water - Noise level below 65db for low noise operation

• Reliable and Long-lasting

- Guaranteed lifespan of over 5 years for EV charger

• Versatile Application

- Suitable for various environments, including seaside areas with salt fog, mountainous regions, and mining sites with high dust levels


Dependable Indoor & Outdoor DC EV Charger for Your Electric Vehicle Needs!



Parameter

Model

ZCDC60K-YJG-EU

ZCDC120K-YJG-EU

Input

Power Supply

3P+N+PE

Input Voltage

380V/AC±15%

Input Frequency

50/60Hz

Input PF

≥0.98

Total Harmonics of Input Current

≤5% (50%~100% loading)

Output

Output Rated Power

60kW

120kW

Output Rated Voltage

1000V/DC

Output Rated Current

60A

120A

Voltage Range

150~1000V/DC

Constant Power Output Voltage Range

300~1000V/DC

Maximum Current of Each Gun

200A

Current Range of Each Gun

5-200A

Maximum Efficiency

≥95% (100% loading)

Steady Current Accuracy

≤±1%

Steady Voltage Accuracy

≤±0.5%

User Interface

LED Indicator

LED (Green, yellow, red)

LCD Display

7" color touch screen

Smart Mode

Plug&Play, RFID Card, APP

Cable Length

5m

Number of Gun

Double

Communication

LAN

Yes

4G

Yes

OCPP

OCPP1.6J

Safety

Short Circuit Protection

Yes

Over Load Protection

Yes

Over Temperature Protection

Yes

Leakage Protection

Yes

Over and Under Input Voltage Protection

Yes

Over and Under Output Voltage Protection

Yes

Over-current Protection

Yes

Standard

IEC 61851-1:2017, IEC 61851-23:2014, EN 61851-24:2014, EN 61851-21-1:2018

Environment

Work Temperature

-20℃~+55℃

Storage Temperature

-40℃~+85℃

Relative Humidit

≤95% Dew Free

Work Altitude

≤2000m

Environmental Conditions

Indoor or Outdoor

Others

Cooling Method

Air Cooling (Independent air duct)

Noise

≤65dB

Ingress Protection

IP65

Electric Energy Measurement

1.0 level

Installation

Floor-stand

Product Dimension

1780*800*950mm (H*W*D)

Net Weight

390kg

420kg

Package

Wooden case
