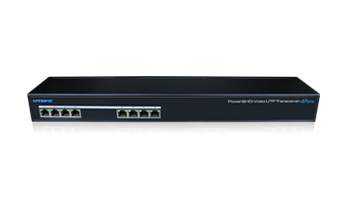

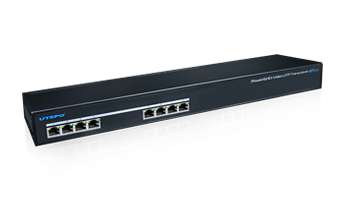

 8CH HD Video & Power UTP Transceiver_HD2

8CH HD Video & Power UTP Transceiver_HD2

UTP108PV-HD2
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

8 ports power & HD video UTP transceiver can transfer HD video and power in  up to 300m through Cat5/5e/6 cable; it provides power(steady DC12V) for remote camera, meantime return video signal. It supports HDCVI, HDTVI, AHD and analog video; each power channel has over-current, Short circuit, over-temperature protection and over-current abnormal LED indication; Small and delicate appearance is suitable for home, office, supermarket, hotel etc.


ADVANTAGES

• Transfer video and power signal in real-time via single cable, passive video transmission solution, max. 300m transmission distance

• HDCVI, HDTVI, AHD, CVBS signals 4in1 full compatible design

• Output steadying power 12W at camera side

• Short-circuit, over-current, over-temperature protection and over-current abnormity LED indication

• Superior surge immunity, ESD protection

Item

Parameter

Function

Channel

8/16 Channels

Transmission Distance

Please refer to table 1 and2

Power Consumption

Total<192W(each port< 12W)

Video Properties

Video Connector

8/16*BNC

UTP Cable Connector

8/16*RJ45

Compatibility

PAL,NTSC,SECAM HDCVI/AHD/HDTVI

Signal Transmission Band

0- 70 MHZ

Interference Rejection

>60dB

Protection

Surge

2KV(different mode) 4KV(common mode) Per:IEC61000-4-5

ESD

Contact Discharge:6KV Air Discharge:8KV IEC61000-4-2

Physical Properties

Size(L×W×H)

430mm×83mm×44.5mm

Outer Shell Material

Metal

Color

Black

N.W.

6kg

Environmental

Operating Temperature

-10℃ - 45℃

Storage Temperature

-40℃ - 85℃

Relative Humidity

0%- 95% (Non- condensing

8CH Transceiver

8CH Transceiver

Designation

Quantity

Power & HD video UTP Transmission Server

1 pc

1ch Power & HD video UTP Transceiver

8 pc

User Manual

1 pc

Power Adapter

1 pc

Accessory

1 set
