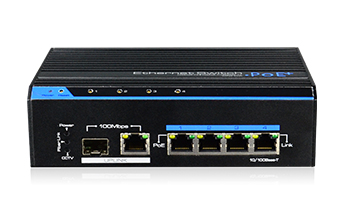

The un-managed industrial ethernet switch provides one uplink ethernet port and one uplink optical port (100Mbps), four 100Mbps PoE ethernet ports which supporting af/at power supply standard. This product is designed for high definition IP camera network access; which supports one key CCTV model, can achieve VLAN, restrain the Netstorm, protect the information security and prevent the virus spread and Ethernet attack; it also integrates optical interface to achieve the perfect performance which blended with fiber optical transceivers and network switches, to solve the problem of long-distance transmission. The product could be used in network security video surveillance, network project etc.
_03.jpg)
Complex industrial environments place high demands on product design and environmental adaptability. UTEPO Plug-and-Play Industrial Fast Ethernet PoE Switches are deigned to meet the requirements for stable and reliable transmission and power supply in the industrial sector and meet the industrial protection standard Class 4.
_06.jpg)
_08.jpg)
_10.jpg)
_13.jpg)
_14.jpg)
|
Items |
UTP7204E-POE-A1 |
UTP7208E-POE-A1 |
|
Hardware Specifications |
||
|
Downlink Port |
4*10/100Base-T PoE+ RJ-45(Auto-MDI/MDI-X) |
8*10/100Base-T PoE+ RJ-45(Auto-MDI/MDI-X) |
|
Uplink Port |
1*10/100Base-T RJ-45 |
1*10/100/1000Base-T RJ-45 |
|
1*100Base-FX SFP |
1*1000Base-X SFP |
|
|
LED Indicator |
1*Power indicators |
1*Power indicators |
|
1*Fiber link indicator |
1*Fiber link indicator |
|
|
1*CCTV indicator |
1*CCTV indicator |
|
|
4*Downlink port Link/ACT indicators |
8*Downlink port Link/ACT indicators |
|
|
4*Downlink port PoE indicators |
8*Downlink port PoE indicators |
|
|
1*Uplink port Link/ACT indicator |
1*Uplink port Link/ACT indicator |
|
|
DIP Switch |
CCTV mode: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports VLAN (all downlink ports are isolated from each other, but can communicate with uplink ports) and restrain network storm, PoE switch supports PoE watchdog. |
|
|
Input Voltage |
48~57V DC |
|
|
Power Consumption |
≤5W (Full load without PoE) |
≤5W (Full load without PoE) |
|
Dimension(W*D*H) |
163mm*110.5mm*46.5mm |
|
|
Material |
Metal shell |
|
|
Installation |
DIN-rail/desktop/wall mounted |
|
|
PoE |
||
|
PoE Standard |
IEEE 802.3af/at(PSE) |
|
|
PoE Power Supply Type |
End-span |
|
|
PoE Pin Assignment |
1/2(+), 3/6(-) |
|
|
PoE Power Output |
44~57V DC |
|
|
PoE Power |
30W max for each port, 60W max for whole switch |
30W max for each port, 120W max for whole switch |
|
Switch Property |
||
|
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3X |
|
Forwarding Modes |
Store and Forward |
|
|
Packet Buffer |
512k |
1M |
|
MAC Table |
2k |
8k |
|
Switching Capacity |
1.2Gbps/non-blocking |
5.6Gbps/non-blocking |
|
Packet Forwarding Rate |
0.9Mpps |
4.2Mpps |
|
Jumbo Frame |
1632 bytes |
1632 bytes |
|
Reliability |
||
|
Surge Immunity |
6kV, Standard: IEC6000-4-5 |
|
|
ESD |
6kV Contact Discharge, 8kV Air Discharge, standard: IEC61000-4-2 |
|
|
Operating Temperature |
-40°C ~75°C |
|
|
Storage Temperature |
-40°C ~85°C |
|
|
Operating Humidity |
5%~95% (Non-condensation) |
|
|
Certifications |
||
|
Certifications |
CE, FCC |
|
.jpg "poe switch")
|
Items |
Quantity |
|
Switch |
1 pc |
|
Mounting Accessory |
1 set |
|
Power Adapter(Optional) |
1 pc |
|
Quick Installation Guide |
1 pc |
