 PoE Ethernet Repeater

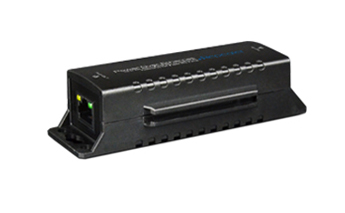

PoE Ethernet Repeater

UTP3-VER01-POE
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

The PoE Ethernet extender can transmit Ethernet signal and power through one single network cable, which solve the transmission distance limitation of devices as for network camera and so on. The product supports IEEE802.3u 100Base-TX and IEEE802.3 af/at standards. The Max power consumption transmission can up to 30 watts, which can supply 25.4 watts power consumption for terminal devices. The product can extend to 100M and thus the cascading distance can up to 400m after be cascaded for several times. And it can support 100Mbps full duplex transmission mode with good protection ability of anti-ESD and anti-surge. The special design of built-in splicing slot on both sides and magnetic attraction as well as hanger on the bottom enables multiple installation methods of wall mounting, splicing and adsorption. Above all, the product can give a better systematic solution of transmission distance and power supplying for network camera and other device.


Model

UTP3-VER01-PoE

PoE Input Port

1* 10/100Base-Tx

PoE Output Port

1* 10/100Base-Tx

Transmission Media

Cat5e/6

Transmission Distance

Max: 400m

Standard and Protocols

IEEE802.3 , IEEE802.3u

Delay

20us

PoE Standard

802.3af/at

PoE Power Method

End-span and Mid-span

PoE Line Pair

1/2(+),3/6(-)  4/5(-),7/8(+)

PoE Output Power

30w

Surge Immunity

4KV  Execute:  IEC61000-4-5

ESD Immunity

6KV Contact discharge

8KV Air discharge

Execute: IEC61000-4-2

Power Supply

PoE

Power Consumption

3W

Operating Temperature

-10℃~55℃

Storage Temperature

-40℃~85℃

Humidity(Non-condensing)

5%-95%

DimensionL×W×H

113mm×45.5mm×29mm

Weight

50g

Certification

CE, FCC, ROHS

PoE repeater

UTEPO poe repeater

Designation

Quantity

PoE Ethernet repeater

1

User Manual

1
