OVERVIEW

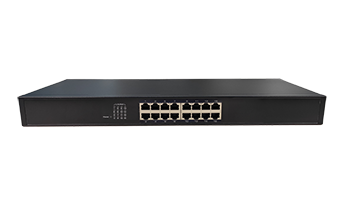

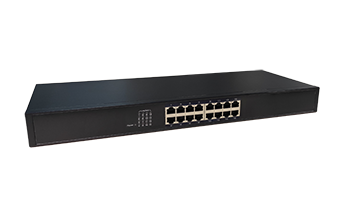

The product of this series is 16-Port/24-Port 10/100/1000Mbps Gigabit Ethernet Switch.

This series switches provide 16/24*10/100/1000Mbps Ethernet RJ-45 ports. It can be widely used in video security monitoring systems, network projects, etc.

This series contains two types:

• UTP3316-M0: 16-Port Gigabit Ethernet Switch

• UTP3316-M0: 24-Port Gigabit Ethernet Switch

FEATURES AND HIGHLIGHTS

• UTP3316-M0: 16*10/100/1000Base-T RJ-45 ports

UTP3324-M0: 24*10/100/1000Base-T RJ-45 ports

• RJ-45 ports support Auto MDI/MDIX

The new-arrival UTEPO unmanaged PoE Switches provide 16/24 10/100/1000Base-T PoE+ ports with up to 30W PoE per port, and 2 1000Base-X SFP ports for a flexible extension. It eliminates the time and cost of deployment by integrating power and data switching into one unit and freeing network devices from restrictions of power outlet locations and the additional AC wiring. The switch also supports 4 working modes through the DIP switch (Default, QoS, VLAN, and CCTV), which provides more performance choices for different networking demands. It can be widely used in video security monitoring systems, network projects, etc.

● PoE Provides Centralized Power Management

Providing 16/24 10/100/1000Base-T PoE+ ports, the switches support a max 30W PoE power per port and supply power to IP camera, AP, etc., in a reliable, stable, and eco-friendly way. All the power would be sent from the back end (PoE switch). What you need to do is to add the UPS power next to your PoE switch. When the power is cut off, the UPS power will take over and continue to supply the power to the whole system.

● Flexible Extension with SFP Port

The series provides two Gigabit Uplink SFP ports, which can be uplinked to the backbone switch and monitoring center over long distances. The distance can be extended over 550 meters or more (according to the performance of the SFP module). They are well-suited for applications within enterprise data centers and distributions.

● 4 Working Modes

The switches support 4 working modes (Default, QoS, CCTV, VLAN)

Default

All ports could be able to communicate with each other. In this mode, the switch can function as the core switch in small-scale networking.

QoS

In this mode, ports 1-8 are high-priority ports. When congestion occurs in the data forwarded by the switch, the data on the high-priority ports will be forwarded out first, thus guaranteeing stable transmission of video and data from the key locations without interruption or lag. Meanwhile, the SFP ports serve as the Uplink ports in this mode.

CCTV

The transmission distance of the specific RJ-45 ports (Ports 9-14 of UTP3318S-PSB250-M0, ports 17-22 of UTP3324S-PSB250-M0 & UTP3324S-PSB410-M0) is extended up to 250 meters with the limited rate of 10Mbps.

VLAN

The RJ-45 ports are isolated from each other but can communicate with the SFP ports. To a certain extent, it suppresses broadcast storms and improves network security.

● Excellent Performance of Protection and Anti-interference

Support 6kV surge protection to ensure stable operation.
