 16-Port Gigabit SFP 8-Port Gigabit Combo 4-Port 10G SFP+ L3 Managed Ethernet Switch

16-Port Gigabit SFP 8-Port Gigabit Combo 4-Port 10G SFP+ L3 Managed Ethernet Switch

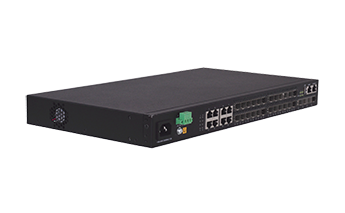

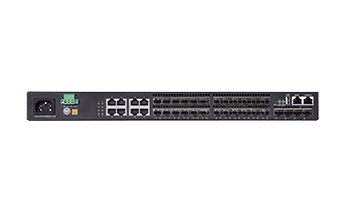

UTP5628TFS-L3(V2)
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product


OVERVIEW

This switches is enterprise-class stackable routing switch with fixed, built-in 10GbE uplink ports. It has great performance on availability, scalability, security and energy efficiency. This fully managed switch provides high switching capacity, supports wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols. Thanks to the VSF (Virtual Switch Framework), the management work for the network administrator is simplified. Multiple switches can be virtualized into one logical device, achieving the sharing of information and data tables between different switches, which provides more reliability. It delivers high-performance, hardware-based on IP routing. RIP, OSPF, and BGP provide dynamic routing by exchanging routing information with other Layer 3 switches and routers. It is ideal for aggregation or access layer for campus, enterprise, government and internet service provider networks.



FEATURES AND HIGHLIGHTS

Abundant Interfaces

•  24*1000Base-X SFP ports ((8*1000Mbps RJ-45 Combo) ports)

•  4*10GBase-X SFP+ ports


Layer 3 Features

•  RIP

•  OSPF

•  BGP

•  IS-IS

•  ECMP

•  DHCP


Layer 2 Features

•  802.1Q VLAN

•  QoS

•  STP/RSTP/MSTP

•  ERPS

•  IGMP snooping

•  LACP

•  LLDP


VSF (Virtual Switch Framework)

Virtual Switch Framework can virtualize multiple switches into one logical device, achieving the sharing of information and data tables between different switches.

Items

UTP5628TFS-L3(V2)

Hardware Specifications

Downlink Port

24*10/100/1000Base-X SFP ports ((8*1000Mbps RJ-45 Combo) ports)

Uplink Port

4*10GBase-X SFP+

Cable

Cat5 or better

Dimensions (W*D*H)

440mm*240mm*44mm

Power Supply

AC: 100~240V AC, 50~60Hz
DC: 12V DC

Power Consumption

<40W(Full load)

Material

Metal shell

Switch Property

Forwarding Modes

Store and Forward

Switching Capacity

598Gbps/5.98Tbps

Packet Forwarding Rate

166Mpps/252Mpps

Environments

Operating

0°C~50°C, 10%~90% (Non-condensation)

Storage

-40°C~70°C, 10%~95% (Non-condensation)

Software Architecture

VLAN

Support Port-based VLAN

Support IEEE802.1Q VLAN

Support private VLAN

Support Protocol VLAN

Support Voice VLAN

Support MAC VLAN

Support QinQ

Support Flexible QinQ

Support VLAN Translation

Support N:1 VLAN Translation

DHCP

Support IPv4/IPv6 DHCP Client, IPv4/IPv6 DHCP Relay

Support Option 82, Option 37/38

Support IPv4/IPv6 DHCP Snooping, IPv4/IPv6 DHCP Server

Reliability

Support STP, RSTP, MSTP

Support LACP

Support VRRP

Support EMVTE(ULPP+ULSM), MRPP

Support G.8032 ERPS

Support Loopback detection, VCT, DDM

Support alarm for power off dying gasp

Support ULDP

Security

Support port speed-limited

Support Storm Control

Support port/MAC binding, MAC filter

Support port, VLAN-based MAC control

Support anti ARP Cheat, anti ARP Scan, ARP Binding

Support DHCP Snooping, ND Snooping

Support DAI

Support IEEE 802.1x, expanded IEEE 802.1x, Web Portal

Support TACACS+

Routing

Support static routing, RIP V1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, policy-based routing

Multicast

Support IGMP v1/v2/v3 snooping, IGMP Fast leave

Support MLD v1/v2 snooping

Support Multicast VLAN, IPv4/IPv6 DCSCM

QoS

Support Traffic Classification Based on ACL, VLAN ID, COS, TOS, DSCP, IPv6 FlowLabel

Support port-based & VLAN-based PolicyMap binding

Support DSCP, COS/802.1p, TOS Mark/Remark

Support 8 Queues

Support SP, WRR, SWRR, DWRR

ACL

Support IP ACL,S/DIP, IP Protocol, IP Precedence, TCP/UDP port

Support MAC ACL, S/DMAC,VLAN ID,COS

Support IP+MAC ACL

Support User-Defined ACL

Support Time Ranged ACL

Support ACL rules can be configured to port, VLAN

Support Redirect and statistics

Management

Support CLI

Support ethernet management port

Support IPv4/IPv6 HTTP

Support IPv4/IPv6 FTP/TFTP

Support IPv4/IPv6 SNTP/NTP

Support IPv4/IPv6 telnet User & password authorization by radius

Support IPv4/IPv6 SSH

Support security IP

Support IPv4/IPv6 syslog

Support SNMPv1/v2c/v3

Support MIB, Support Trap

Support RMON 1, 2, 3, 9

Support dual firmware images/ Configuration files

Support LLDP

Support port mirror, CPU mirror, RSPAN, ERSPAN

Support sFlow Traffic Analysis

Support one key reset

Support OAM

Support VSF(Virtual Switch Framework)

Energy Efficiency

Support 802.3az EEE, support automatic fan speed adjustment, temperature alarm, support LED Shut-off
