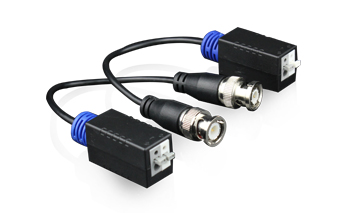

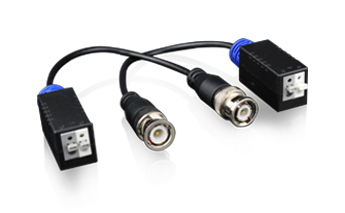

 1CH Passive HD Video Balun_HD

1CH Passive HD Video Balun_HD

UTP101P-HD
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video

Transmission distance up to 500 meters with passive transmitter; Transmission distance up to 650 meters with active transmitter; Plug-and-play; Real-time and stable: Strong surge protection, ESD and lighting protection.


Advantage

Passive, no power required;

Plug-and-play; Real-time and stable HDCVI/HDTVI/AHD/Analog  transmission result;

500m matches the passive transceiver; 650m matches active transceiver;

Excellent anti-interference,surge protection, ESD and lighting protection capability;

ABS (Acrylonitrile-Butadiene-Styrene) shell; built-in extended coaxial cable, convenient for intensive engineering projects;

Bayonet Nut Connector (BNC); press-fitting UTP terminal.

Model

UTP101P-HD

Video Port

1 channel

Maximum Transmission Distance (with passive product)

HDCVI-720P:370m;1080P:200m;

400W(4MP):350m;800W(8MP):150m

HDTVI-720P:200m;1080P:200m;

300W(3MP):250m;

AHD-720P/960P: 330m; 1080P:300m

400W(4MP): 250m;500W(5MP): 200m

Analog Video:500m;

Coaxial Video Port

Male BNC Port

Twisted-pair Video Port

2-channel screw push terminal

Video Compatibility

HDCVI/HDTVI/AHD, PAL/NTSC/SECAM Video

Bandwidth

075MHz

Anti-interference

>60dB

Coaxial Port Protection

2KV Per: IEC61000-4-5

Twisted-pair Port Protection

2KV(different mode) 4KV(common mode)

Per: IEC61000-4-5

ESD

Level 3,1a Contact Discharge,

Level 3,1b Air Discharge

Operating Temperature

-1055℃

Storage Temperature

-20℃~70℃

HumidityNon-condensing

095%


video balun

Designation

Quantity

UTP101P-HD

2

User Manual

1
