PoE (EPOC) Ethernet Extender

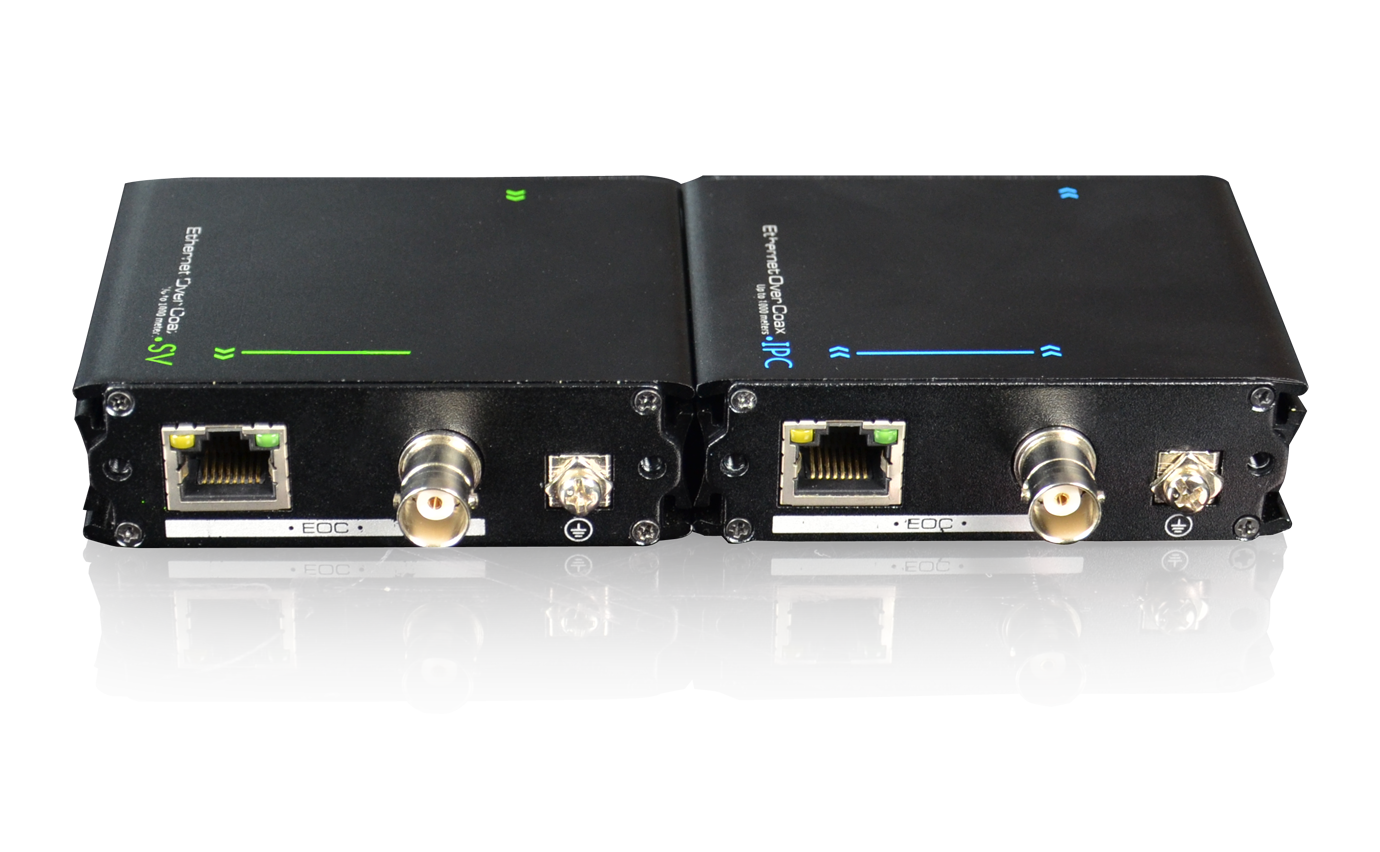

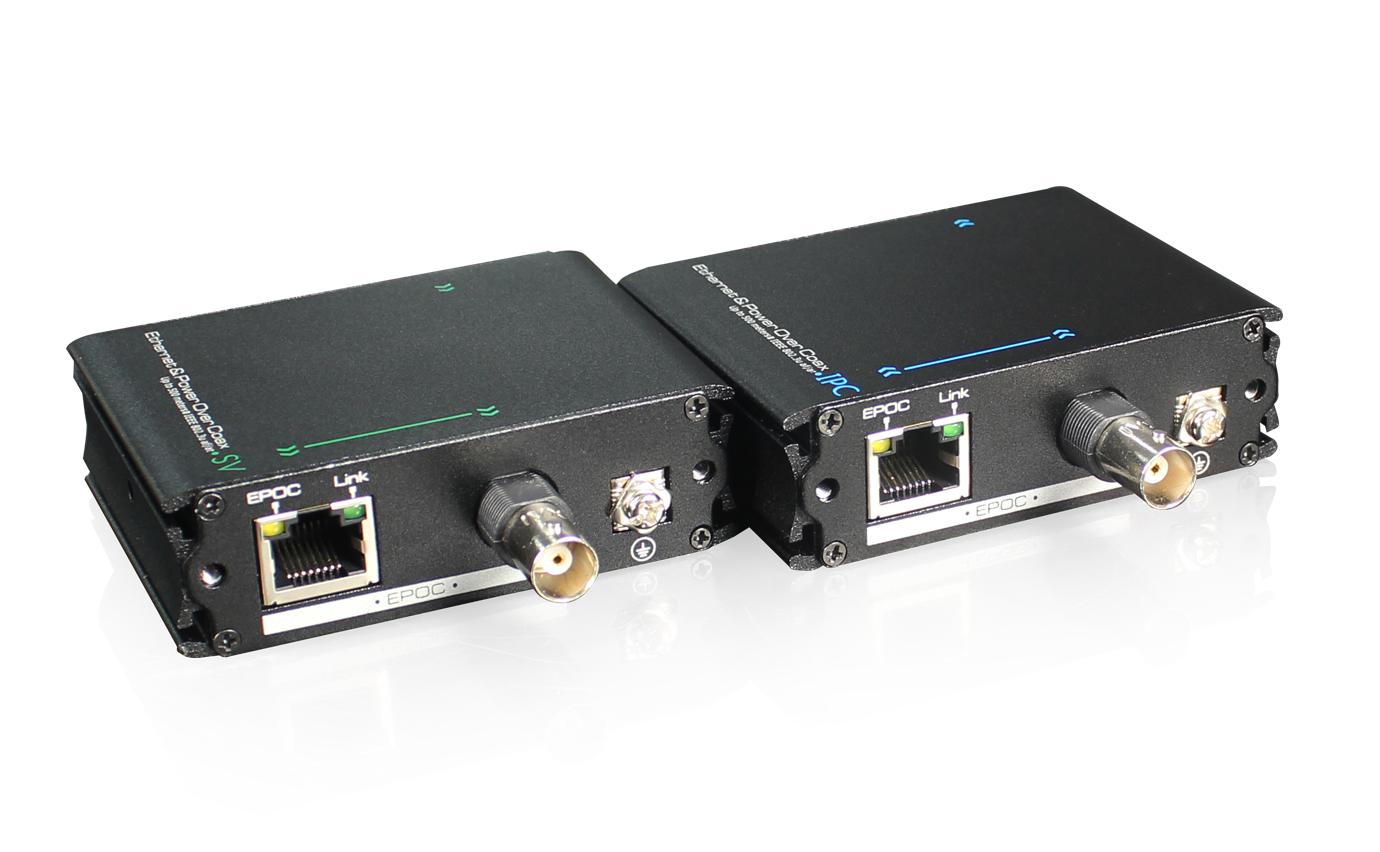

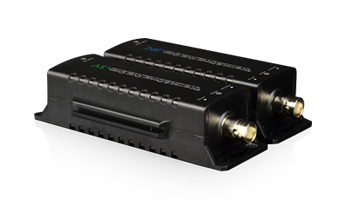

Consist of SV-Unit and IPC-Unit, UTP7301EPOC can transform Ethernet signal of IPC-Unit to carrier signal, and extend it to SV-Unit along with electric energy synchronously through coaxial cable or network cable. And you can use 54V power adapter or PoE power supply to power up SV-Unit. It meets the requirement for long-distance transmission for Ethernet signal and power supply, and is widely used in mixed wiring security surveillance project of coaxial cable and network cable and network rebuilding project.

Upgrading Project

	Analog surveillance upgrading to HD IP Surveillance.
	Widely used in project of security surveillance with coax and network cable mixed together, also for project of network rebuilding.

Long Transmission Distance

	Transmit network and PoE signal up to 500m via coaxial cable or 400m via Ethernet cable. Network latency is less than 1ms.
	Support point-to-point application.

Superior Performance

Superior circuit isolation protection, lightning protection, ESD and anti-interference ability.

Support PoE Supply

EPoC Ethernet extender can extend PoE network signal and supply PoE for remote cameras.

Model		Description
Power	Power Supply	PoE power supply or power adapter supply
	Input Voltage	DC 48V～57V
	Consumption	＜2W
Ethernet Port Parameter	Ethernet Port	EPOC: 0--100Mbps Ethernet: 10/100Mbps
	Ethernet Port	Transmission bandwidth changes with transmission distance,please refer to table 1
	Transmission Distance	EPOC Coaxial Cable: 0-500m
	Transmission Distance	EPOC Network Cable: 0-400m
	Transmission Medium	75-5 Above Coaxial Cable and Cat5e/6
	PoE Agreement	Support IEEE802.3af, IEEE802.3at
	PoE Power Method	End-span and Mid-span
Ethernet Exchange	Standard and Protocols	IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX
Ethernet Exchange	Ethernet Delay	＜1ms

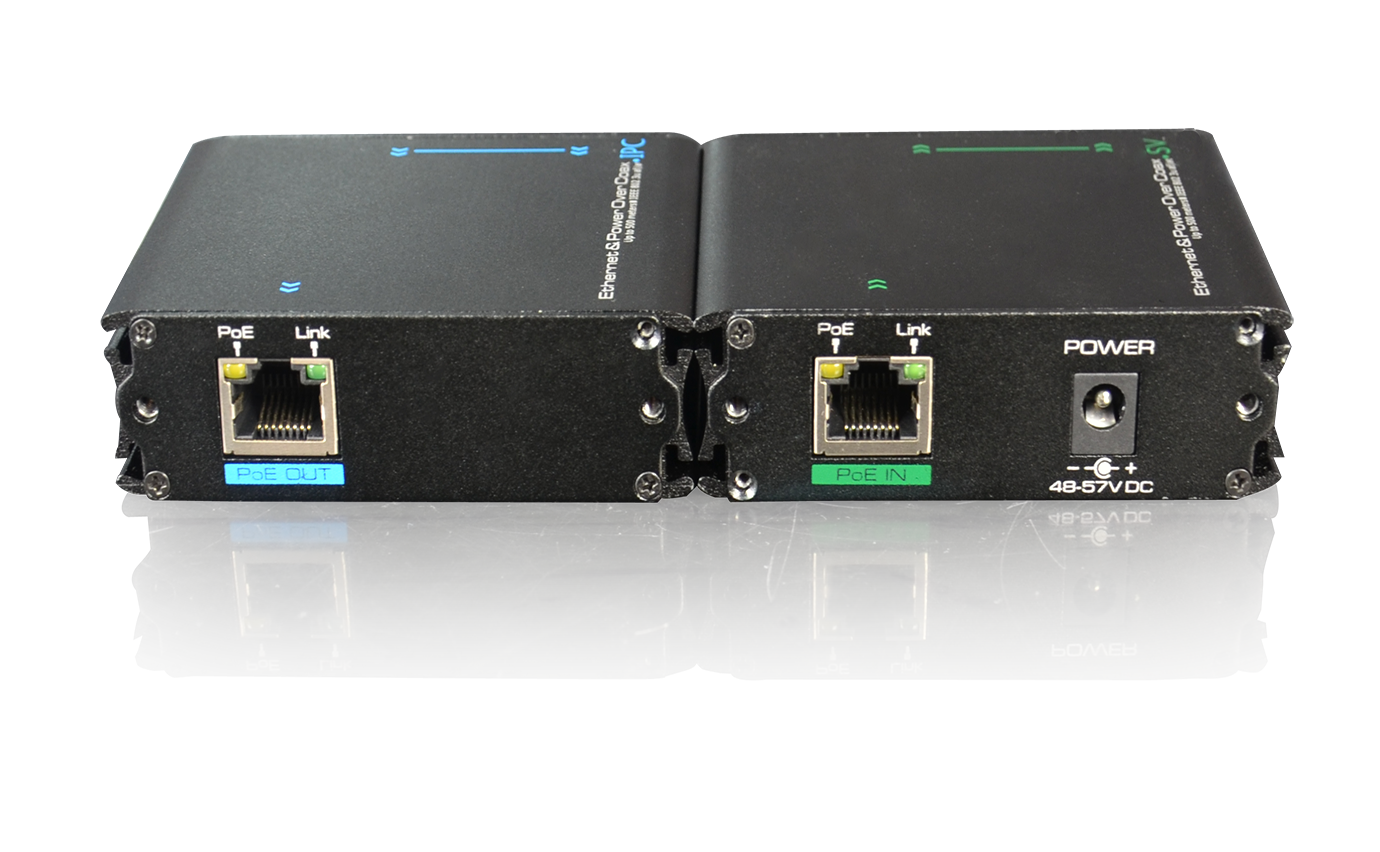

Status	Indicator LED	PoE IN/OUT Port:
Status	Indicator LED	One indicates PoE power supply or DC power status(RJ45 yellow), one indicates Ethernet signal transmission(RJ45 green);
Protection Level	ESD Immunity	1a Contact Discharge level 3
		1b Air Discharge level 3
		Per: IEC61000-4-2
	Surge Immunity	Per: IEC61000-4-5 level 3
Operation Envioronment	Operating Temperature	-40℃~+75℃
	Storage Temperature	-40℃~+85℃
	Humidity(No-Condensing)	0~95%
Mechanical	Dimension(L×W×H)	63.2mm×82mm×25mm
	Material	Aluminum
	Color	Black
	Weight	IPC:153g; SV:154g

Designation	Quantity
Ethernet Extender	1
MIT Hanger	2
User Manual	1

UTP7301EPOC Datasheet Verb 1.2 User Manual UTP7301EPOC V1.2
