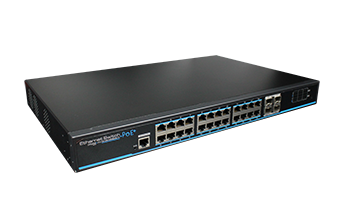

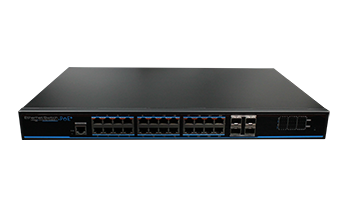

 24 Gigabit PoE Ports Managed Ethernet Switch

24 Gigabit PoE Ports Managed Ethernet Switch

UTP3-GSW2404S-MTP250
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video

The UTP3-GSW2404S-MTP250 is a new generation of intelligent safe access POE switch launched by UTEPO. The product provides 24 gigabit POE ports and 4 gigabit uplink ports. It supports IEEE 802.3af /at (POE +) power supply standard with internal power adapter, PoE power budget is up to 230W. Users can optionally set the PoE power supply port, flexibly configure the maximum output power of each port, support the setting of multiple power supply modes, and freely set the power supply priority of ports to realize flexible PoE power supply management.


It supports abundant L2 functions such as PoE management, 802.1Q VLAN, DHCP snooping, 802.1x Authentication, Dual IPv4/IPv6 stack,  IGMP Snooping, STP/RSTP, ACL, Port mirroring, SNMP v1/v2 etc. Due to the advanced L2 functions such as ACL and MAC binding VLAN function, the switch and compliant devices can be protected against broadcast storms, ARP and DoS attacks so that guarantee a safe operation. Quality of Service (QoS) ensures stable and smooth data transmission.


Advantages

Provides 24 *Gigabit PoE RJ45 ports, 4* Gigabit uplink SFP ports.

Enhanced Ethernet intelligent power supply function (POE+): the output power of each port can be up to 30W.

Abundant VLAN functions: support VLAN based on port, VLAN based on MAC, QinQ.

Reliable security protection policy: support ACL, RADIUS authentication, 802.1x authentication.

Simple and easy network maintenance: support WEB network management, TELNET, SNMP, NTP and other abundant management and maintenance method.

Professional lightning protection: professional built-in industrial-grade 6KV lightning protection of port.

UTEPO
pic

The UTEPO full Gigabit managed PoE switches, adopt new generation high-performance hardware and software platform. The switches provide 8/16/24*10/100/1000Base-T RJ45 ports and 2/4/4*1000Base-X SFP ports. The port 1-8 / port 1-16 / port 1-24 support PoE complied with IEEE802.3af/at, with a 135W (8 ports) or 230W (16, 24 ports) of total PoE power budget. Equipped with large buffer chip and abundant L2 management function, including QVLAN, QoS, IGMP Snooping, Fast-Ring and PoE management etc, it can be used in security monitoring of enterprise, industrial park and other applications.

pic

● Gigabit RJ45/SFP Hybrid + Large Buffer

Providing 8/16/24*10/100/1000Base-T RJ45 PoE ports + 2/4/4*1000Base-X SFP ports, and 4M/12M/12M large buffer, the switches meet the requirement of 4K HD video monitoring and transmission requirements, and effectively reduces unfluent network and other phenomena.

pic

● One-key Smart Technology

pic

CCTV Mode

The downlink ports are isolated while communication, optimize flow control for more fluent video.

pic

Device Lock

Lock the authentication port device to prevent illegal access to equipment and make system more secure.

pic

Fast Ring

Start fast-ring group 1 (The first two Uplink ports are fast-ring group)

pic

Device Online

24-hour online monitoring device, if it occurs the crash fault, it would reboot automatically.

● 135W/230W/230W PoE Power Budget + PoE Scheduling

Support IEEE802.3af/at, total PoE power budget is up to 135W/230W/230W. User can set the configuration for PoE scheduling through WEB.

PoE Scheduling

With PoE schedule for your office, you can save the energy during off-duty hours.

pic Recycling

You can set your device to reboot at any specified time through PoE schedule, therefore, they will reduce the chance of IP camera or AP crash resulting from buffer overflow.

pic

● Abundant Layer 2 Management Function

Support layer 2 management function including QVLAN, QoS, IGMP, RSTP, Fast-ring, 802.1X authentication and PoE management etc.

pic

● Excellent Performance of Protection and Anti-interference

Support 6KV surge protection and 8KV ESD protection, ensuring the stable operation.

pic pic

8*GE PoE + 2*GF SFP

IEEE802.3af/at

Total PoE power budget is 135W

Support max 250 meters of transmission distance with auto speed reduction.

L2 management

Support 6KV surge protection and 8KV ESD protection

bot

16*GE PoE + 4*GF SFP

IEEE802.3af/at

Total PoE power budget is 230W

Support max 250 meters of transmission distance with auto speed reduction.

L2 management

Support 6KV surge protection and 8KV ESD protection

bot

24*GE PoE + 4*GF SFP

IEEE802.3af/at

Total PoE power budget is 230W

Support max 250 meters of transmission distance with auto speed reduction.

L2 management

Support 6KV surge protection and 8KV ESD protection

bot

Model

UTP3-GSW2404S-MTP250

Copper Ports

24*10/100/1000Base-T PoE RJ45(Auto-MDI/MDI-X)

SFP Ports

4*1000 Base-X SFP(Mini-GBIC)

Console Port

1*RJ45-R232 serial port(115200,8,N,1)

Init button

Short press:restart;

>5s Press: restore factory settings.

Network Standard

IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X,  IEEE 802.1Q, IEEE 802.1p   IEEE 802.3ad ,  IEEE 802.1D, IEEE 802.1X

Switching Capacity

56Gbps / non-blocking

Packet Forwarding Rate

41.7Mpps

Forwarding Modes

Store and Forward

Packet Buffer

12Mbit

MAC Address Table

16K MAC address table with auto learning function

Jumbo Frame

10K bytes

PoE Standard

IEEE802.3af 15.4W, IEEE802.3at 30W

PoE Power Method

End-span

PoE Line Pair

1/2(+)3/6(-)

Input Voltage

Internal power adapter

AC 100-240V 50/60Hz

Power Consumption

<250W (PoE consumption)

PoE budget: 230W

Surge Immunity

6KV

Execute: IEC61000-4-5

ESD Immunity

6KV: Contact discharge

8KV: Air discharge

Execute: IEC61000-4-2

Operating Temperature

-10-50℃

Storage temperature

-40-85℃

Humidity

5%-95%(Non-condensing)

DimensionL×W×H

442mm×286mm×44mm

Weight

3.859kg

Certification

CE, FCC, ROHS

Software Parameter

Interface Management

Logic Interface

Support port isolation

Support port rate settings

Support port storm suppression

Support IEEE802.3x flow control

Support port traffic statistics

Support port adaptation

Loopback detection

VLAN

VLAN Partition

VLAN based on port, VLAN based on MAC

Private VLAN, multicast VLAN

VLAN Communication

VLAN intercommunication

VLAN isolation

VLAN Port Type

Access, Trunk, GVRP, QinQ

MAC

Static MAC

MAC Black hole

Dynamic MAC

MAC address aging configuration

MAC address learning limit

Multicast MAC

Static Multicast MAC address

Loopback Protection

STP/RSTP, ERPS v1v2G.8032, y.1731 CCM

IP Features

IP address : Classful IP address, classless IP address

ARP

IPv6 address configuration

DHCP

Host DHCP service

DHCP pool

DHCP relay

DHCP snooping option 82

IGMP Features

IGMP snooping

GMRP

QoS

Support 802.1p CoS/DSCP priority

Support 8-Level priority management for switching

Support WRR, PQ, DRR, WFQ, ACL based on ports and queues

PoE Management

Support total power consumption control

Support PoE ON/OFF

Support single port 30W max. Power change and port output priority

Security

802.1x

IEEE 802.1X Port/MAC based authentication, Radius

Support MAC address auto-learning, aging& filter

Support port isolation, port speed-limited

ACL

Basic ACL, advanced ACL

System Log

Local system log management

Remote System Log Management

Mirroring

Port mirroring

System Management& Maintenance

Support WEB management,  configuration through Telnet, SSH, Tracert v4

SNMPv1/v2/v3 management

NTP

Link layer discovery protocol (LLDP)

IPv6

Dual IPv4/IPv6 stack

Ping IPv6, WEB IPv6

DHCPv6 snooping, DHCPv6 client

IPv6 ACL, IPv6 SSH

IPv6 neighbor discovery (ND)


poe switch

Designation

Quantity

UTP3-GSW2404S-MTP250

1

AC Power Line

1

Accessories

1

User Manual

1
