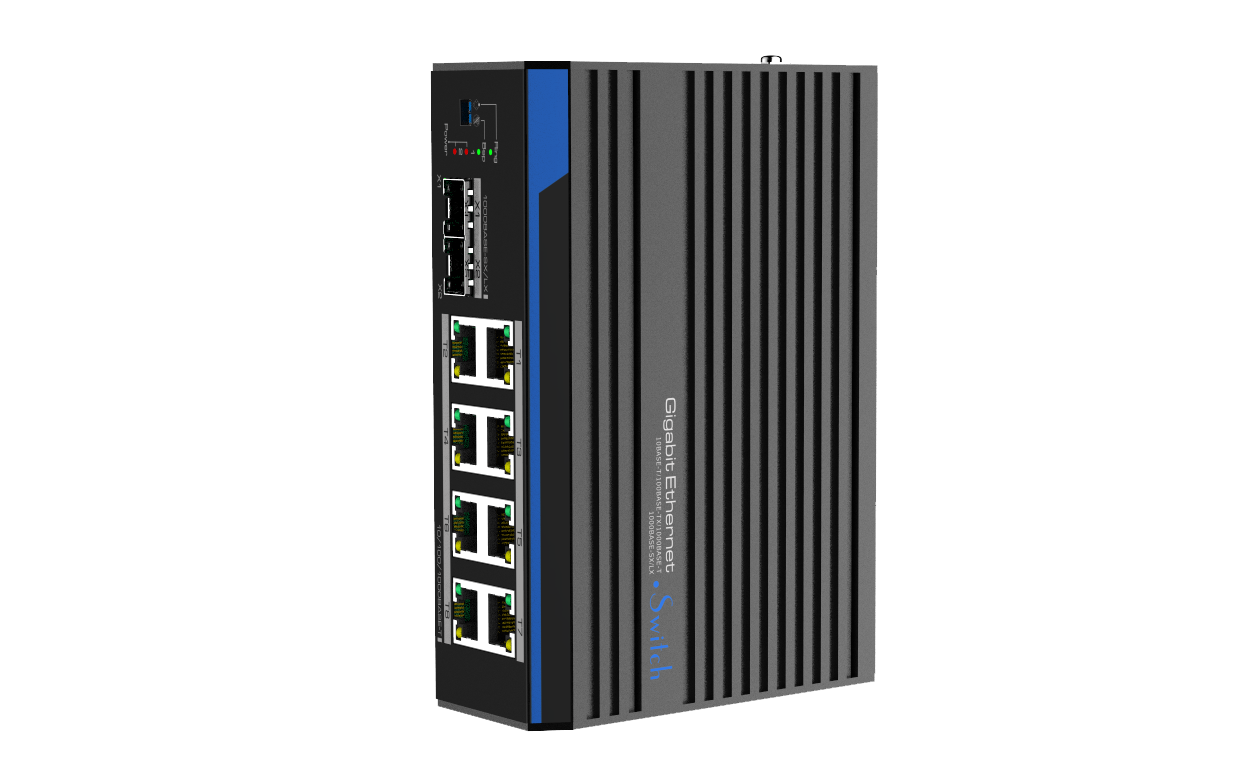

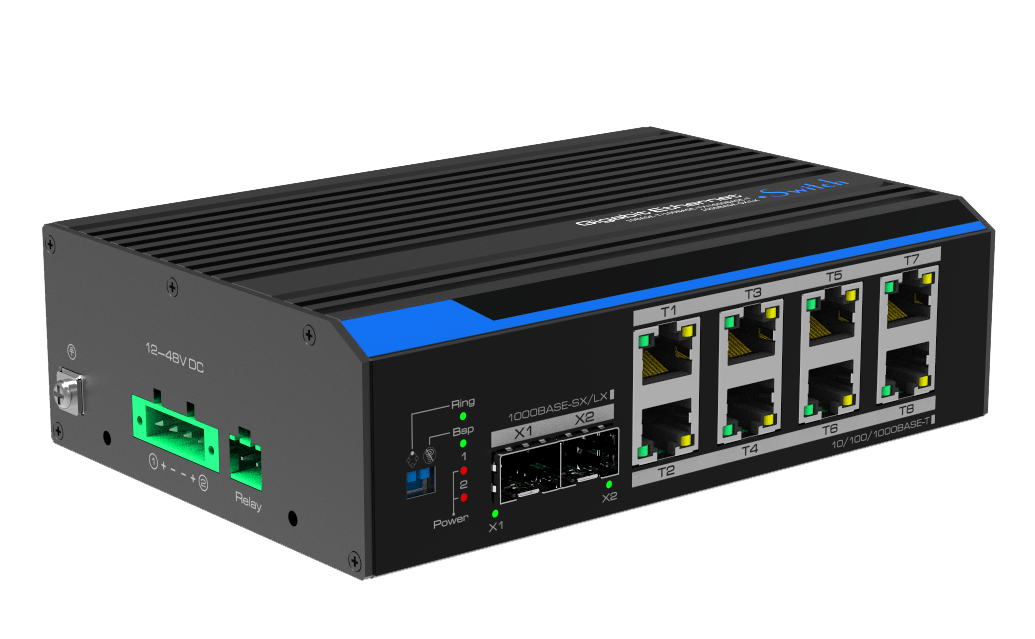

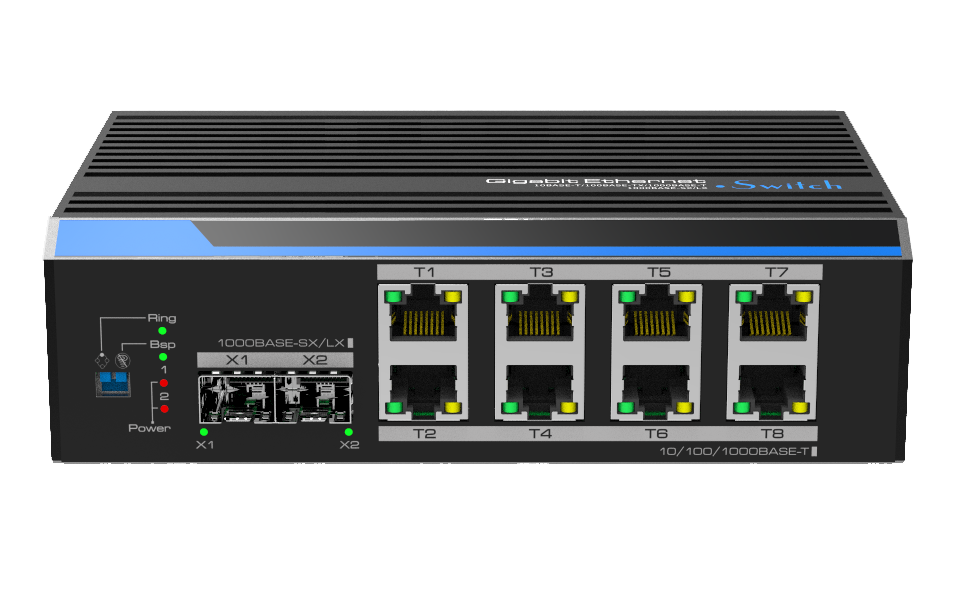

Full gigabit one-key ring industrial unmanaged switch provides 8*10/100/1000Base-T Ethernet port and 2*1000Base-X SFP slots. It supports auto speed reduction on Ethernet ports, the transmission distance is up to 200 meters max. What’s more, the switch supports one-key ring and one-key broadcast storm prevention (BSP). With industrial components, fanless and low power consumption design, the series meet the requirement of industrial project, and are widely used in Smart power grid, rail transportation, smart city, safe city, new energy, aerospace, smart manufacturing, military and other industrial fields.
ADVANTAGES
• Provide 8*10/100/1000Base-T Ethernet port and 2*1000Base-X SFP slots.
• Support one-key ring, with self-healing time in 20ms.
• Support one-key broadcast storm prevention (BSP), preventing crash of the switches.
• Support max 200 meters of transmission distance with auto speed reduction.
• Support one channel relay alarm output, fanless, wave metal shell, low power consumption design.
• Support installation of DIN rail and wall mounted, adapting to a variety of environments.
|
|
Model |
UTP7208GE |
|
Downlink Port |
8*10/100/1000Base-T Ethernet |
|
Uplink Port |
2*1000 Base-X SFP slots |
|
Alarm Output |
One channel relay alarm output, 1A@DC 9V, 2 cores, 5.08mm terminal |
|
DIP Switch |
1.Enable / Disable fast ring, with self-healing time less than 20ms. |
|
2. Enable / Disable broadcast storm prevention. |
|
|
Standard and Protocols |
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1P |
|
Switching Capacity |
24Gbps |
|
Packet Forwarding Rate |
18Mpps |
|
Packet Buffer |
2Mbit |
|
MAC Address Table |
16K |
|
Jumbo Frame |
10K bytes |
|
LED Indicator |
Port: 1*Link/Act (Green) & 1*Speed Rate(Orange) |
|
1*One-key Fast Ring (Green), 1*One-key BSP (Green), 2*PWR (Red) |
|
|
Surge Immunity |
6KV per: IEC61000-4-5 |
|
ESD Immunity |
6KV contact discharge / 8KV air discharge |
|
Per: IEC61000-4-2 |
|
|
Power Supply |
External industrial DIN rail power supply |
|
Access Terminal |
4 PIN / 5.08mm |
|
Input Voltage |
12-48VDC |
|
Power Consumption |
≤12W（Full load） |
|
Operating Temperature |
-40-75℃ |
|
Storage Temperature |
-40-85℃ |
|
Operating Humidity |
5%-95%(Non-condensing) |
|
Shell |
IP40, metal shell |
|
Dimension（L×W×H） |
159mm×110mm×46.5mm |
|
Installation |
DIN rail or Wall mounted |
|
Weight |
749g |
|
Certification |
CE, FCC |
|
Designation |
Quantity |
|
Industrial Switch |
1pc |
|
DIN Rail Power Supply (Without by default) |
Optional |
|
DIN Rail Hanger |
1pc |
