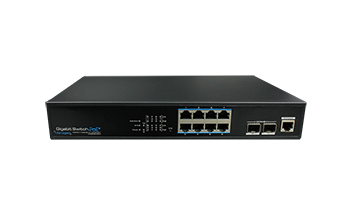

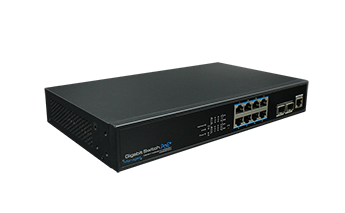

8-Port Gigabit Managed PoE Switch with 2 SFP Slots
Home Products PoE Commercial PoE/PoE+ L2/L3 Managed
 8-Port Gigabit Managed PoE Switch with 2 SFP Slots

8-Port Gigabit Managed PoE Switch with 2 SFP Slots

UTP3-GSW0802S-MTP150
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

UTP3-GSW0802S-MTP150, the full Gigabit managed PoE switch, adopts new generation high-performance hardware and software platform. It provides 8*10/100/1000Base-T RJ45 ports and 2*1000Base-X SFP ports. The port 1-8 support PoE complied with IEEE802.3af/at, with a 135W of total PoE power budget. Equipped with 4M large buffer chip and abundant L2 management function, including QVLAN, QoS, IGMP Snooping, Fast-Ring and PoE management etc, it can be used in security monitoring of enterprise, industrial park and other applications.


ADVANTAGES

• 8*10/100/1000Base-T RJ45 ports + 2*1000Base-X SFP ports.

• Support IEEE802.3af/at,single port is up to 30W.

• The total PoE power budget is up to 135W.

• Support 6KV surge protection and 8KV ESD protection on both port and power supply.

• 4M large buffer, meet the transmission requirement for 4K UHD.

• Support max 250 meters of transmission distance with auto speed reduction.


UTEPO
pic

The UTEPO full Gigabit managed PoE switches, adopt new generation high-performance hardware and software platform. The switches provide 8/16/24*10/100/1000Base-T RJ45 ports and 2/4/4*1000Base-X SFP ports. The port 1-8 / port 1-16 / port 1-24 support PoE complied with IEEE802.3af/at, with a 135W (8 ports) or 230W (16, 24 ports) of total PoE power budget. Equipped with large buffer chip and abundant L2 management function, including QVLAN, QoS, IGMP Snooping, Fast-Ring and PoE management etc, it can be used in security monitoring of enterprise, industrial park and other applications.

pic

● Gigabit RJ45/SFP Hybrid + Large Buffer

Providing 8/16/24*10/100/1000Base-T RJ45 PoE ports + 2/4/4*1000Base-X SFP ports, and 4M/12M/12M large buffer, the switches meet the requirement of 4K HD video monitoring and transmission requirements, and effectively reduces unfluent network and other phenomena.

pic

● One-key Smart Technology

pic

CCTV Mode

The downlink ports are isolated while communication, optimize flow control for more fluent video.

pic

Device Lock

Lock the authentication port device to prevent illegal access to equipment and make system more secure.

pic

Fast Ring

Start fast-ring group 1 (The first two Uplink ports are fast-ring group)

pic

Device Online

24-hour online monitoring device, if it occurs the crash fault, it would reboot automatically.

● 135W/230W/230W PoE Power Budget + PoE Scheduling

Support IEEE802.3af/at, total PoE power budget is up to 135W/230W/230W. User can set the configuration for PoE scheduling through WEB.

PoE Scheduling

With PoE schedule for your office, you can save the energy during off-duty hours.

pic Recycling

You can set your device to reboot at any specified time through PoE schedule, therefore, they will reduce the chance of IP camera or AP crash resulting from buffer overflow.

pic

● Abundant Layer 2 Management Function

Support layer 2 management function including QVLAN, QoS, IGMP, RSTP, Fast-ring, 802.1X authentication and PoE management etc.

pic

● Excellent Performance of Protection and Anti-interference

Support 6KV surge protection and 8KV ESD protection, ensuring the stable operation.

pic pic

8*GE PoE + 2*GF SFP

IEEE802.3af/at

Total PoE power budget is 135W

Support max 250 meters of transmission distance with auto speed reduction.

L2 management

Support 6KV surge protection and 8KV ESD protection

bot

16*GE PoE + 4*GF SFP

IEEE802.3af/at

Total PoE power budget is 230W

Support max 250 meters of transmission distance with auto speed reduction.

L2 management

Support 6KV surge protection and 8KV ESD protection

bot

24*GE PoE + 4*GF SFP

IEEE802.3af/at

Total PoE power budget is 230W

Support max 250 meters of transmission distance with auto speed reduction.

L2 management

Support 6KV surge protection and 8KV ESD protection

bot

Model

UTP3-GSW0802S-MTP150

Downlink Ports

8*10/100/1000Base-T RJ45 ports (PoE)

Uplink Ports

2*1000Base-X SFP ports (Mini-GBIC)

Console

1* Console port (RJ45 to R232)

WEB IP

Default IP: 192.168.1.200

Username:admin / Password:admin

Button

Reboot: short press

Reset: keep pressing at 5s or more

Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q, IEEE 802.1p   IEEE 802.3ad, IEEE 802.1D, IEEE 802.1X

Switching Capacity

20Gbps / non-blocking

Packet Forwarding Rate

14.9Mpps

Packet Buffer

4Mbit

MAC Address Table

8K

Jumbo Frame

10K bytes

PoE Standard

IEEE802.3af/at(PSE)

PoE Line Pair

1/2(+)3/6(-)

PoE Output Power

54V DC , Output PoE power for single port ≤30WMax PoE power budget≤135W

Surge Immunity

6KV Per: IEC61000-4-5

ESD Immunity

6KV Contact charge / 8KV Air charge

Per: IEC61000-4-2

Input Voltage

100~240VAC  50/60Hz,Auto-sensing

Power Consumption

≤150W( Including PoE)

Operating Temperature

-10-50℃

Storage Temperature

-40-85℃

Operating Humidity

5%-95% (No-condensation)

Dimension(L*W*H)

194mm*180mm*44.5mm

Weight

2.2kg

Software Parameter

Port Management

Support Port Enable/Disable;

Support Port Rate Settings;

Support Port Full-duplex Mode;

Support IEEE802.3x Flow Control;

Support Port Name Change;

VLAN

Support 4K VLAN

Support 802.1Q Protocol-Based VLAN;

Support Port-Based VLAN;

QoS

Support QoS;

Support 8-Level Priority management for switching;

Support WRR;

Support 802.1P and DSCP Priority;

Multicast Management

Support SNMP V1/V2/V3 Protocol;

Support IGMP Snooping;

POE Management

Support Total Power Consumption Control;

Support PoE ON/OFF;

Support Single Port Power Change and Port Output Priority;

Security

Support IP, MAC, Port, VLAN Combination and Binding;

Support MAC address auto-learning, aging& filter;

Support Port Isolation, Port Speed-Limited;

Support RSTP;

Support Fast-Ring;

Support 5 groups of 8-Port trunk;

Support RADIUS Authentication& 802.1X Authentication;

System Management & Maintenance

Support WEB Management, CLR Settings and telnet Settings;

Support CLR Settings;

Support FTP/TFTP/HTTP Web Upgrading;

Support Flow Calculate;

Support MAC address Form Search;

Support IP Address, DNS Server Change

Support Username& Password Change;

Support History Record, Journal management;

Support System settings Backup;

Designation

Quantity

UTP3-GSW0802S-MTP150

1

AC Power Cable

1

L-type Hanger

1

Mounting Kits

1

User Manual

1

Warranty Card

1
