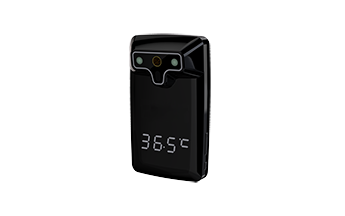

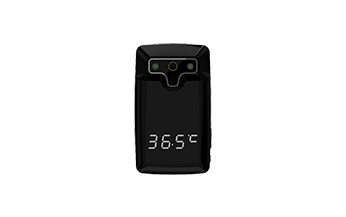

TS1501 Smart Doorbell

TS1501

Description
Specifications
Dimensions
Applications
Package
Download
Related Video
Related Product

Use industry-leading infrared temperature sensor, smart doorbell TS1501 achieves infrared temperature measurement, data display of body temperature, voice alarm, etc. It can read body temp measurement with quick, high precision. And it is applied to self-help temp measurement scene with few people and achieves single screening one by one.

ADVANTAGES

√ Built-in non-contact infrared temp measurement module to ensure accurate temp measurement.

√ Temperature measurement range is from 35 ℃ to 43 ℃ with accuracy ± 0.2 ℃.

√ Self-service temperature measurement to avoid cross infection.

√ Alarm when the temperature of the person being measured is abnormal.

√ Compact appearance, easy to install.

√ Built-in battery, up to 50 hours of battery life.

√ Support pole installation.

UTEPO

With the advanced automatic temperature correction algorithm and the latest AI voice algorithm, the smart doorbell TS1501 can measure the body temperature of the passing personnel in real-time and accurately. There is no need to arrange a special person to be on duty to measure the temperature of the past flow of people. The humanized design has an overtemperature warning prompt, which can prevent personnel from contaction and cross-infection. The product is compact, precise, fast, and easy to install. It is widely used in schools, hotels, public transportation, living communities, shopping malls, office buildings, offices, individual residences, and other occasions with dense traffic.

Key Feature

01 / One second Test Without Waiting

Fast measurement to palm, wrist, or forehead temperature, high passage efficiency, avoid cross-infection caused by crowded.

02 / Accurate Temp. Measurement & Voice Alarm

Use the infrared probe powerful AI voice technology and excellent temp. recognition chip, complete temp. measurement and voice broadcast in 1 second.

03 / Built-in Battery and Energy-saving Display Design

Built-in 2000 mAh rechargeable polymer battery, energy-saving backlight screen.

04 / Compact & User-friendly Design

● Compact size and portable, you can install it even without wiring.

● Raised front design prevents users from touching the temperature measurement section.

05 / Doorbell and Infrared Thermometer Switchable

You can change the working mode from doorbell to the infrared thermometer through quick pressing power button at three times within 1 second after power on.

Note: How To Ensure The Accuracy

The infrared thermometer is used to test the surface temperature of the human body, with the advantages of fast response time, non-contact, safe use, and long service life. There are three major series of non-contact infrared thermometers, portable, online, and scanning. The wavelength of infrared is between 0.76 ~ 100μm. And according to the range of wavelengths, the thermometer's type can be divided into near-infrared, mid-infrared, far-infrared, extreme far infrared.

● Environment Temperature: 15℃-35℃ (Recommended)

● Environmental Radiation: You can use the shelter/covering to eliminate the indirect interference of environmental radiation.

● Electromagnetic Interference: Please keep the thermometer away from potential sources of electrical interference, such as the electric equipment with large load variations.

● Measuring Angle: Please keep the instrument perpendicular to the surface of the measured object to ensure accurate measurement.

● Temperature Measurement Distance: Please keep the measured object in the field of measuring view. The smaller the object is, the closer it should be.

Diagram

Installation

Application

Product Parameters

Model

TS1501


Power Supply

3.7V 2000mA lithium battery

Product Size

120 * 70 * 34mm

Product Weight

118g

Measuring Distance

3~15cm

Measurement Accuracy

35℃-43℃ ± 0.2℃

Measuring Environment

0℃-40℃

Temperature in

℃ / ℉

Broadcast Language

Chinese / English

Working Time

≥ 50h

Charging Time

≤ 2.5h

Item	Specification
CPU	ARM Cortex-m
Temperature Display	LED digital Display
Sensor	Thermopile infrared temperature sensor
Temperature Measurement	Rang: 35°C ~43°C, accuracy: ±0.2°C
Detection Distance	3-15cm
Respond Time	1~3s
Alarm Method	Warning ring, LED red indicator
Power Consumption	≤0.5W
Working Temperature	0°C ~40°C（Indoor）
Working Humidity	0%-95% RH（Non-condensing）
Dimensions（L×W×H）	34mm×70mm×120mm
Weight	118g

Item	Model	QTY	Note
Machine body	TS1501	1
Metal magnetic sheet	/	2	Only with magnetic suction version
3M Sticker	/	4	Only with magnetic suction version
USB cable	/	1	1 Meter, Micro USB charging cable
User manual	/	1

Datasheet TS1501 User Manual TS1501
