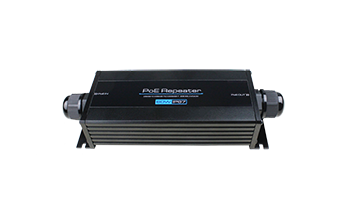

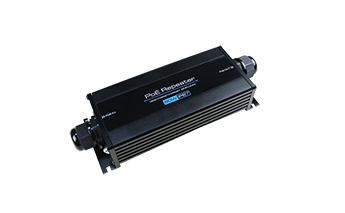

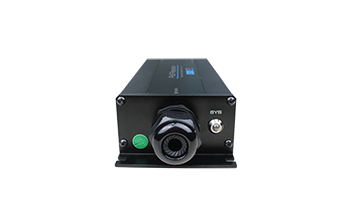

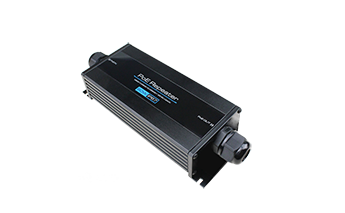

 Industrial 1-Port 802.3bt PoE++ (60W) to 1-Port 802.3bt/at/af Gigabit PoE Repeater

Industrial 1-Port 802.3bt PoE++ (60W) to 1-Port 802.3bt/at/af Gigabit PoE Repeater

UTP7201GR-BTPOE(60)
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video

Industrial 1-Port 802.3bt PoE++ (60W) to 1-Port 802.3bt/at/af Gigabit PoE Repeater, which uses advanced network cable drive and power supply technology to extend 1000Mbps Ethernet signal to 100 meters, greatly extending the transmission distance and providing 50~57V PoE power at the same time, the PoE output power can be up to 58W. IP67-rated, industrial grade enclosure can meet requirement of harsh environment, working temperature can be up to -40~75℃. it is widely used in security surveillance and network project.


Advantages

Provide 10/100/1000Mbps Ethernet Ports

√ 1* 802.3bt PoE input port, 1*802.3bt/at/af PoE output port.

√ Utilizes the advanced network cable drive technology

√ The longest distance can be up to 100 meters.

Support PoE Power Supply

√ Compatible with end-span and mid-span, PoE output port auto detect powered device and the output power.

Industrial Grade Repeater

√ IP67-rated industrial grade enclosure.

√ Working temperature can be up to -40~75℃.

Easy to Use

√ Plug and play.

√ Could be installed on the wall and desk-top.

√ No need for RJ45 assembly, special designed waterproof joint allows RJ45 pass through directly.


UTEPO
pic
pic
The UTEPO industrial IP67 802.3bt PoE repeaters are designed for point to point and point to multipoint PoE application. The PoE repeaters can obtain 60W/90W PoE max from input port by PoE switch or PoE injector, and supply max power up to 58W/81W (50V~57V), extending both data and PoE to additional 100 meters over cat.5e/6/7 cables. Also, the repeaters are compatible with PoE standard IEEE 802.3af/at/bt, and can automatically distribute PoE on the two output ports. In addition, the repeaters provide simple and flexible solutions for security industry, wireless industry, LED light industry, etc.
Feature
01 / Compatible with IEEE 802.3af/at/bt.
Obtaining 60W/90W PoE max from input port by PoE switch or PoE injector, under the distance of over 100 meters, the repeaters can supply max power up to 58W/81W (50V~57V) to IP camera, AP, PTZ camera, LED light, all-in-one PC, etc.
pic
02 / Support Automatic PoE Power Distribution.
The repeaters (1*PoE Input + 2*PoE Output) support automatic PoE power distribution. And the repeaters would preferentially supply power to the first connected device when the total PoE budget is not enough.
pic
03 / Plug and Play, Easy Installation.
The repeaters support easy installation of desktop or wall-mounted by simple plug and play. Also, you can put RJ45 plug through the joint while it won't influence the water-proof function.
pic
04 / Adapt to the Harsh Environment.
With the industrial IP67 case, the repeaters provide excellent performance against electromagnetic interference, can protect themselves from dust and water, and keep normal operation under the temperature range from -40℃ to 75℃.
pic
Application
With UTEPO PoE repeaters, you can extend and expand network infrastructures without changes to your existing network system, or having to add any cables and other related components and parts.
pic
pic
Related Models
pic
1*PoE Input + 1*PoE Output
Support 60W max input PoE power.
Max output PoE power is 58W.
IP67
Operating temperature: -40℃ ~ 75℃
6kV surge immunity, 8kV ESD immunity
pic
pic
1*PoE Input + 1*PoE Output
Support 90W max input PoE power.
Max output PoE power is 81W.
IP67
Operating temperature: -40℃ ~ 75℃
6kV surge immunity, 8kV ESD immunity
pic
pic

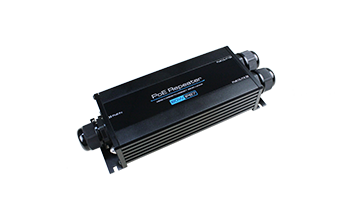

1*PoE Input + 2*PoE Output
Support 60W max input PoE power.
Max output PoE power is 58W.
IP67
Operating temperature: -40℃ ~ 75℃
6kV surge immunity, 8kV ESD immunity
pic
pic
1*PoE Input + 2*PoE Output
Support 90W max input PoE power.
Max output PoE power is 81W.
IP67
Operating temperature: -40℃ ~ 75℃
6kV surge immunity, 8kV ESD immunity
pic

Item

UTP7201GR-BTPOE(60)

Ethernet Ports

PoE Input Port

10/100/1000Base-TX RJ45, IEEE 802.3bt PoE Input

Input Power 50~57V DC, Max 60W

PoE Output Port

1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at/af PoE Output

Output Power: Max 58W in total, 58W@ 101m, 50W@ 200m

Cascade Connection

Support 3 grade

PoE

PoE Standard

IEEE 802.3 af/at/bt

PoE Power Supply Type

Mid-span and End-span

PoE Pin Assignment

1/2(+), 3/6(-),4/5(+), 7/8(-)

Switch Property

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab/z, 10/100/1000Base-T and 1000Base-X, IEEE 802.3 X.

Forwarding Modes

Store and Forward

Transmission Distance

100m

MAC Table

8k

Switching Capacity

4Gbps

Packet Forwarding Rate

2.98Mpps

Flow Control

IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

Jumbo Frame

10kB

Environment

Surge Immunity

6kV, Standard: IEC6000-4-5

ESD Protection

6kV 1a Contact Discharge Level 3,8kV 1b Air Discharge Level 3, Standard: IEC61000-4-2

Protection Level

IP 67

Operating Temperature

-40℃~75℃

Storage Temperature

-40℃~85℃

Operating Humidity

0~95% (Non-condensation)

Physical Parameter

Dimensions (W*D*H)

193mm*75mm*38mm

Gross Weight

558g

Net Weight

423g

Material

Aluminum

Certifications

Certifications

CE, FCC, RoHS

60w poe repeater, poe extender
poe extender

Item

Quantity

PoE Ethernet Repeater

1

Waterproof Joint

2

User Manual

1
