Overview
This series of IP67 Gigabit 802.3bt PoE Ethernet repeaters can extend 1000Mbps Ethernet signal to 100m and provide 50~57V standard PoE for powered devices. This series of products are industrial level, with IP67 waterproof design and wide working temperature -40~75℃. They can withstand harsh environmental tests and are suitable for security monitoring and network engineering.
This series contains three models:
• UTP7201GR-BTPOE(60): 1 PoE output port, maximum input power 60W.
• UTP7202GR-BTPOE(60): 2 PoE output ports, maximum input power 60W.
• UTP7202GR-BTPOE(90): 2 PoE output ports, maximum input power 90W.
Features and Highlights
• Provide 10/100/1000Mbps Ethernet ports
• UTP7201GR-BTPOE(60): 1* input port, 1* output port.
• UTP7202GR-BTPOE(60)/(90): 1* input port, 2* output ports.
Great PoE Compatibility
• All ports comply with IEEE802.3af, IEEE802.3at, IEEE802.3bt.
• PoE output port can auto-detect the powered device and the output power.
• Automatically distribute PoE for 2 PoE output ports as the demand of the powered device.
• Extends both Ethernet data and PoE to an additional 100 meters.
Industrial Case and Installation
• Waterproof IP67-rated aluminum housing.
• Wall-mount design.
• Supports 6kV surge immunity and 8kV ESD protection.
• Wide working temperature: -40~75℃.
• No external power cable required for installation .
• Plug and play installation.
Strong Layer 2 Features
• Supports 8k MAC addresses, which allows the connection of more devices.
• 10kB jumbo frame support in 1000Mbps duplex mode.
• Automatic address learning and address aging.
• IEEE 802.3x pause frame for full-duplex, backpressure for half-duplex.
|
|
|
|
|
|
|
|
The
UTEPO waterproof IP67 industrial BT PoE repeaters are designed for point to point and point to
multipoint PoE application. The PoE repeaters can obtain 60W/90W PoE max from input port by PoE
switch or PoE injector, and supply max power up to 58W/81W (50V~57V), extending both data and PoE
to additional 100 meters over cat.5e/6/7 cables. Also, the repeaters are compatible with PoE
standard IEEE 802.3af/at/bt, and can automatically distribute PoE on the two output ports. And
these repeaters come with a waterproof operating LED indicator, providing a user-friendly
experience. In conclusion, the repeaters provide simple and flexible solutions for security
industry, wireless industry, LED light industry, etc
|
|
|
|
|
|
|
|
|
|
|
|
|
01 / Compatible with IEEE 802.3af/at/bt
|
Obtaining 60W/90W PoE max from input port by PoE switch or PoE injector, under the distance of over
100 meters, the repeaters can supply max power up to 58W/81W (50V~57V) to IP camera, AP, PTZ camera,
LED light, all-in-one PC, etc.
|
|
|
|
|
|
|
|
|
|
|
|
02 / Support Automatic PoE Power Distribution
|
The repeaters (1*PoE Input + 2*PoE Output) support automatic PoE power distribution. And the
repeaters would preferentially supply power to the first connected device when the total PoE budget
is not enough.
|
|
|
|
|
|
|
|
|
|
|
|
03 / Plug and Play, Easy Installation
|
The repeaters support easy installation of desktop or wall-mounted by simple plug and play. Also, you
can put RJ45 plug through the joint while it won't influence the water-proof function.
|
|
|
|
|
|
|
|
|
|
|
|

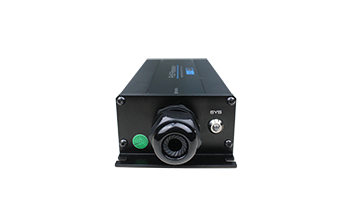

04 / New Design with a Waterproof Operating LED Indicator
|
These repeaters come with a waterproof operating LED indicator, providing a user-friendly experience.
|
|
|
|
|
|
|
|
|
|
|
|
05 / Adapt to the Harsh Environment
|
With the industrial IP67 case, the repeaters provide excellent performance against electromagnetic
interference, can protect themselves from dust and water, and keep normal operation under the
temperature range from -40℃ to 75℃.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
With UTEPO PoE repeaters, you can extend and expand network infrastructures without changes to your
existing network system, or having to add any cables and other related components and parts.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
UTP7201GR-BTPOE(60)
|
● 1*PoE Input + 1*PoE Output
|
● Support 60W max input PoE
|
● power.
|
● Max output PoE power is 58W.
|
● IP67
|
● Operating temperature:
|
● -40℃ ~ 75℃
|
-
-
